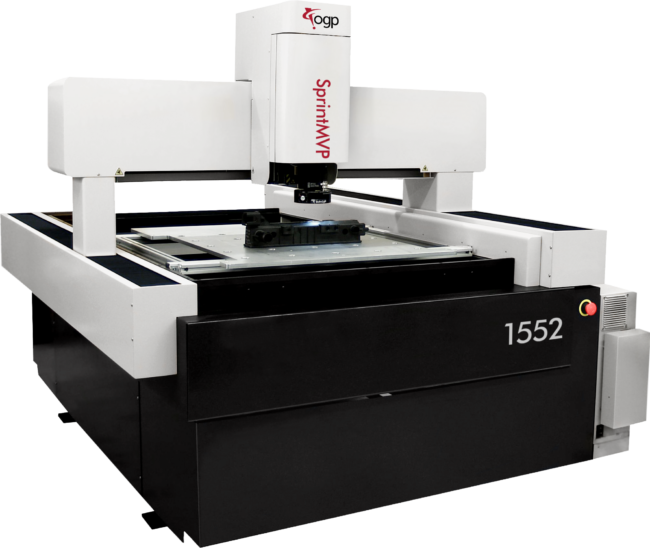

SprintMVP 1500 | 1552

Automatic, non-contact video measurement systems with moving bridge design

Open Work Area

Optics mounted on a moving bridge — part remains stationary and easily accessible

Flexible Optics

Motorized zoom lens with high resolution digital color camera

XYZ Travel (mm) Standard

1500 – 900 x 1500 x 200
1550 – 1250 x 1500 x 200
1552 – 1500 x 1500 x 200

More XYZ travel info >

SprintMVP™ 1500-1552 floor model measurement systems offer fully automatic, non-contact video measurement for very large parts or groups of parts. An impressive list of standard features, including solid granite bases, make these systems a great value and are ideal for accurate, repeatable measurements. SprintMVP 1500-1552 measurement systems offer:

  • Moving bridge design, for convenient part loading and fixturing
  • Eleven different large capacity travel ranges to choose from
  • Motorized zoom lens system with high resolution digital color camera
  • Full function Measure-X® metrology software for fully automatic operation

Technical Data

XYZ Travel (mm)

Standard

1500 – 900 x 1500 x 200
1550 – 1250 x 1500 x 200
1552 – 1500 x 1500 x 200

Optional

1500 – 900 x 1800 x 200
1500 – 900 x 2000 x 200
1550 – 1250 x 1500 x 300
1550 – 1250 x 1800 x 200
1550 – 1250 x 2000 x 200
1552 – 1500 x 1500 x 300
1552 – 1500 x 2000 x 200

Optics

Standard

6.5:1, 10 position motorized zoom lens

Optional

Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

Illumination

Standard

LED VectorLight™ SP programmable ring light with 6 rings and 7 sectors, LED backlight, LED square-on surface light

Optional

LED VectorLight™ SF programmable ring light with 6 rings and 8 sectors and LED square-on surface light (reduced working clearance)
