Which c-vision Model is Right for Your Business?

c-vision Model Comparison

Return to Main c-vision Page

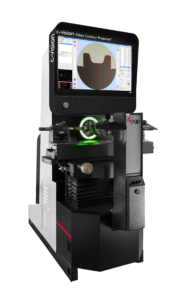

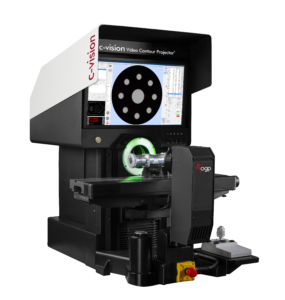

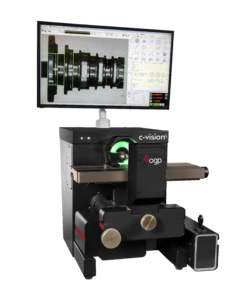

Featuresc-vision Litec-vision Benchtopc-vision Floor Model
XYZ Travel
Standard12” x 5” x 1.25”15” x 6” x 2”15” x 9” x 2”
Optional-18” x 6” x 2”15 x 10” x 2”, 18” x 9” x 2”, or 18” x 10” x 2”
Drive System
Motorizedxxx
Optical SystemTelecentric, upright and un-reversed
Optical Lens
StandardFixed Mag with 1.88" Field of View and digital zoomMotorized Dual Mag turret with 3.0" low mag Field of View and 4x high mag lensMotorized Dual Mag turret with 4.0" low mag Field of View and 4x high mag lens
Optional--10x high mag lens in lieu of 4x
Maximum Load Capacity45 lb65 lb350 lb
Helix Angle Range
Standard+/- 6.5 degrees+/- 7.5 degrees
Optional+/- 7.5 degrees
Throat Clearance10”10”16”
Swing Away Lamphouse-**
Illumination
Profilexxx
Oblique***
Coaxial-**
Software
Measure-X™ Measurexxx
Measure-X™ Comparexxx
Measure-X™ Analyze***
OGP EVOLVE® SPC***
X – Standard; * – Optional
