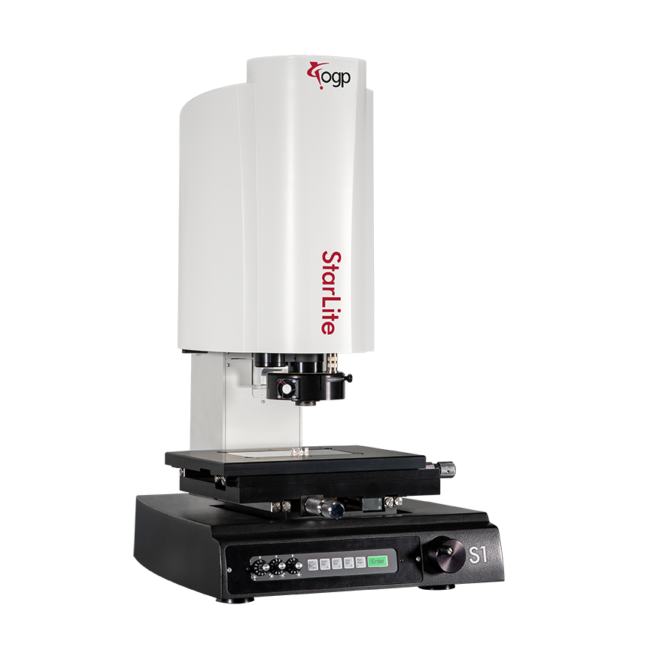

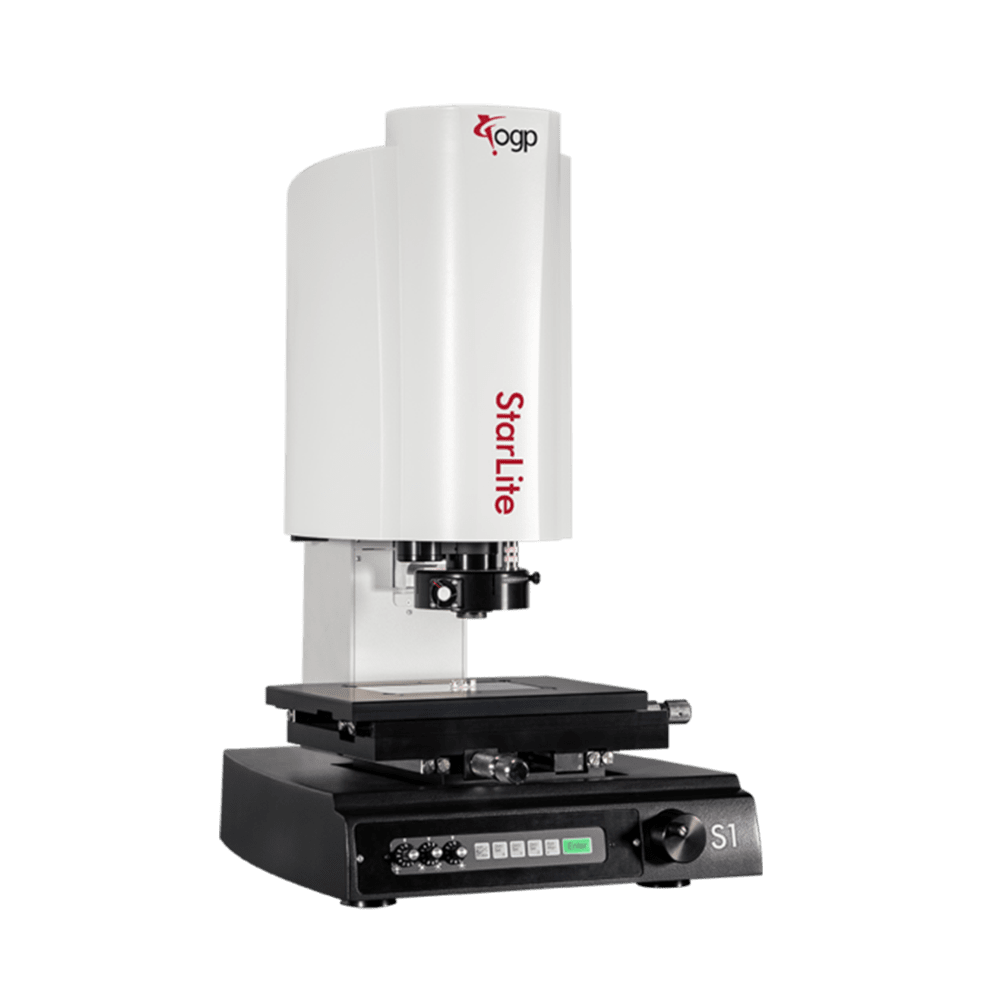

StarLite S1
Semi-Automatic, Compact, Workbench System with IntelliCentric-S Optics
XYZ Travel
Standard: 150 x 75 x 125 mm

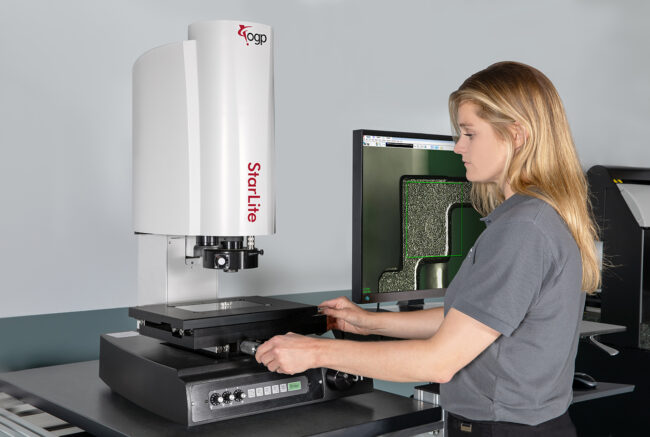

StarLite S1 is compact, reliable video measurement system combining fully automatic measurements with easy to use manual stage motion.
S1 features a robust stage and the high-performance IntelliCentric-S Optical System, providing the fast and repeatable accuracy manufacturers demand on both the shop floor and in the metrology lab. StarLite S1 offers:
- High-performance IntelliCentric-S Optical System, combining fixed-lens optics and VIRTUAL ZOOM™ technology for high resolution imagry
- 3-axis (X, Y, Z) measurement capability
- Programmable all LED backlight, square-on surface light, and SmartRing programmable ring light for the ultimate lighting flexibility
Technical Data
XYZ Travel
Standard
150 x 75 x 125 mm
Optics
Standard
Fixed optical magnification with VIRTUAL ZOOM, S 8.10 standard lens
Optional
S 16.20 Wide Field-of-View / Long Working Distance Replacement Lens
S 4.5 High Magnification Replacement Lens
Illumination
Standard
Substage LED profile, coaxial LED surface, SmartRing LED ring light
Optional
Conical SmartRing (included with S 4.5 lens)
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 150 x 75 x 125 mm | |
| XYZ Scale Resolution | 1.0 μm | |
| Drive System | Manual with coarse and fine 3-axis control (X, Y, Z) | |
| Worktable | Anodized with fixture holes and removable stage glass; 7 kg recommended max payload | |
| Optics1 | Fixed optical magnification with VIRTUAL ZOOM, S 8.10 standard lens | Replacement Lens: S 16.20 Wide Field-of-View/Long Working Distance, S 4.5 High Magnification |
| Illumination | Substage LED profile, coaxial LED surface, SmartRing™ LED ring light (green) | Conical SmartRing (included with S 4.5 lens) |
| Metrology Camera | 6 megapixel color digital metrology camera | |
| Field of View | 7.0 mm x 5.2 mm | S 16.20: 14.0 x 10.4 mm S 4.5: 3.5 mm x 2.6 mm |
| Minimum Feature Size2 | 10 µm | S 16.20: 20 µm S 4.5: 5 µm |
| Working Distance | 62 mm | S 16.20: 110 mm S 4.5: 31 mm |
| Software | Measure-X metrology software | Productivity Software: Measure-X Analyze, OGP EVOLVE® Software (Design, Manufacturing, SmartProfile®, SPC) Offline Software: Measure-X |
| System Controller | Windows® based with up-to-date processor and onboard networking/communication ports | High-Performance Controller |
| Controller Options | 24” flat panel LCD monitor or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Accessories | Footswitch, Digital I/O Automation Interface | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400 W | |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1.0 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001 g below 15 Hz | |
| XY Area Accuracy | E2 = (4.5 + 8L/1000) μm | |
| Z Linear Accuracy | E1 = (7.0 + 8L/1000) μm | |
- Accuracy is evaluated with an OGP compensation and verification procedure where “L” is measured length in millimeters. Specifications apply within the rated environment. Standard optical specifications apply at the highest magnification of the
standard configuration. XY Accuracy applies with an evenly distributed load up to 5 kg in the standard measuring plane. The standard measuring plane is defined as a plane that is within 25 mm of the worktable surface. Depending on load
distribution, accuracy at maximum payload may be less than standard.
Lenses can be manually interchanged to change magnification and working distance.
2. Based on width measurement of USAF resolution test chart in best focus at the highest magnification with profile illumination. For reference only.
Last updated: June 2026

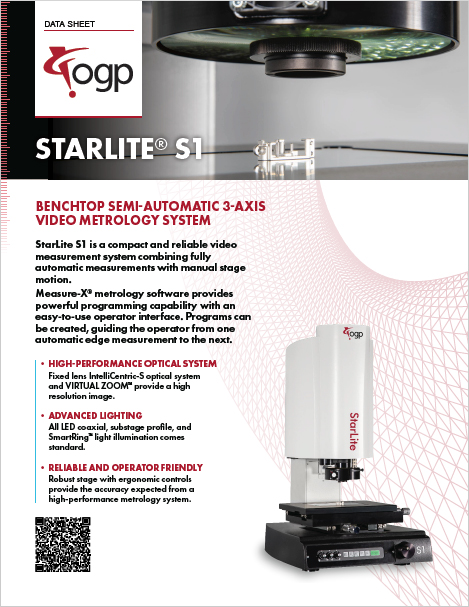

Downloads
