Options & Accessories

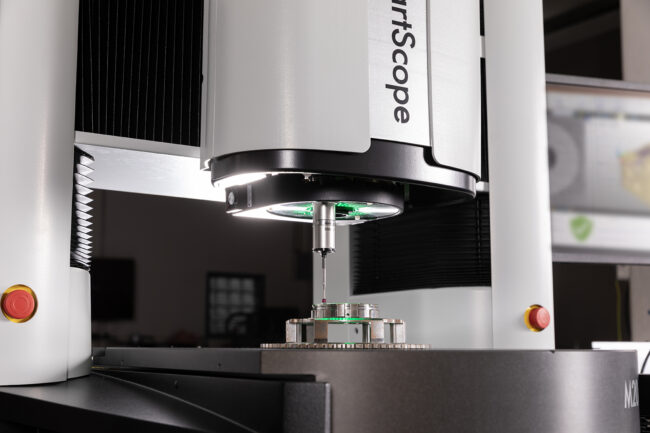

Touch Probe Options

By using a scanning probe or by single point probing with a touch trigger probe on select QVI video and multisensor measuring systems, you can access features that are difficult for video measurement, or beyond the range of other sensors. Scanning provides data on simple and complex surface contours.

Touch Trigger Probe

Touch Trigger Probe

Provides enhanced access for difficult-to-reach part features, a point at a time.

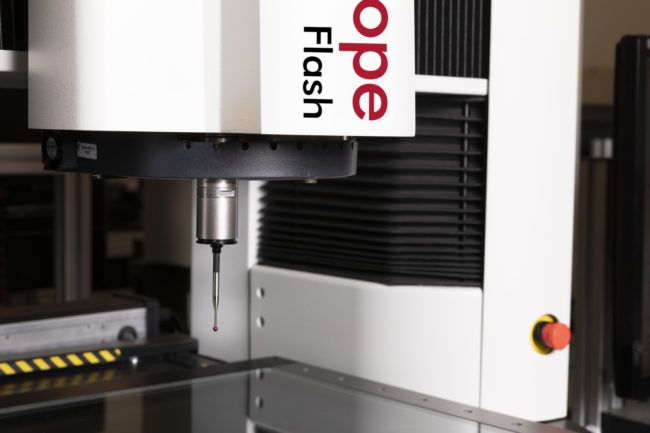

Scanning Probe

Scanning Probe

Automatically acquires data points between user-defined start and end points - regardless of surface complexity - even when the system has no prior knowledge of the path between those points.

Micro-Probe Options

With new manufacturing technologies parts are being manufactured with increasing complexity in smaller sizes of exotic materials, with tighter tolerances. We respond with innovative probing technologies available on select multisensor measurement systems.

Feather Probe

Feather Probe

Its miniature stylus can acquire surface data points with only milligrams of pressure on the surface being probed.

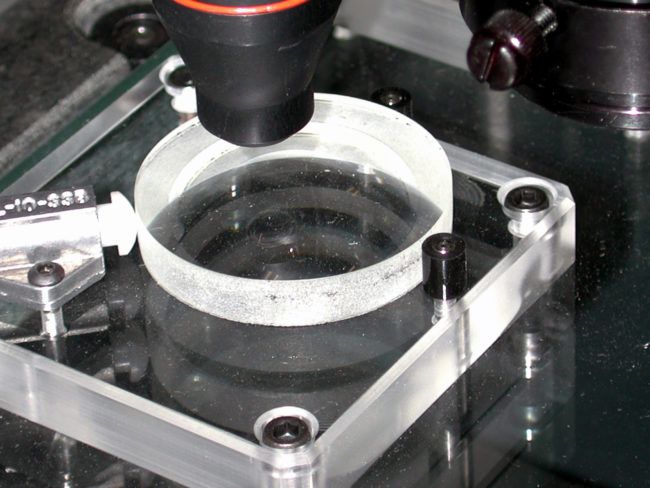

Rainbow Probe

Rainbow Probe

An electro-optical device that measures by analyzing changes in the optical spectrum as a function of part-to-probe spacing.

Interposer

Interposer

A combination of touch probe and video technology, Interposer is used to determine the exact location of a contacted edge.

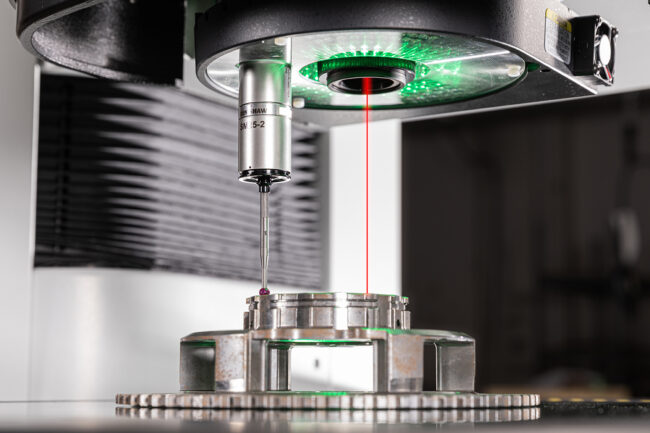

Laser Options

Laser options for QVI measurement systems provide non-contact scanning and high accuracy focus points as part of multisensor measurement routines. We offer a number of laser options for our multisensor measurement systems.

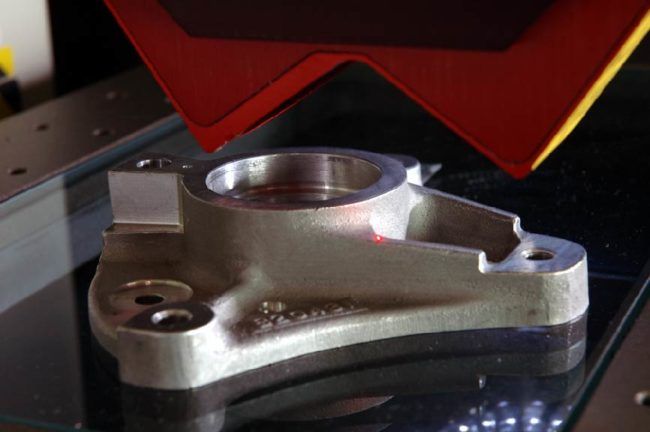

DRS Laser

DRS Laser

Determines surface heights, through laser triangulation.

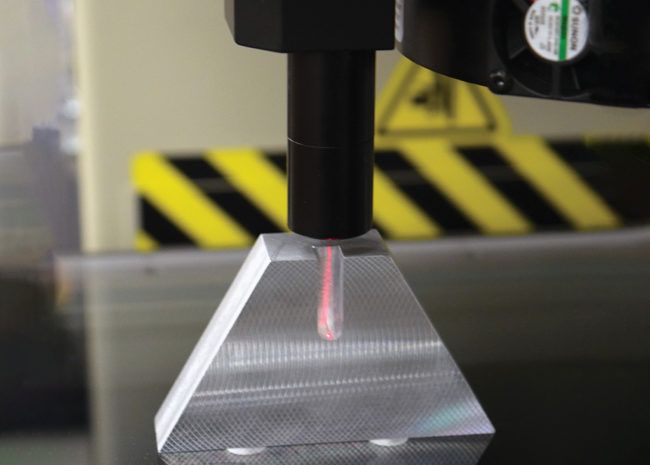

TeleStar Probe

TeleStar Probe

Self-contained off-axis partial coherence interferometric range sensor for surface contour measurement.

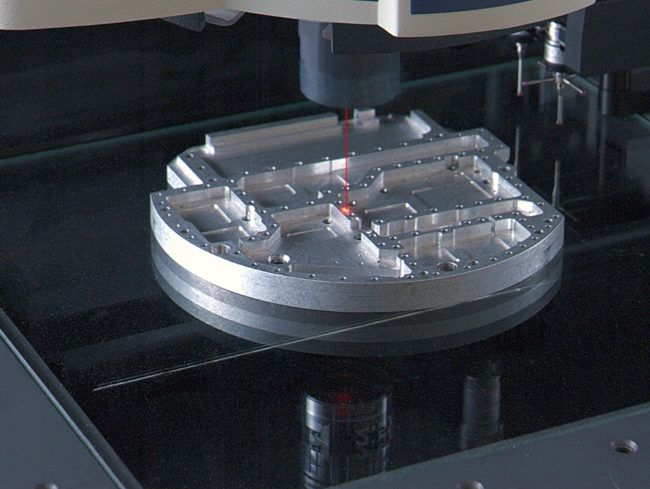

TTL Laser

TTL Laser

An integrated laser option for select QVI measurement systems.

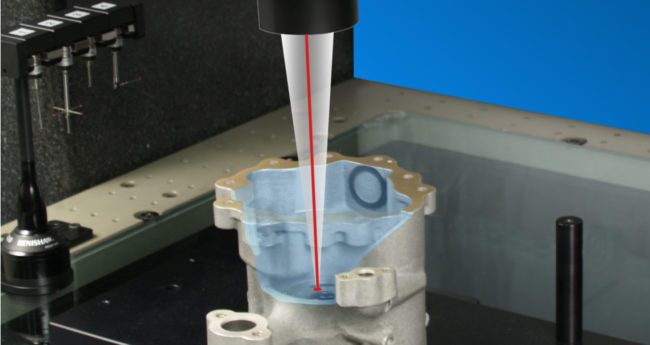

TeleStar Plus TTL Laser

TeleStar Plus TTL Laser

Long working distance, high resolution interferometric range sensor

Rotary Indexers

Symmetric parts and parts with important features on many sides can be fully characterized on our measurement systems with rotary indexers. Available with different capacities and resolutions, as well as simple and compound configurations, rotaries allow complete 4 and 5 axis measurement in a single setup.

Micro-Theta Rotary (MTR)

MTR

Rotary positioning with 2 arc second resolution for any QVI measurement system equipped with MeasureMind® 3D MultiSensor or ZONE3 metrology software.

Miniature Servo Rotary (MSR)

MSR

A compact angular positioning device designed for use with select QVI measurement systems.

Heavy Duty Rotary (HDR)

HDR

Bring true 4th axis measuring to select QVI measurement systems for heavy parts.

High Precision Rotary (HPR)

HPR

A high-precision, rotary air bearing, programmable angular positioning device for select QVI measurement systems.

Dual-Axis Rotaries

Dual-Axis Rotaries

Mount two rotary indexers together to provide rotary motions in two perpendicular axes.

Light Illuminators

Are difficult imaging requirements preventing you from getting the most from your video measuring system? SmartRing accomplishes this difficult task by providing light that is programmable for both direction and incidence angle. TruLight® LED illumination transforms optical comparators into modern, high-tech measuring systems.

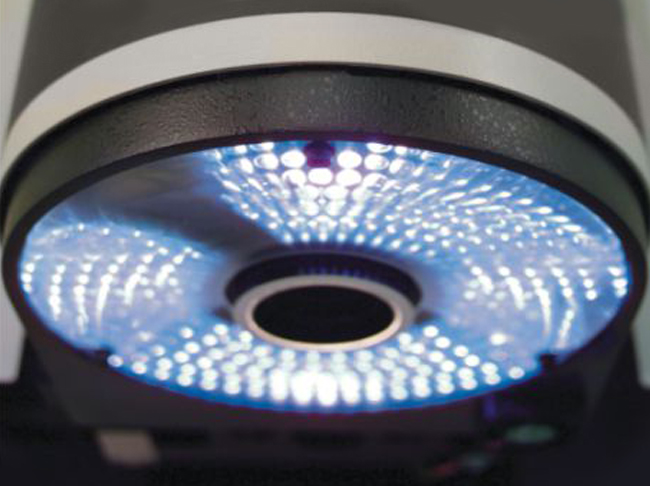

SmartRing Light Illuminators

SmartRing Light Illuminators

Take a close look at the SmartRing light from QVI.

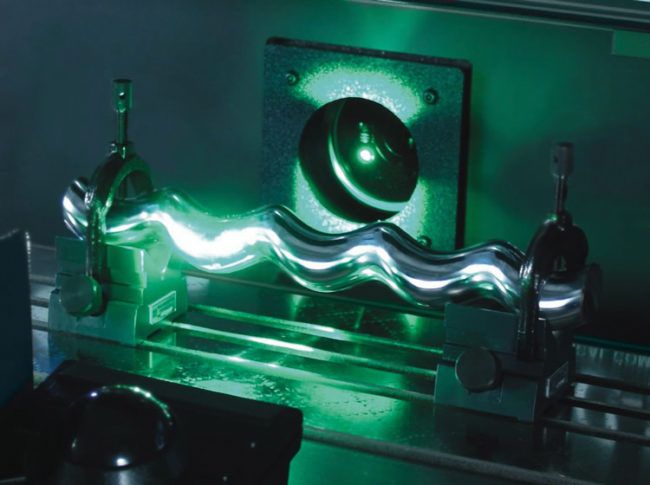

TruLight Illumination

TruLight

Exclusive TruLight® LED illumination has transformed QVI optical comparators into modern, high-tech measuring systems.

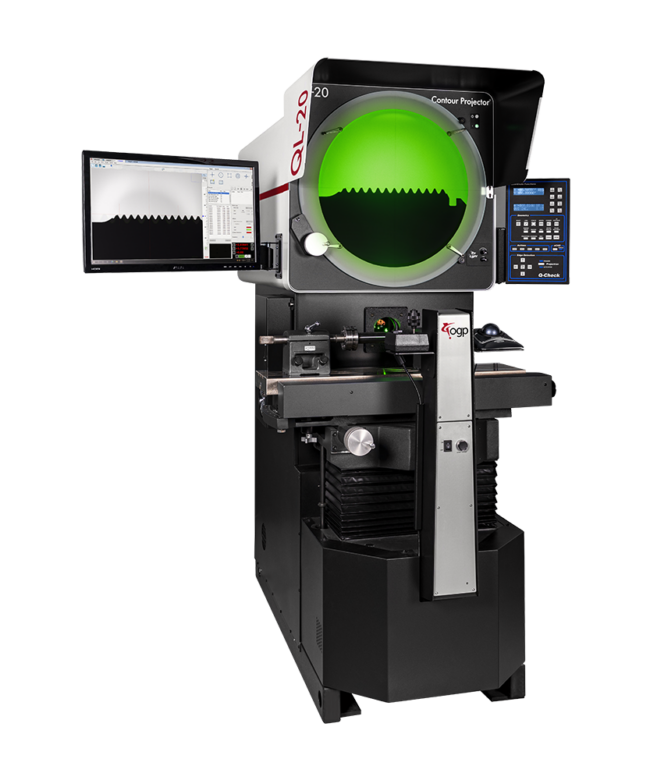

Contour Projector and c-vision Options & Accessories

Our technologies and options set our contour projectors apart from most traditional optical comparators, allowing you to extend the capabilities of your system, with digital imaging, virtual chart gages, edge detection, and more.

EdgeScan

EdgeScan

EdgeScan™ - internal automatic edge detection

Projectron

Projectron

Projectron™ - internal automatic edge detection

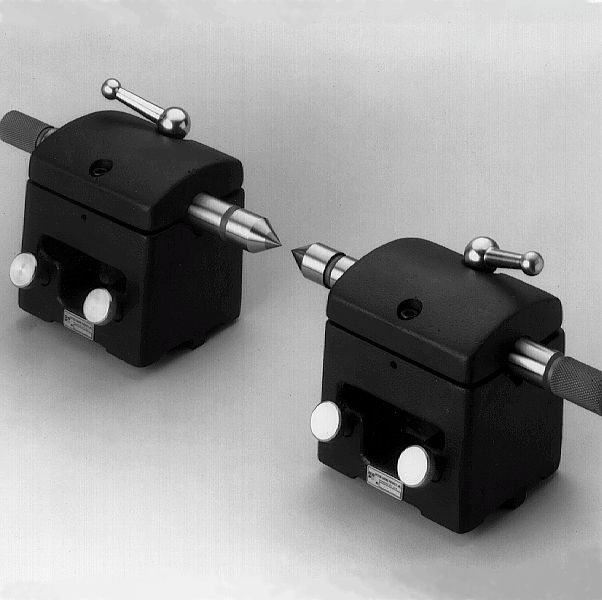

Fixtures

Fixtures

QVI offers a range of fixtures that allow you to easily stage every part you inspect on your optical comparator or profile projector.

ImageCapture

ImageCapture

ImageCapture™ - for saving screen images and video

VidiProbe

VidiProbe

VidiProbe™ - video measurement and automation package

Digital Readouts

Digital Readouts

Digital Readout Controllers

Overlay Charts

Overlay Charts

Optical Comparator Charts
