Miniature Servo Rotary (MSR)
Compact angular positioning device offering mounting flexibility in orienting the rotational axis

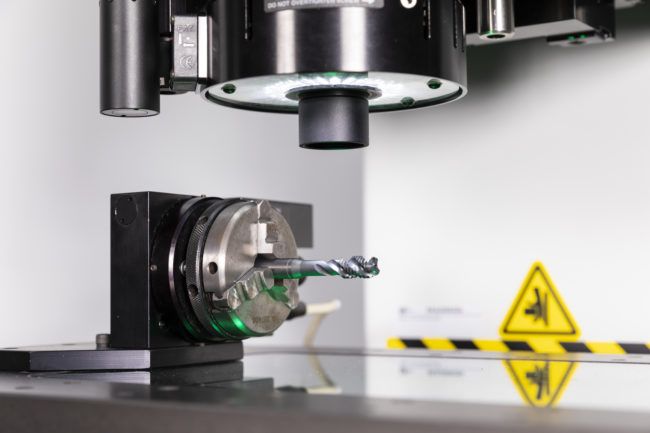

The Miniature Servo Rotary (MSR™) is a compact angular positioning device. Tightly integrated with OGP metrology software, MSR offers mounting flexibility in orienting the rotational axis.
- Automatically rotate parts to present a different view to the measuring system, reducing the need for multiple part setups. Part rotation can be a step in OGP metrology software measurement routines, eliminating the need to manually refixture a part
- Mounting bracket allows horizontal or vertical axis applications
- Combine MSR and MTR to provide rotary motions in two perpendicular axes
Technical Data
Position Repeatability
± 30 arc seconds
Position Accuracy
± 2 arc minutes
