Dual Rotary Indexers

Automatic part rotation to present features to available sensors at set angles for subsequent measurement

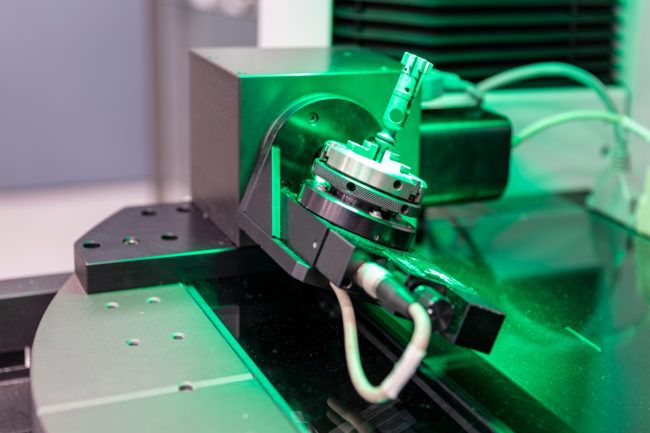

Mount two rotary indexers together with their axes perpendicular to one another to add two more axes of part positioning to select SmartScope® systems.

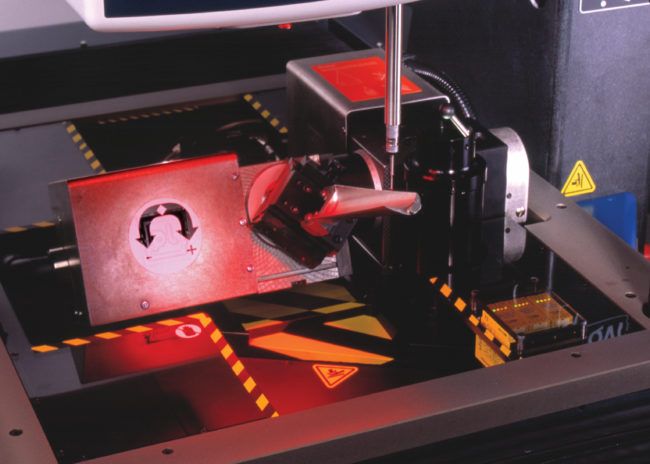

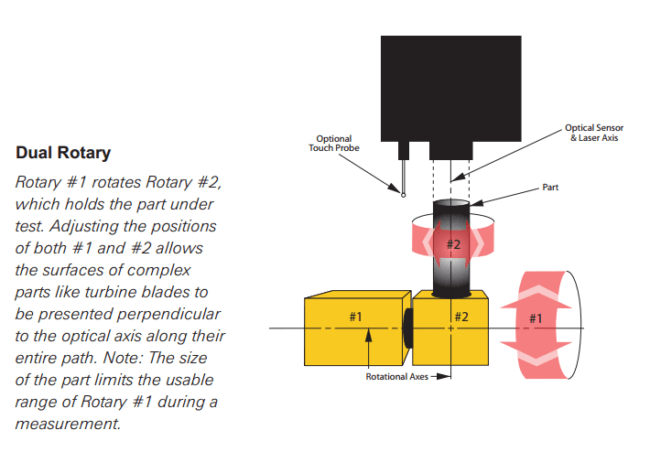

The part under inspection is attached to the secondary rotary, which is mounted to the primary rotary. The part can be rotated in two different axes to provide a means of bringing features with compound angles into the line of sight of the optical sensor axis and within the reach of available laser sensors or touch probes for measurement.

Several combinations of rotaries can be configured, depending on the application and the available measurement envelope of the machine.

Technical Data

MicroTheta Rotary / Miniature Servo Rotary (MTR/MSR)

Combine MicroTheta Rotary and Miniature Servo Rotary indexers on a benchtop measuring machine to position complex, lightweight parts during a measurement routine.

Heavy Duty Rotary / MicroTheta Rotary (HDR/MTR)

Using Heavy Duty Rotary and MicroTheta Rotary indexers during a measurement routine allows for complex measurements on small parts.

Dual Heavy Duty Rotary (Dual HDR)

The dual Heavy Duty Rotary configuration allows for the rotation of heavy parts while maintaining optimum positional accuracy.
