Large Field-of-View 3D Multisensor Systems

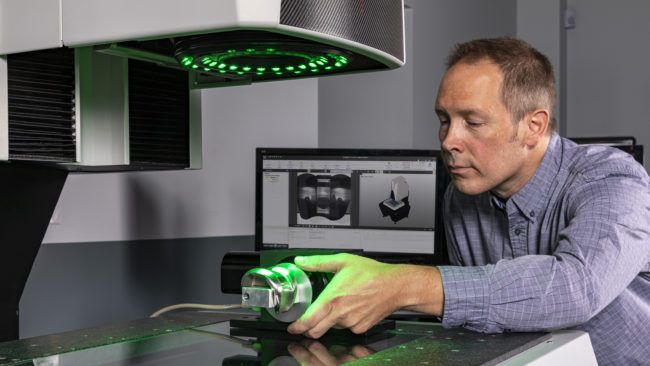

Fusion® systems are innovative, high-speed, 3D multisensor measurement systems that combine an exceptional large field-of-view (LFOV) optical system with multisensor flexibility, to form a uniquely productive metrology system family.

The heart of Fusion systems capability lies in the telecentric large field-of-view optics. Fusion offers dual optical magnifications: low with 100 mm viewing area and high for small feature measurements and autofocus — each telecentric for image accuracy throughout the depth of field.

Advanced design principles and FOV non-linear calibration allow Fusion systems to measure many features in a large FOV with the same accuracy as a small FOV on a traditional video measurement system. Large field optics allow a wide area to be imaged with high accuracy, while feature extraction can instantly process and identify all features and dimensions within the scene with no need for a pre-programmed measurement routine.

Benefit
Feature
High Productivity100mm FOV combined with a high-speed transport delivers fast measurement throughput
3D CapabilityPowered by ZONE3 metrology software, Fusion allows for 3D and CAD-based measurement with all sensors
Multisensor capability over the full stage travel All sensors are placed precisely on the optical centerline by the patented rotational deployment mechanism
Intelligent Image ProcessingFull field image processing and high-speed cameras allow entire scenes to be measured instantly
