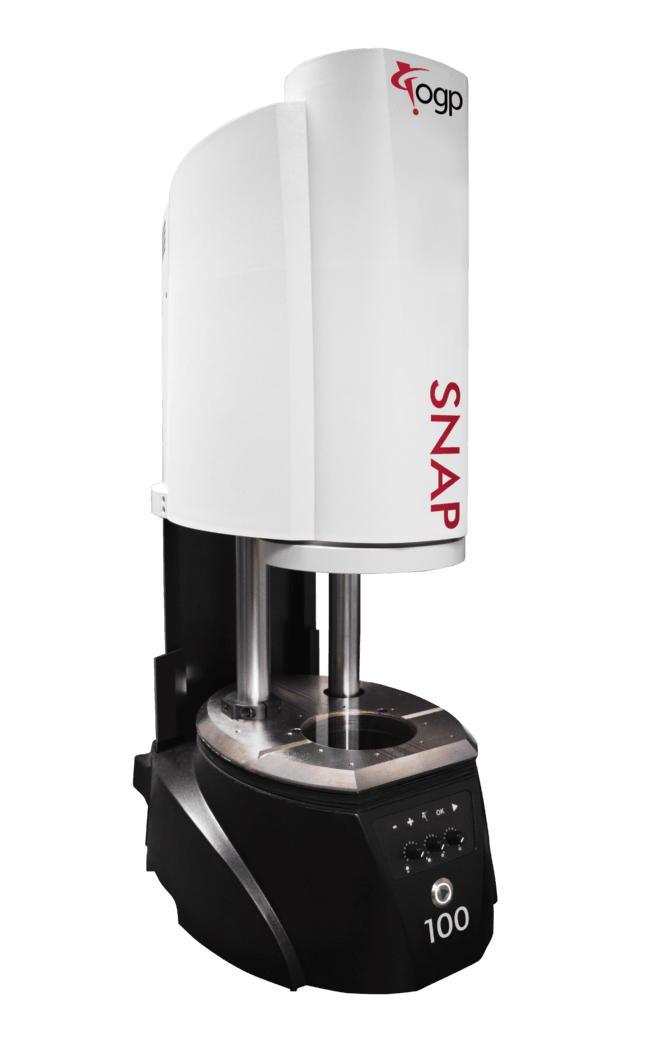

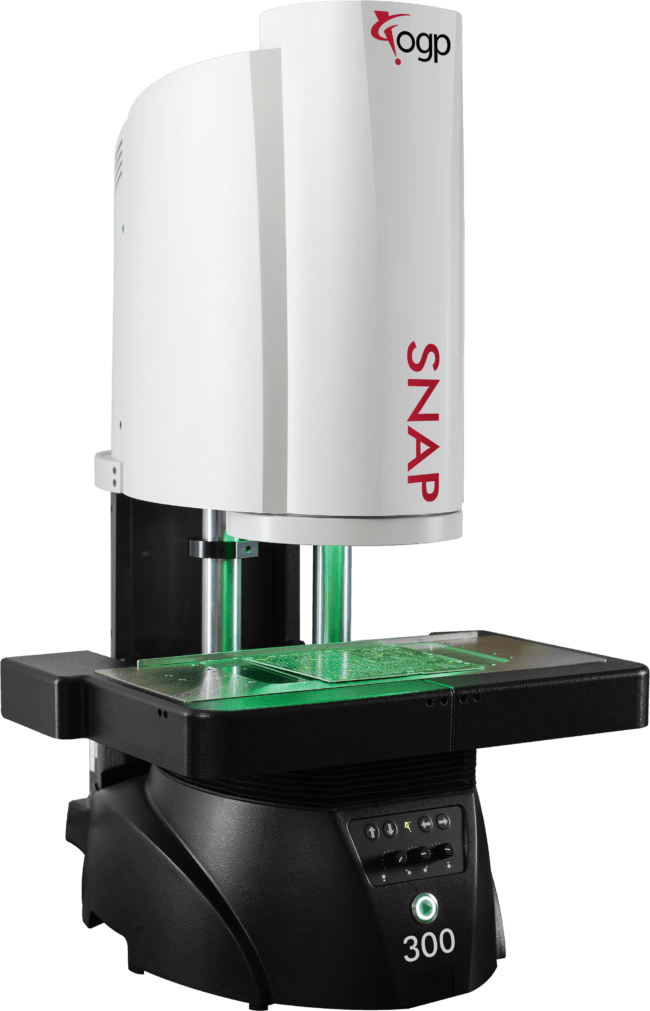

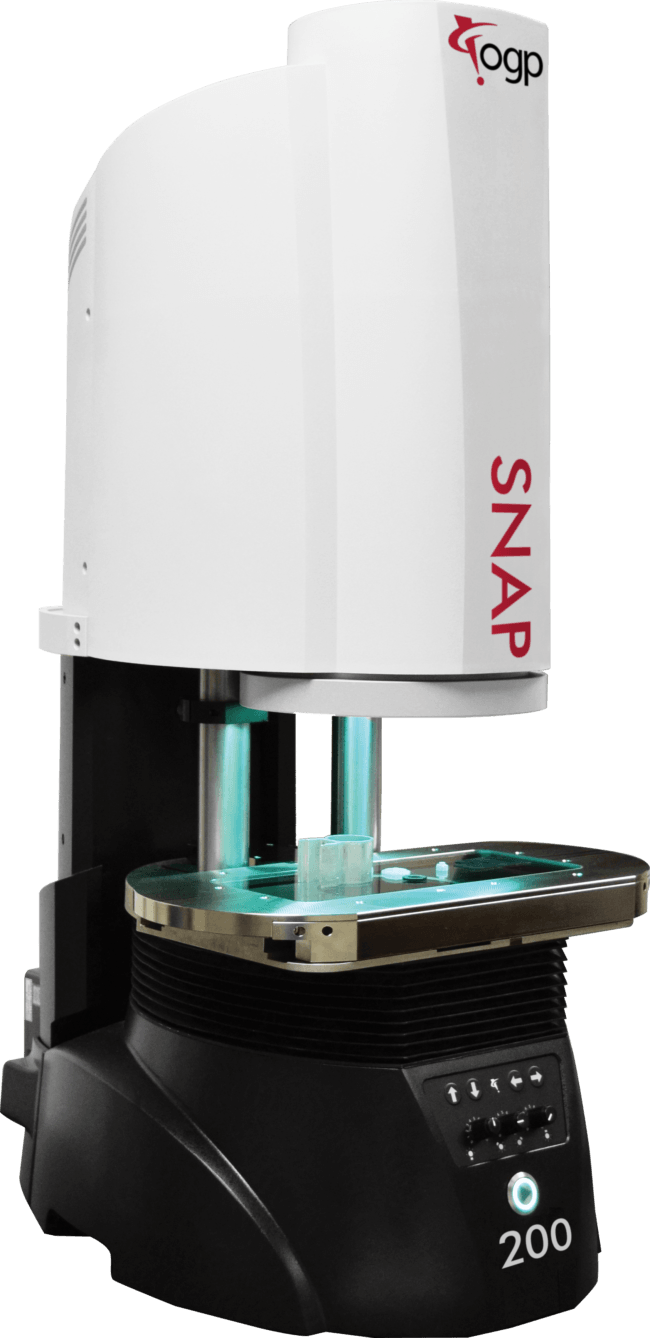

SNAP™ Large FOV Video Measurement Systems are compact measuring systems that integrate perfectly from the shop floor, to the lab, or as part of an automated work cell. Rugged construction and an open work envelope make SNAP easy to implement in virtually any manufacturing setting.
All SNAP systems feature large field of view optics, high resolution cameras, and lighting custom-designed to optimize the image, creating a complete optical system. Camera, optics, lighting, and platform are matched and tuned for optimum performance.
Measure-X™ software provides users with a simple, powerful interface for instant 2D measurement, virtual chart gaging, and profile analysis. Optional ZONE3 software combines Parallel Processing with intelligent routine Optimization resulting in faster programming and run times by measuring as many features as can be seen simultaneously. An OGP SNAP is a metrology system that offers:
|Delivers a much larger area of measurement without stage movement, ideal for small parts with fine features||Video system with field sizes similar to traditional optical comparators|
|Automatic measurement of single parts, multiple parts - even a mixture of different part, producing high accuracy images||High- resolution digital metrology camera with specially designed optics and lighting|
|Instant 2D measurement, virtual chart gaging, and profile analysis||Measure-X software has major functions that focus on core tasks|
|Measure details anywhere in the viewing area||Exclusive Zoom Anywhere technology|
|Advanced programming techniques and full-field parallel processing||Optional ZONE3 Metrology Software|
OGP Authorized Representatives are metrology specialists, qualified to evaluate your measurement requirements and recommend the solution that best fits your needs.
Your local representative is ready to help you with product details, demonstrations, training, or purchase information.Contact a Sales Rep.
