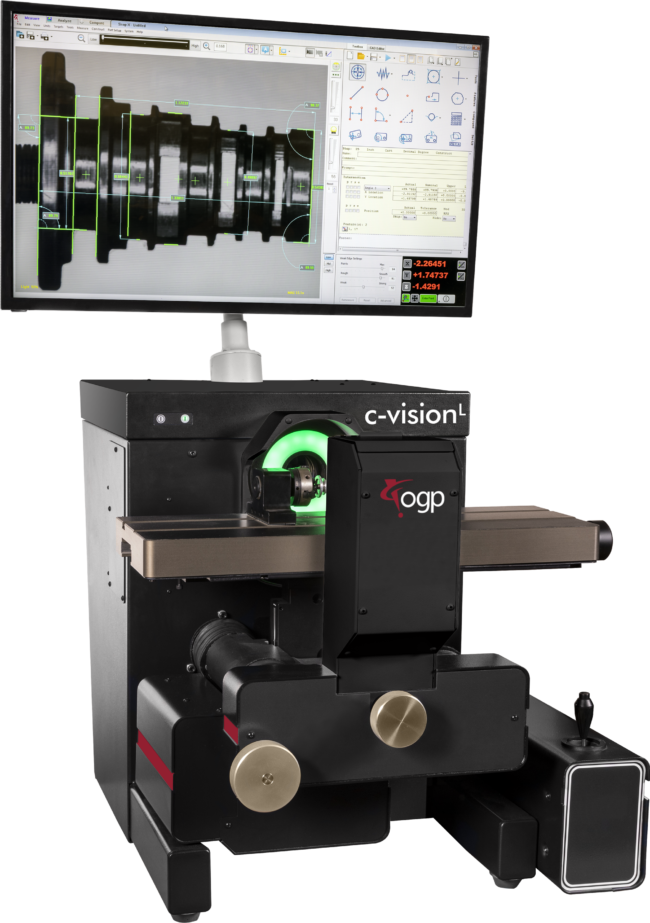

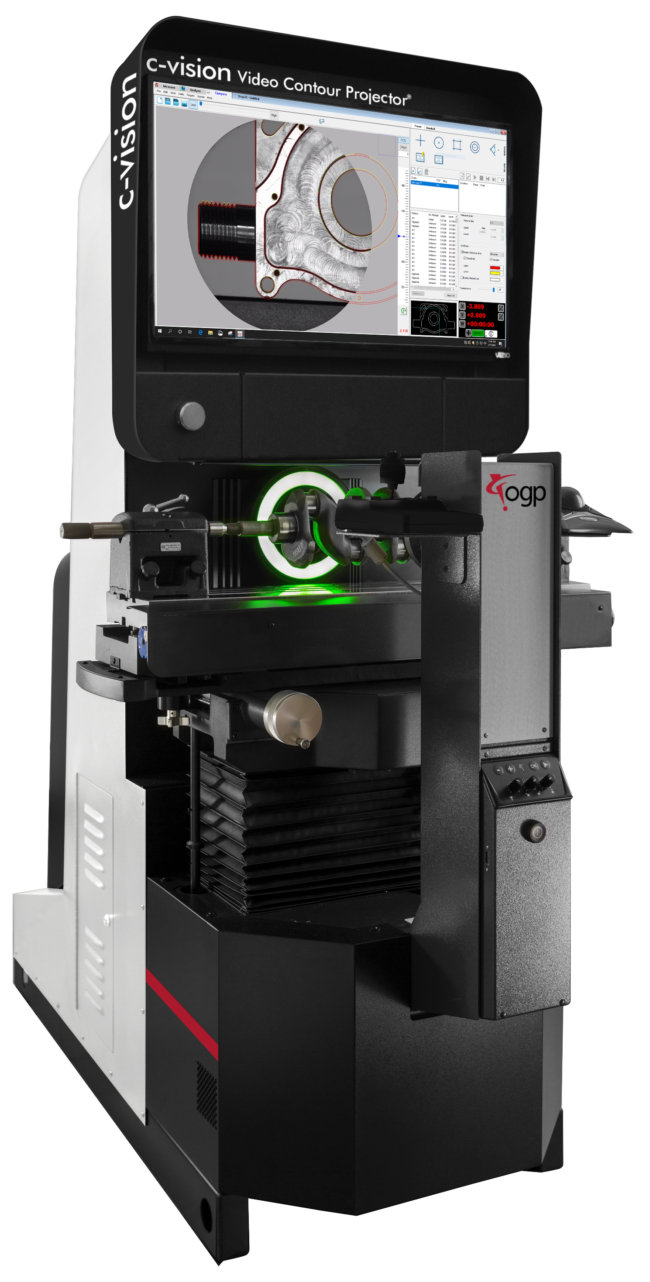

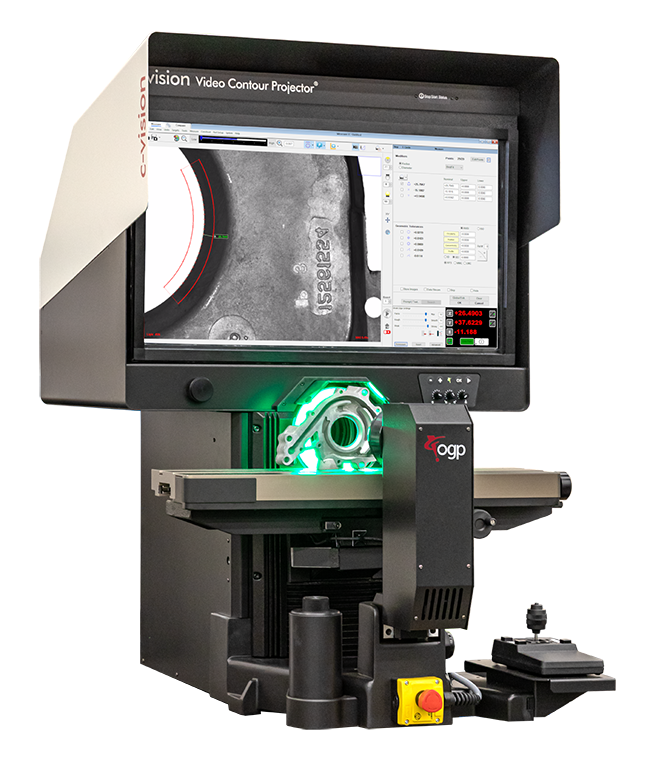

C-Vision™ Video Contour® Projectors from OGP combine the speed and accuracy of a video measurement system with the rugged capacity of an optical comparator to create the world’s best shop-floor measuring tools for 2D measurement. Video measurement systems offer high magnification and the speed of automatic measurement, using a high-resolution digital image. With 60% more magnification range than a standard comparator, users can accurately measure features up to 4 inches without refocusing the worktable, while still measuring fine details on parts. c-vision benchtop and floor models are built for large, heavy parts with a load capacity up to 250 lbs. c-vision systems come equipped with impressive capabilities such as a durable build, large screens for measurement versatility, innovative optics, long service life, and more, making it the perfect option for contour projection needs.
|Accurate Image with exceptionally low distortion over entire viewing area||Motorized internal lens turret for distortion free viewing over the entire magnification range|
|Shop hardened and convenient||Tough construction, high load capacity, and large viewing screen for shop floor use|
|Create and run measurement routines, perform "walk-up and measure" tasks well as fitting the measurement data to 2D CAD for profile and GD&T analysis||Measure-X™ Compare virtual chart gage software displays both standard and custom overlay charts - direct from DXF CAD files|
|Simple but accurate operator controls for fast shop-floor measurements||Manual XY table motion with precision linear scales and fine adjusters. Motorized XY motion with hardended rotational screen control knob|
OGP Authorized Representatives are metrology specialists, qualified to evaluate your measurement requirements and recommend the solution that best fits your needs.
Your local representative is ready to help you with product details, demonstrations, training, or purchase information.Contact a Sales Rep.
