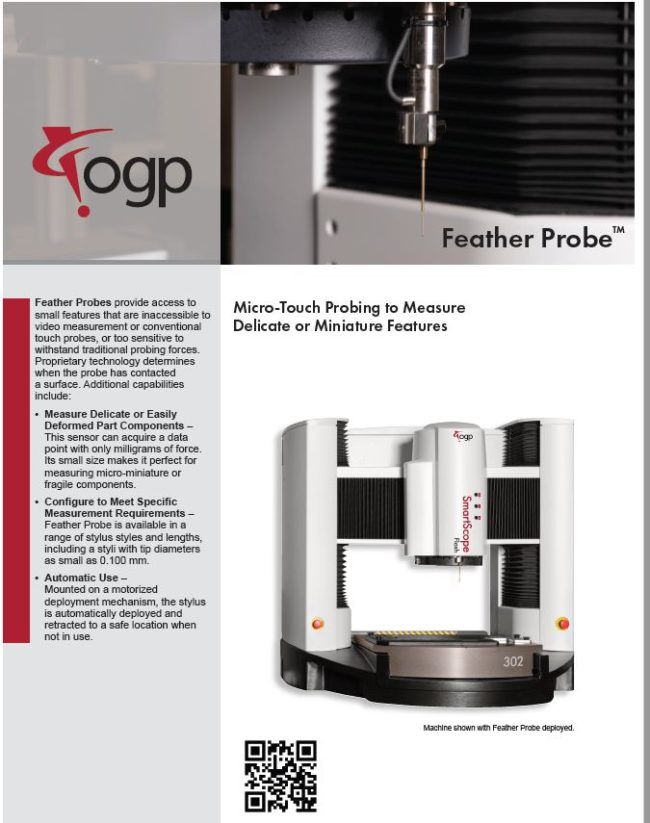

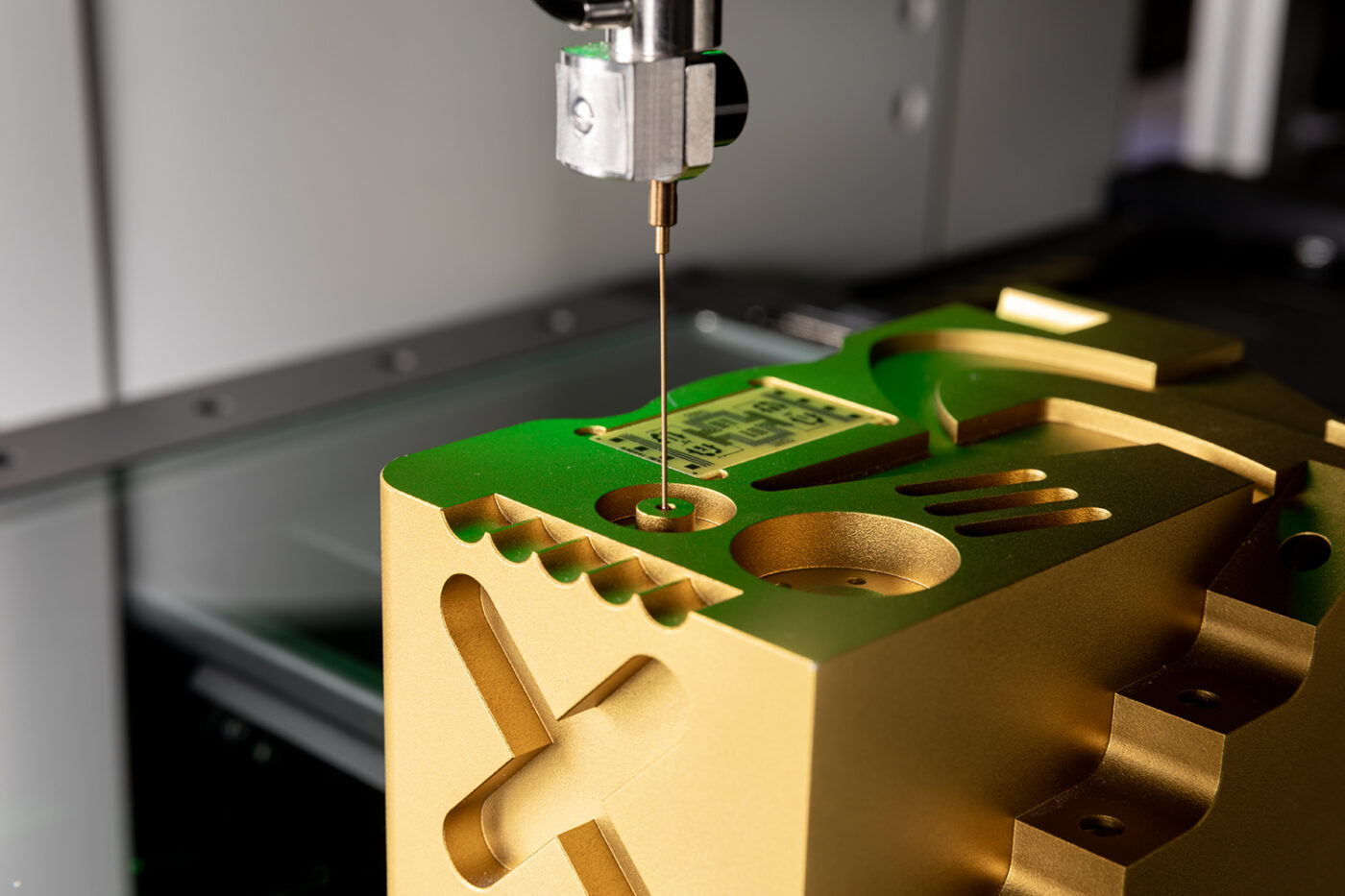

Feather Probe™ from OGP provides access to small features that are inaccessible to video measurement or conventional touch probes, or too sensitive to withstand traditional probing forces, by using a specific sensing technology to determine when a resonating stylus has come close enough to a surface to dampen its resonance. This sensor can acquire a data point with only milligrams of force making it perfect for fragile components.

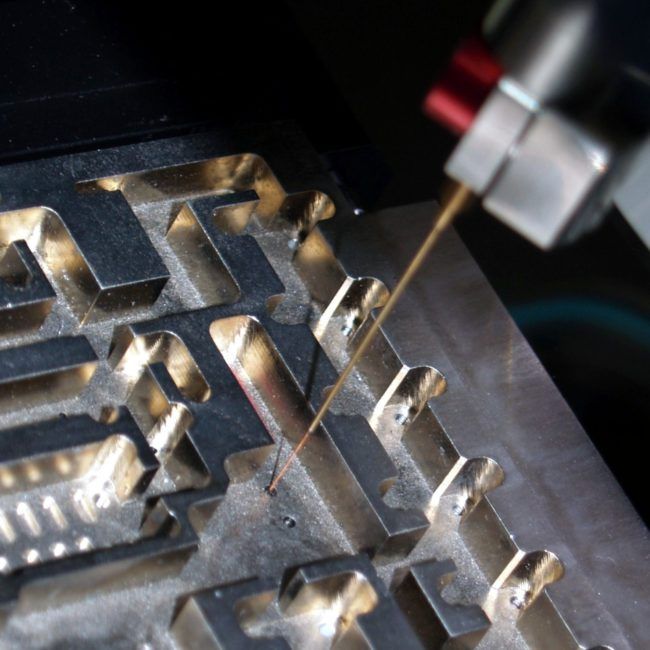

With available styli as small as 0.125 mm, Feather Probe is able to access minute features inaccessible to traditional touch probes.

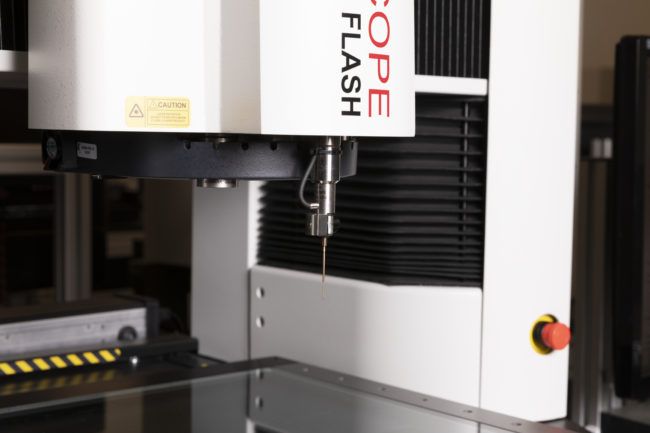

Mounted on a motorized deployment mechanism, the stylus is automatically deployed and retracted to a safe location when not in use.
Technical Data
Supported Touch Probes
Ruby, Teflon, and Tungsten stylus as small as 0.100 mm
Mounting
Standard
Automatic motorized deployment mechanism
Optional
Fixed position offset from the optics
| Technical Specifications | |
|---|---|

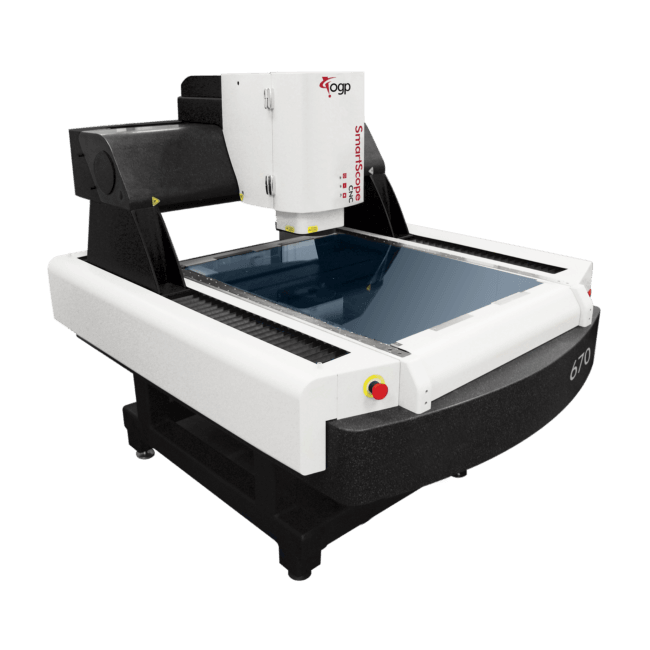

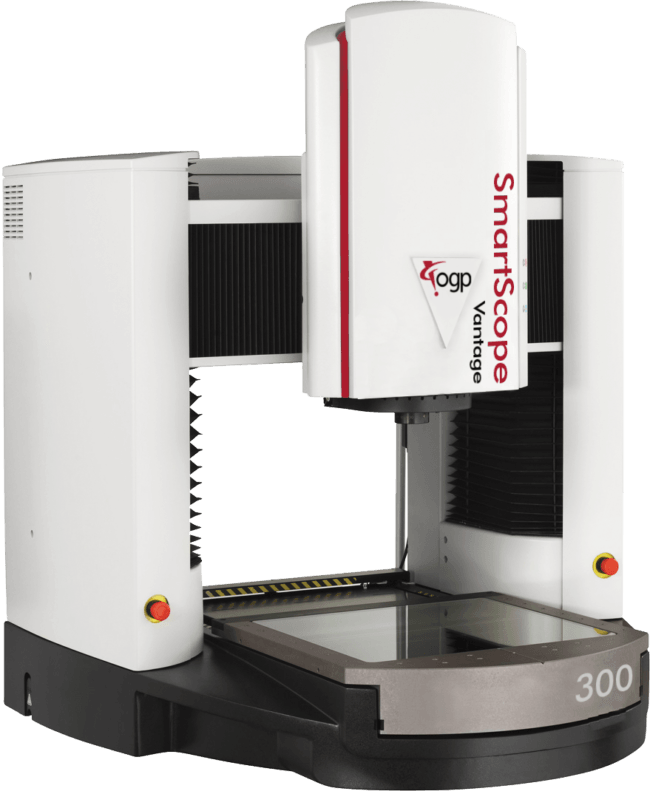

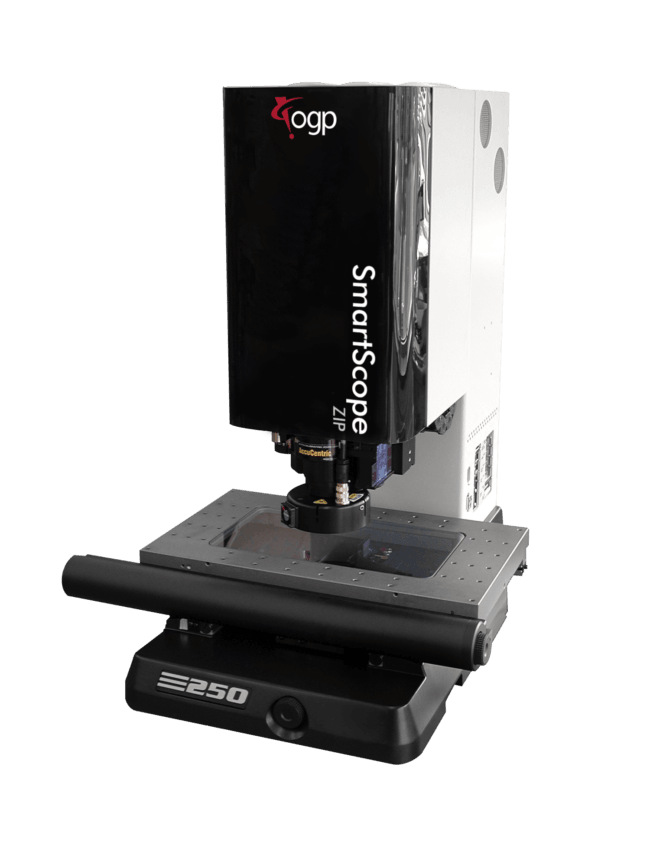

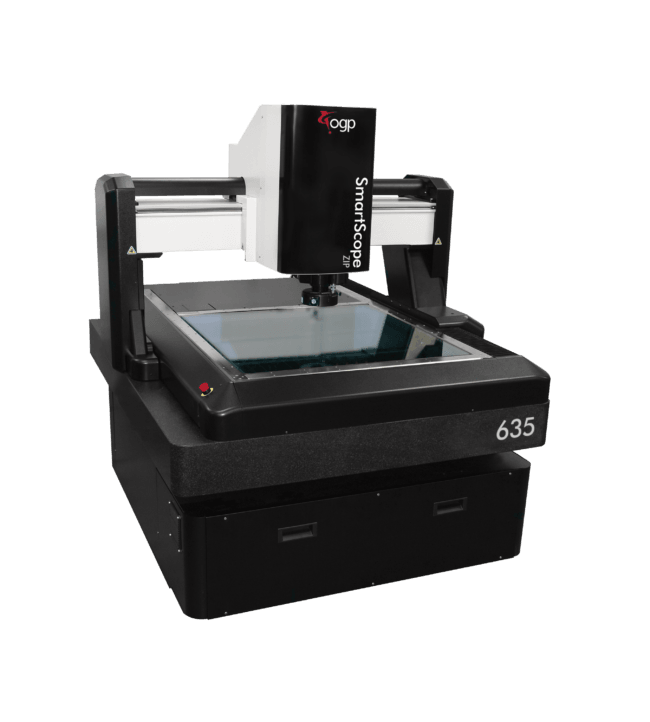

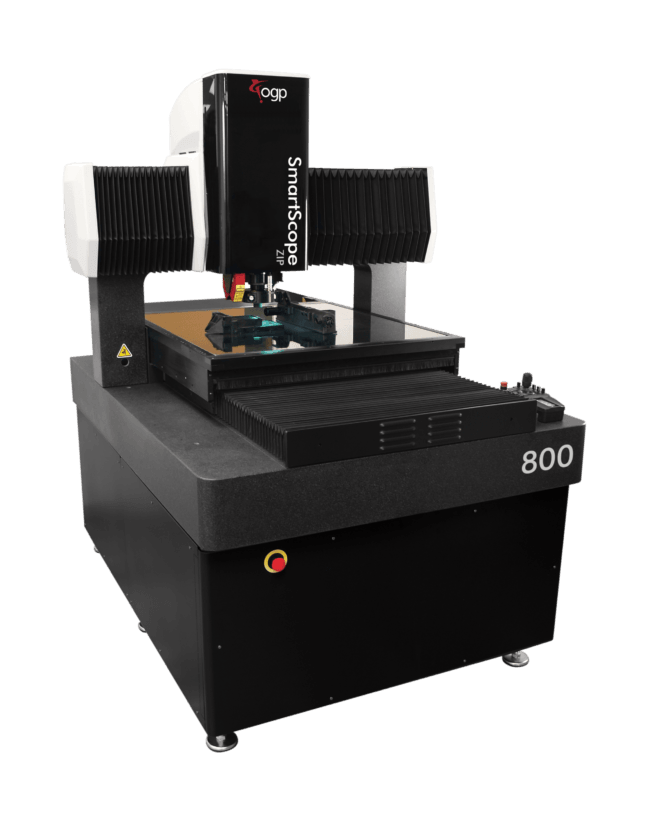

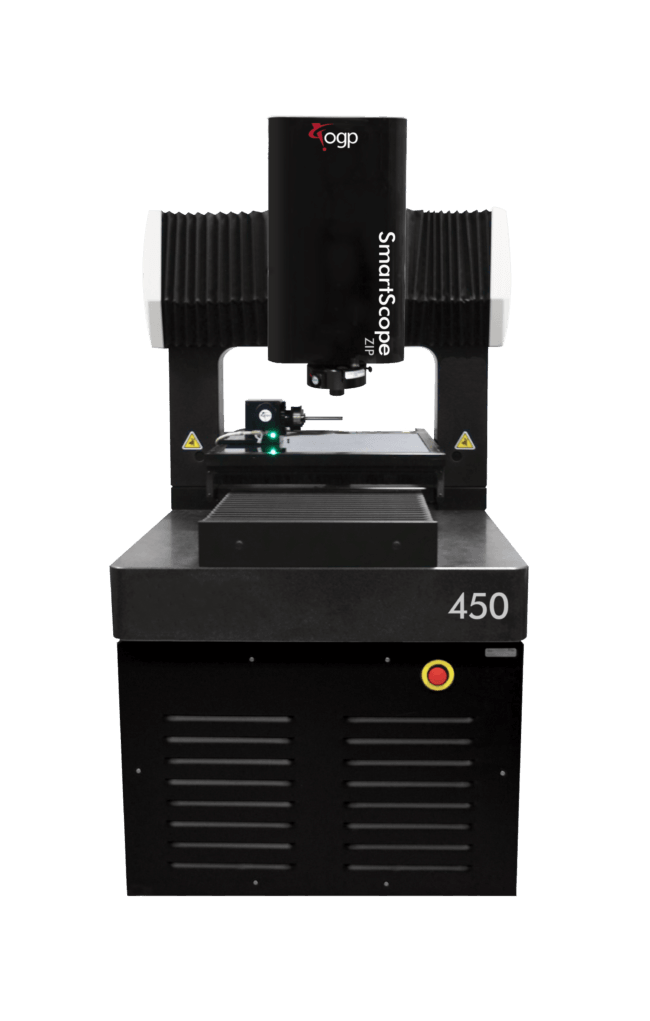

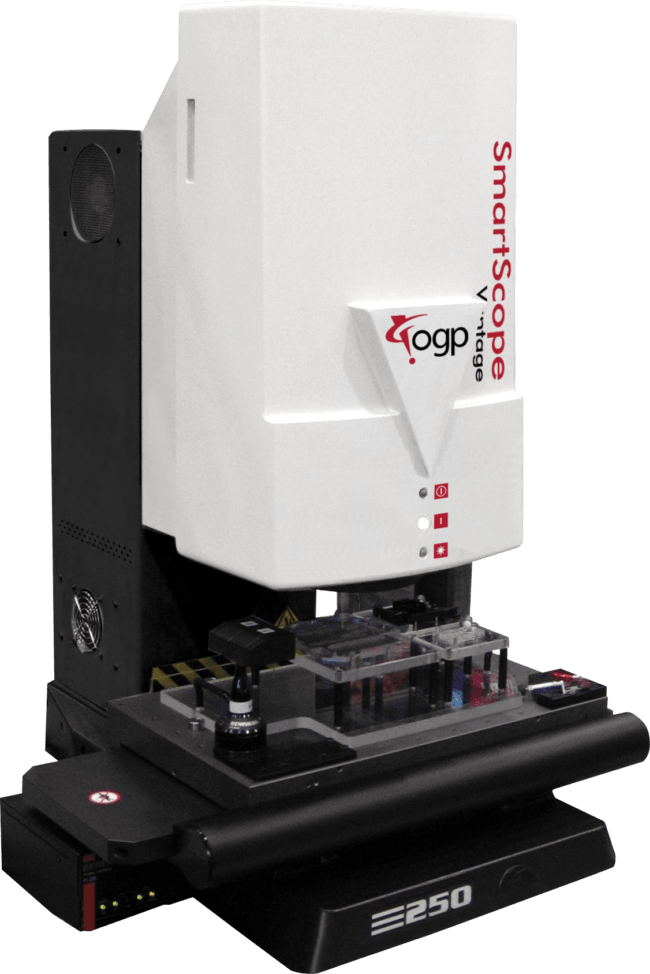

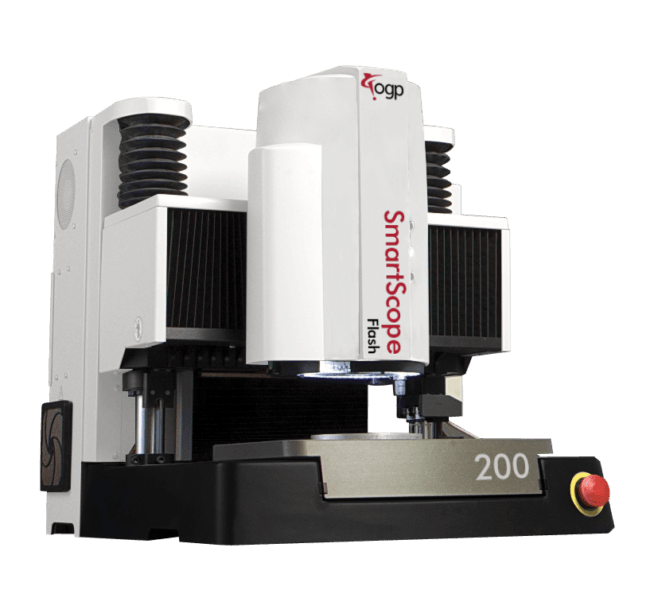

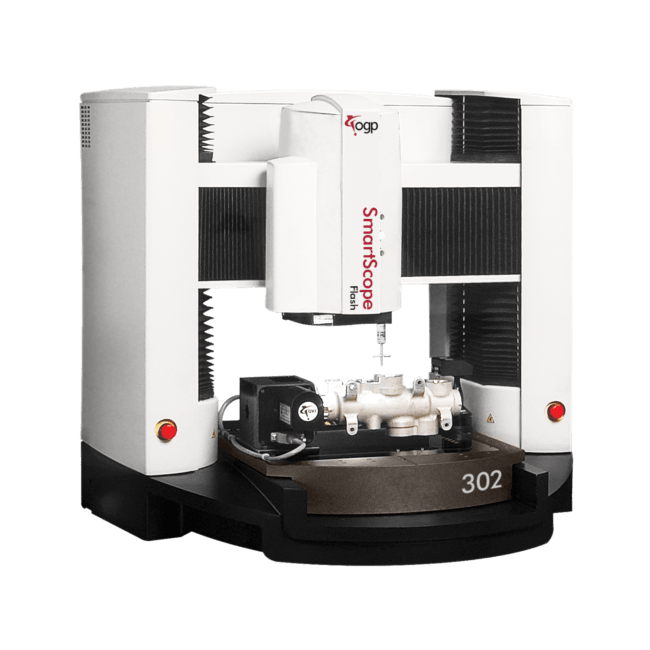

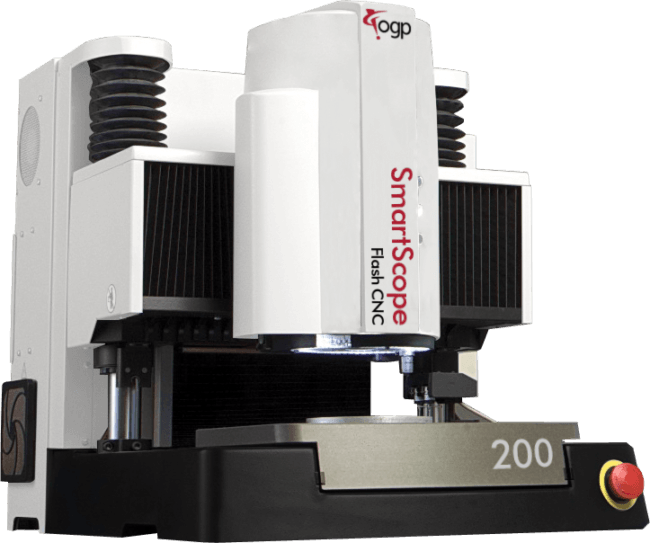

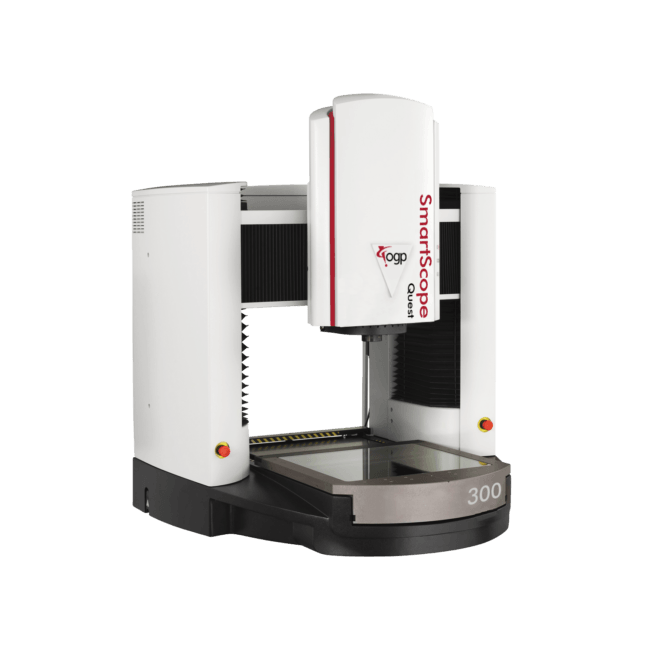

| Measurement System | Compatible with SmartScope® M-Series and Quest™ systems |
| Metrology Software | Requires ZONE3® metrology software |
| Standard Configuration | Includes Feather Probe; Probe Interface (P/N: 062579); 1.0 mm ruby-tipped stylus with 30 mm effective working length (EWL) and less than 10 mg trigger force (P/N: 531139); motorized deployment/retraction mechanism |
| Resonance Optimization | Probe Interface automatically optimizes probe resonance to minimize susceptibility to environmental changes |
| Deployability | Deployable under system control (not for use with change rack) |
| Deployment Mechanism Repeatability |
± 2 µm |
| XYZ Frame of Reference | Freely interchange Feather Probe data with other sensor data within same measurement routine |
