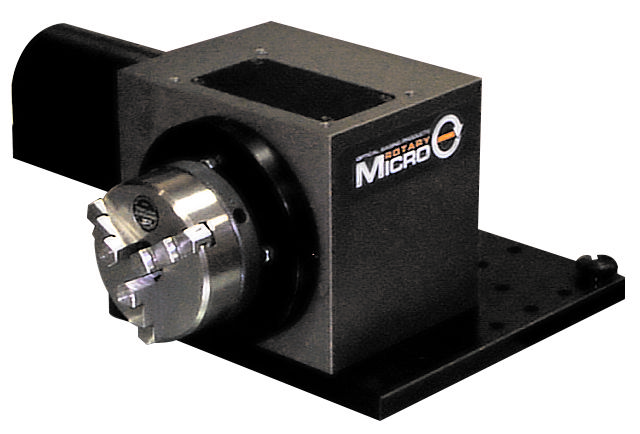

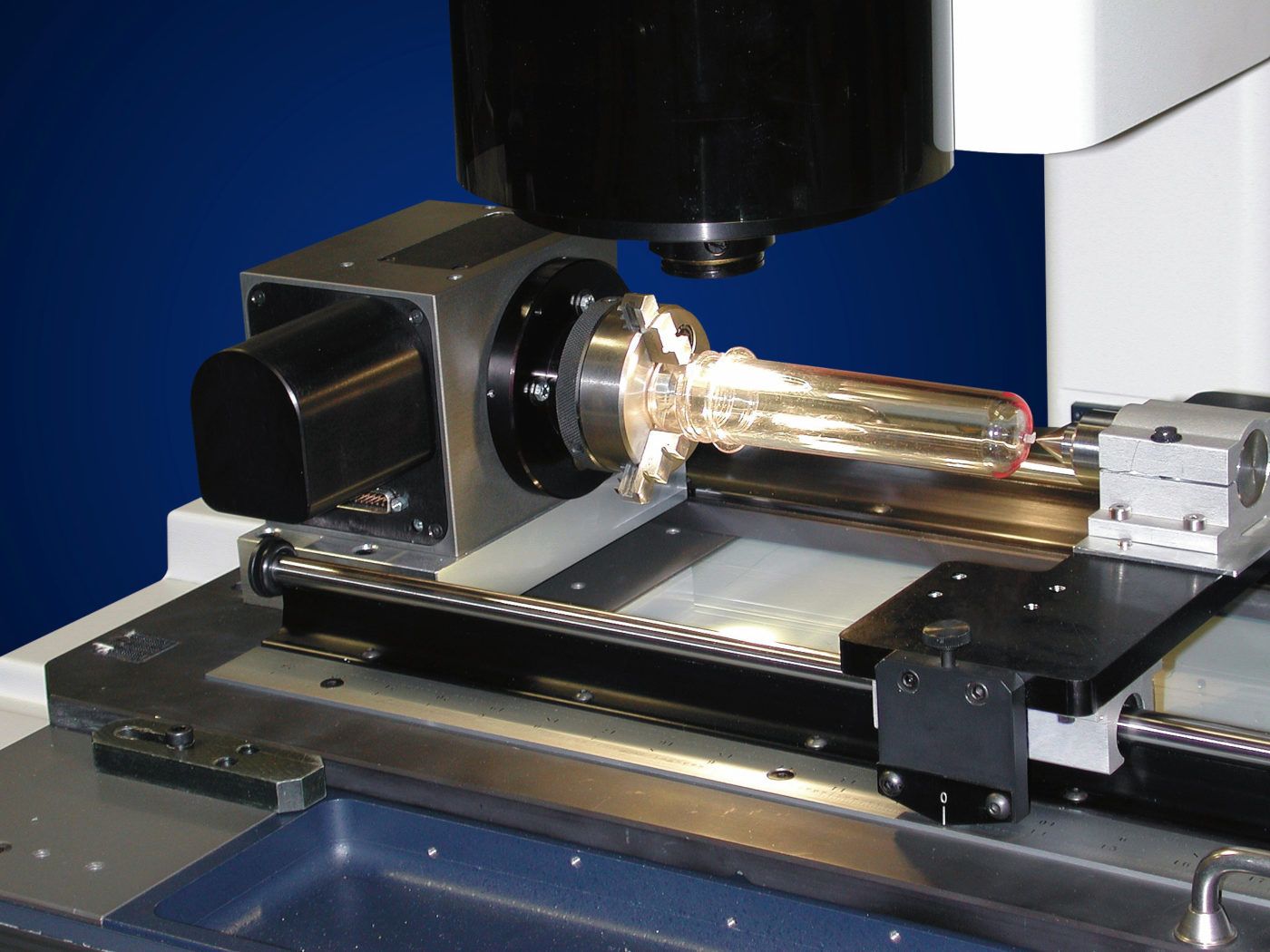

Micro-Theta Rotary (MTR)
Brings true fourth axis measuring capability to OGP dimensional measurement systems
The MicroTheta™ Rotary brings true fourth axis measuring capability to OGP dimensional measurement systems.
- Automatically rotate parts to present a different view to the measuring system, with no need to re-measure datum features
- OGP 3D metrology software includes rotary axis calibration routines to locate the rotary in 3D space
- MicroTheta Rotary may be mounted horizontally or vertically, per application requirements
- Pair the MicroTheta Rotary with other OGP rotaries to add a fifth axis of rotation
Technical Data
Position Resolution
2 arc seconds
Position Accuracy
± 5 arc seconds
