Product Selector
Click-to-answer questions guide you through selecting the right product for your application.
Our full line of measurement systems ensures that we can deliver the right solution for your measurement needs.
Multisensing provides complete 3D measurement data from a single measuring machine. Video, contact probes, laser and micro-probes combine for total part characterization, with better accuracy, in a fraction of the time it would take to do on separate measuring systems.
For critical dimensional measurement, OGP offers optical metrology systems tailored for wafer, photomask, slider, MEMS, semiconductor package, HDD suspension, probe card, and micro-component process measurements.

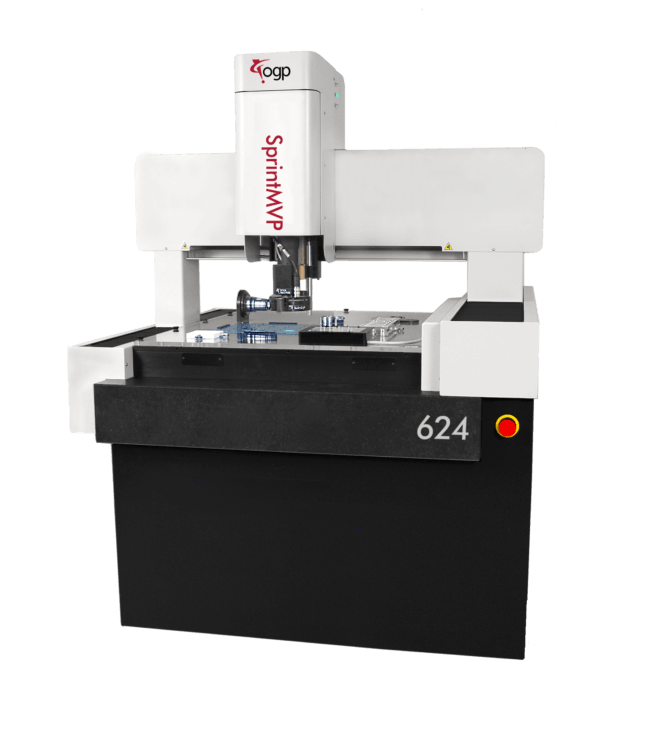

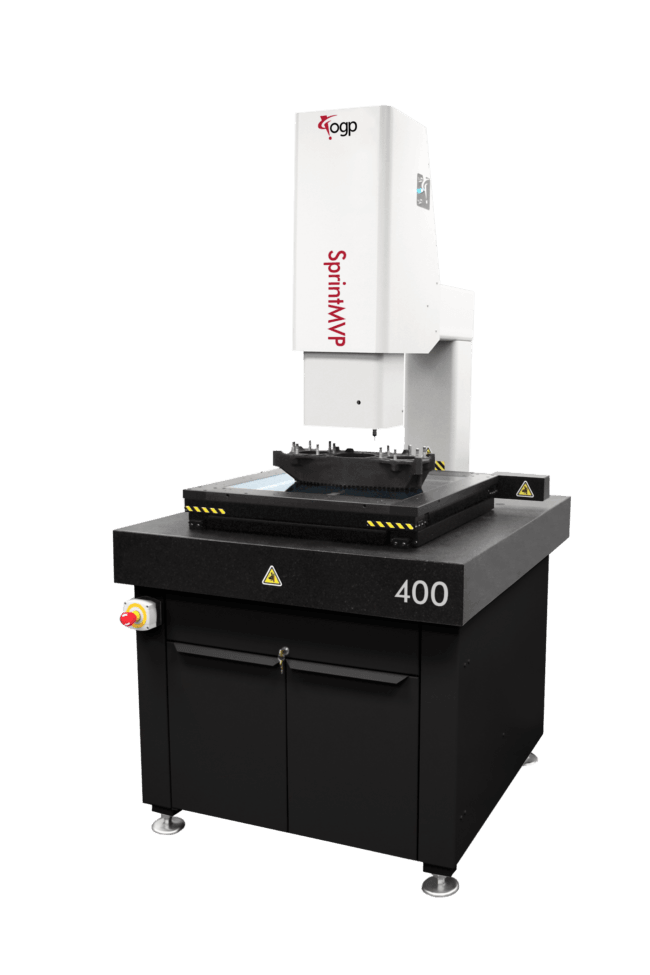

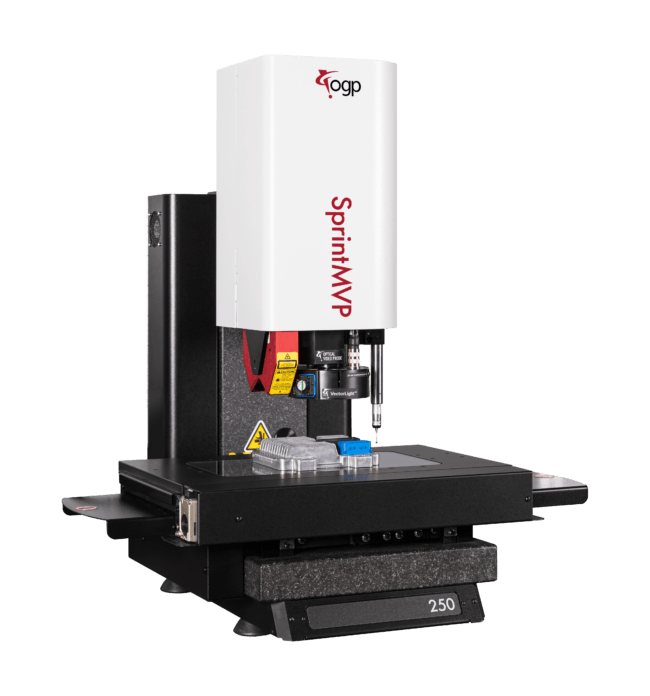

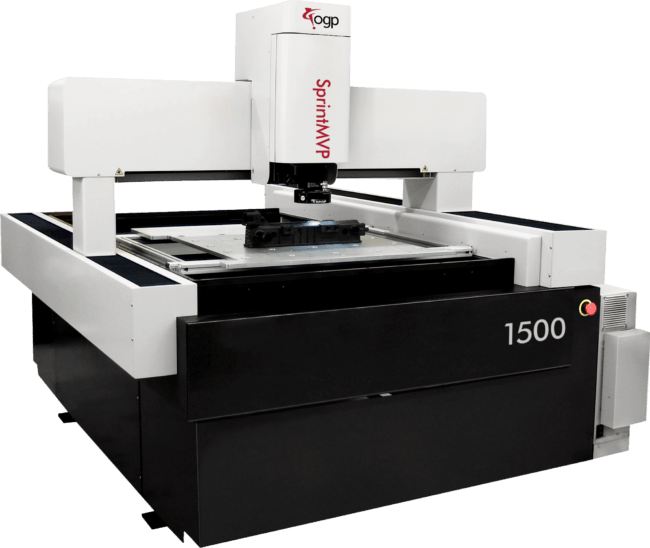

Automatic Video Measurement Systems – SprintMVP™ automatic measurement systems provide dimensional measurement and CNC programmed operation for precision needs.
SNAP Large FOV Video Measuring Systems – SNAP™ measurement systems make complex measurements easy and accurate – it’s as simple as placing a part on the stage and pressing go.
A full line of laser scanner systems are available from OGP, delivering the right solution for any measurement needs.
ShapeGrabber 3D Scanners – automated 3D scanners are ideal for measuring complex-shaped parts where speed, complete coverage and ease-of-use are important

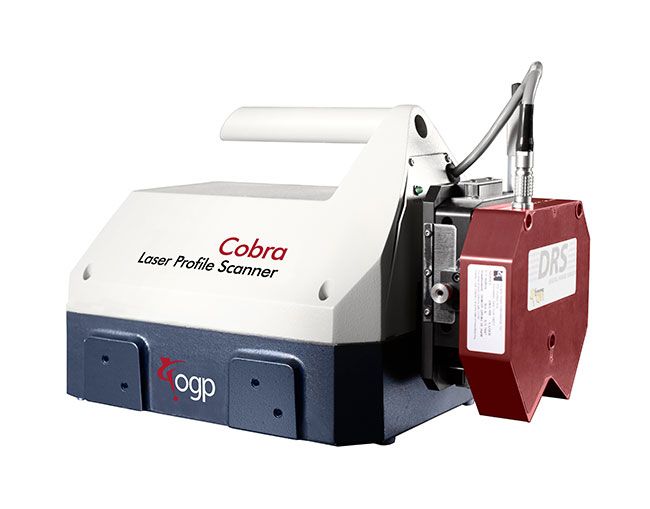

Cobra – Economical laser scanner that quickly scans virtually any surface to produce high-resolution 2D or 3D profiles (depending on model)

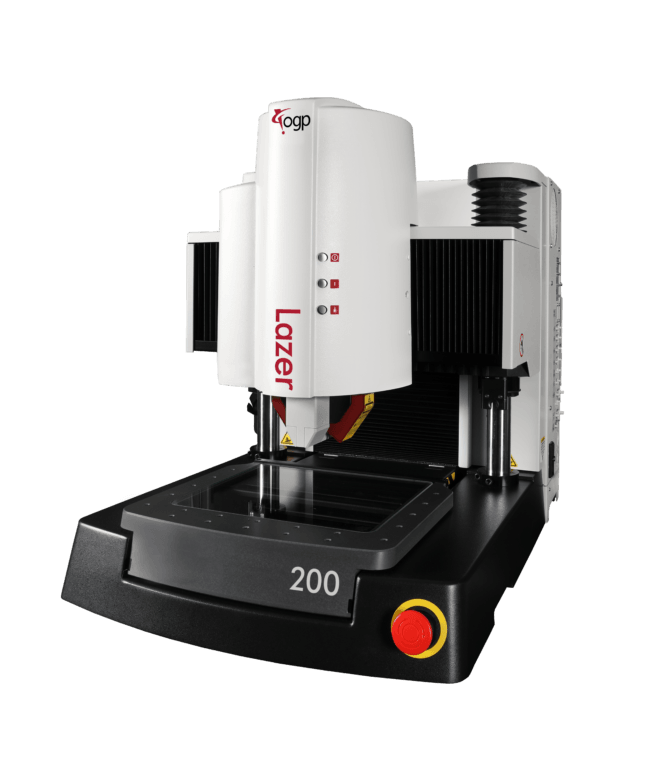

Lazer 200 – Non-contact, self-contained laser metrology system
TurnCheck™ systems are precision optical instruments designed to measure shafts and other cylindrical parts. Each member of the TurnCheck family is built for ease of use and consistent accuracy, even in difficult shop-floor conditions.
TurnCheck systems are built for the people who use them: With advanced optics, rugged materials, and intelligent controls to make set up and measurements fast, accurate and easy.
Benefits | Features |
|---|---|
| Accurate measurements in shop floor conditions where vibration and temperature variation may not be tightly controlled | Rugged baseplate with adjustable vibration damping leveling feet |
| Highly rigid support for the optical motion assembly | Extruded aluminum column with an internal lattice |
| Clear, highly accurate images | Illumination system produces highly collimated light with a constant wavelength |
| Crisp, uniformly magnified image across the entire field of view, with no edge effects or exclusion zones | Receiving optics are fully telecentric with each element designed to eliminate distortion |
Optical Comparators from OGP combine cutting-edge optics, lighting, and automation technologies for enhanced productivity and profitability. The benchtop and floor model offerings are the industry’s best value and performance solutions for non-contact shop floor measurement.

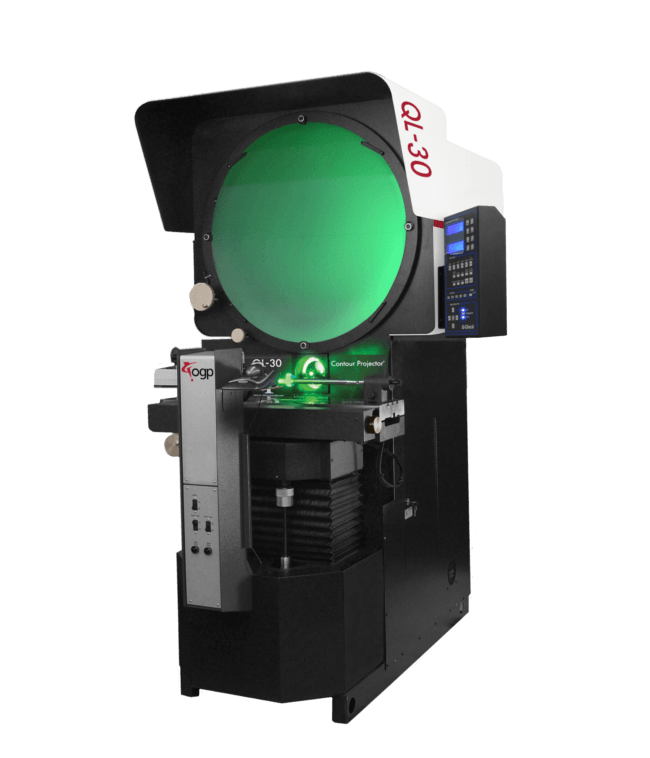

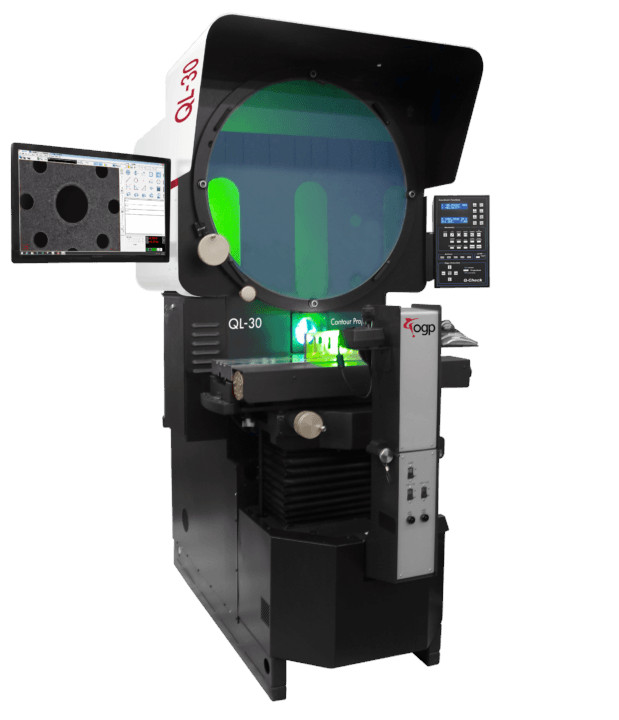

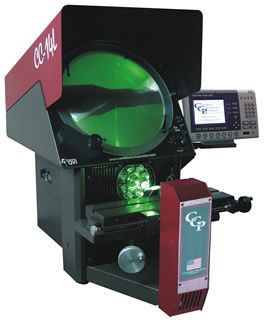

Contour Projectors® – Optical comparators are a mainstay of shop-floor measurement. Their tough construction and big viewing screen make measurements fast and easy. Traditional video measurement systems offer high magnification and the speed of automatic measurement. Benchtop and floor model optical comparators from OGP offer the industry’s best value and performance for non-contact measurement.
c-vision™ Video Contour Projectors – Combine the speed and accuracy of a video measurement system with the rugged capacity of an optical comparator to create the world’s best shop-floor measuring tools for 2D measurement. Video measurement systems offer high magnification and the speed of automatic measurement, using a high-resolution digital image. With 60% more magnification range than a standard comparator, users can accurately measure features up to 4 inches without moving the worktable, while still measuring fine details on parts. c-vision benchtop and floor models are built for your large, heavy parts with a load capacity up to 300 lbs.
Trade-in Program – Leading manufacturers are realizing the value of their old comparators – as trade-in towards new OGP optical comparators and video contour projectors.
Itaca FlexGauge systems offer flexibility for users who need measuring systems and software for small, high precision parts or families of parts as a rugged alternative to custom gauging systems.
With 75 years of technical innovation for metrology, OGP is recognized worldwide as a customer trusted supplier of non-contact and multisensor dimensional measuring systems. On occasion, it becomes necessary to discontinue a product.
The following systems have been retired in the more distant past
