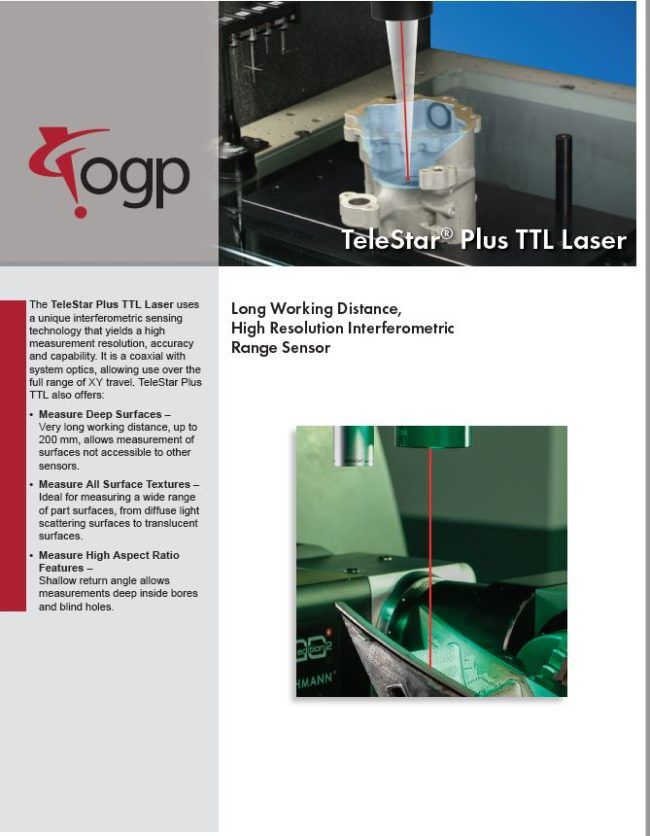

TeleStar Plus Through-the-Lens (TTL) laser
Long Working Distance, High Resolution Interferometric Range Sensor

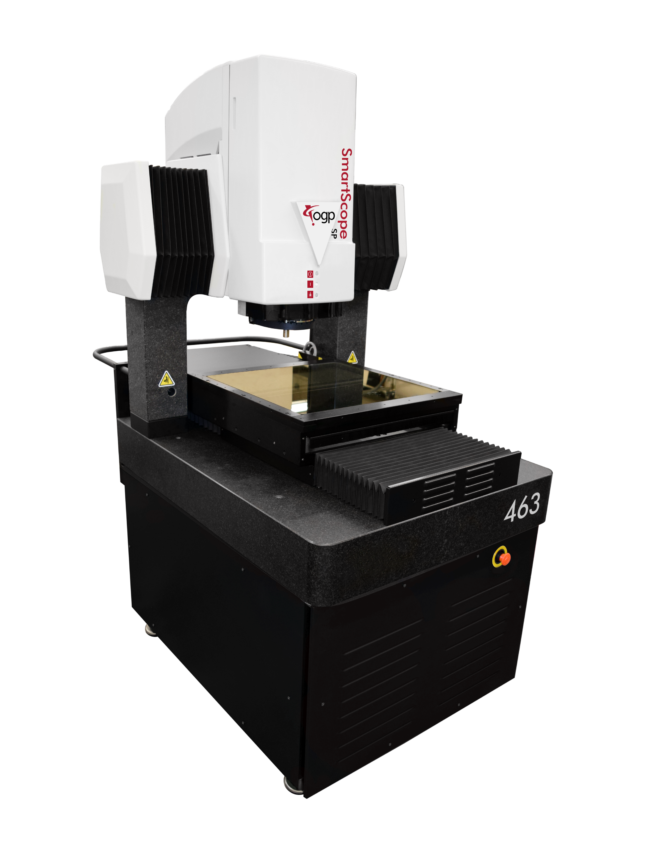

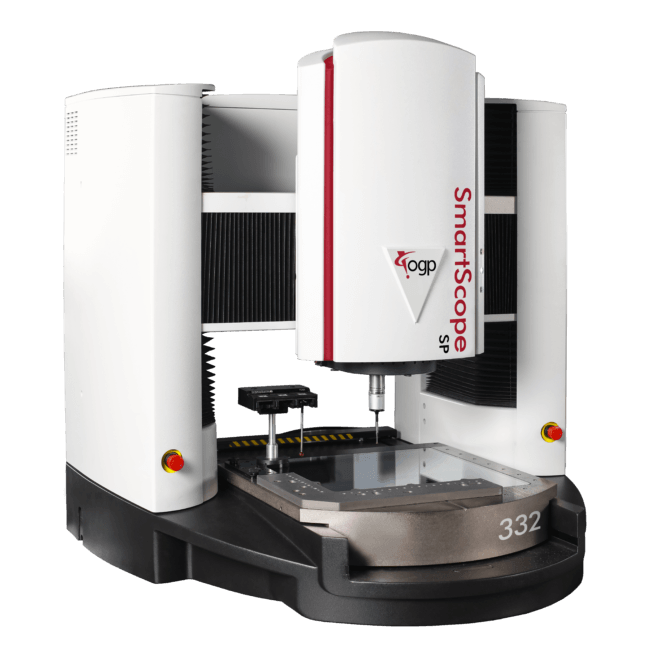

The TeleStar® Plus TTL laser has a unique interferometric sensing technology that yields a high measurement resolution, accuracy and capability in Fusion, SmartScope SP, and SmartScope Quest / Vantage systems. Additionally, the Telestar Plus TTL laser offers:
High resolution scanning – Interferometric sensing technology yields high measurement resolution, accuracy and capability

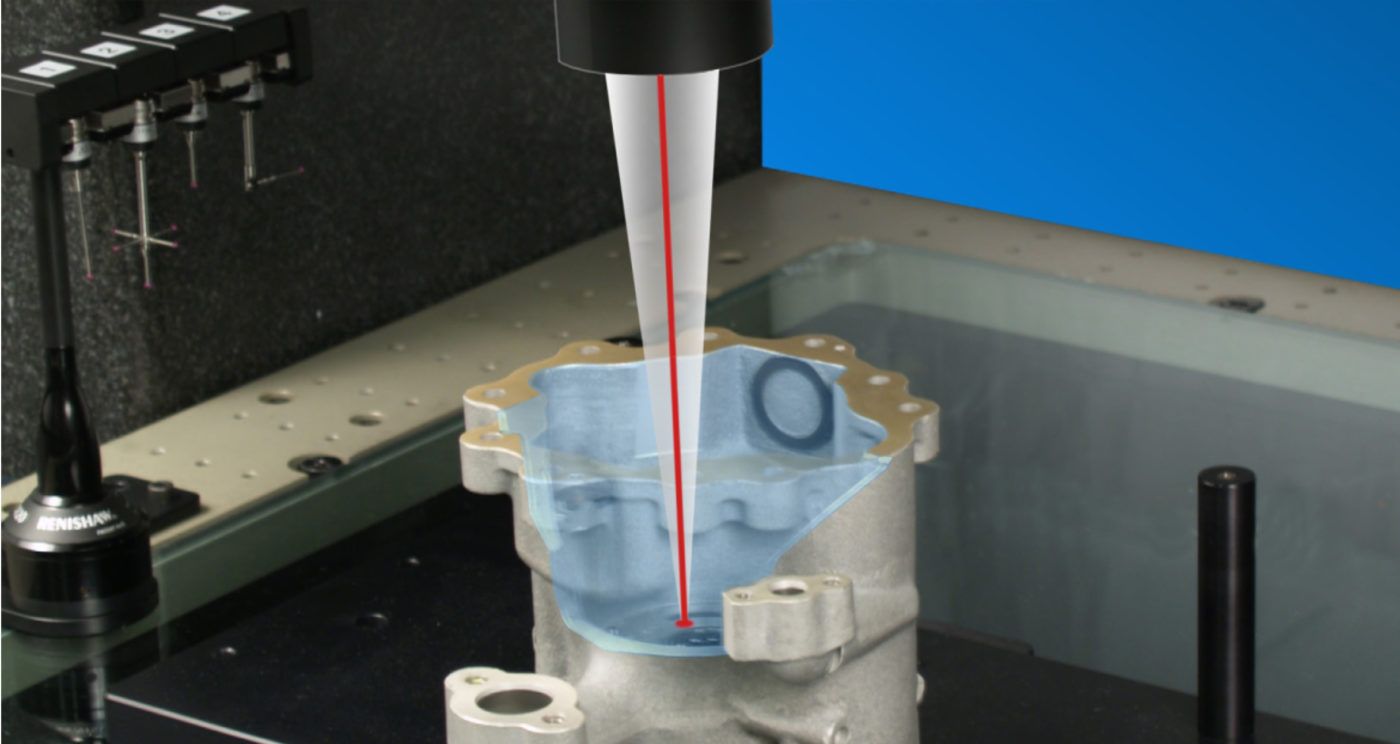

Measure deep surfaces – Very long working distance allows measurement of surfaces not accessible to other sensors; optional 0.45x lens yields a 200 mm working distance

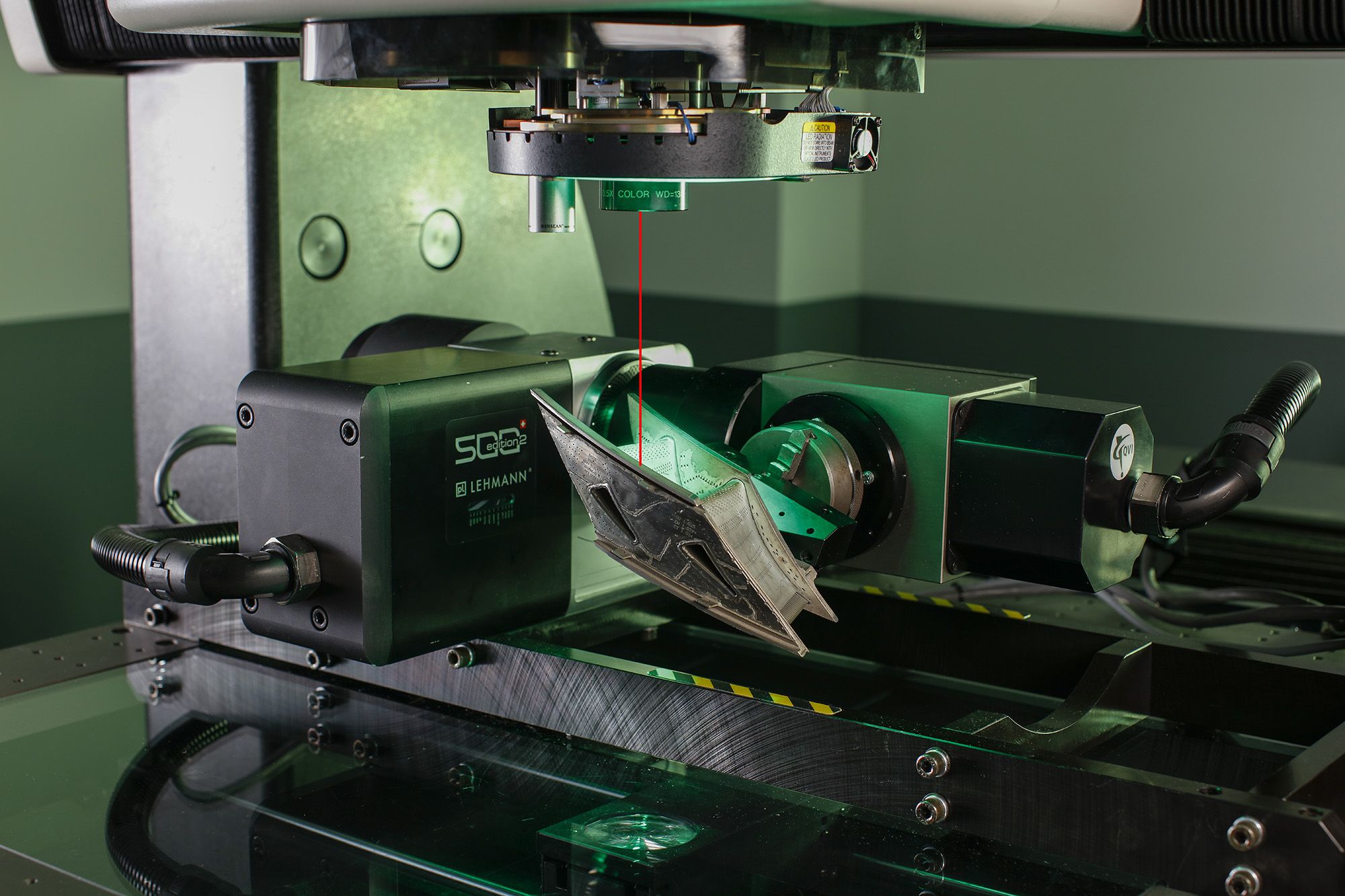

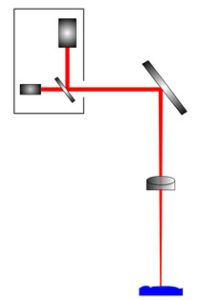

TTL convenience – TeleStar Plus TTL laser is coaxial with system optics, allowing use over the full range of XY travel
Measure all surface textures – Ideal for measuring a wide range of part surfaces, from diffuse light scattering surfaces to translucent surface.
Technical Data
| Available for | Any SmartScope Quest™, SmartScope SP, or Fusion™ |
|---|---|
| Required Metrology Software | ZONE3® |
| Laser Type | Partial coherence interferometer |
| Laser Class (internal laser pointer) | Class 2 |
| System | SmartScope Quest | SmartScope SP | Fusion | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Laser Lens | 1x (Standard) | 2x | 4x | 0.5x | 0.45x | 1x (Standard) | 2x | 5x | 1x |
| Working Distance | 71 mm | 34 mm | 19 mm | 130 mm | 200 mm | 90 mm | 38 mm | 19 mm | 185 mm |
| Measuring Range1 | 800 µm | 600 µm | 400 µm | 1400 µm | 2000 µm | 800 µm | 600 µm | 400 µm | 800 µm |
| Spot size2 (nominal-FWHM) | 5.0 µm | 3.8 µm | 2.4 µm | 7.3 µm | 10 µm | 5.0 µm | 3.8 µm | 2.4 µm | 5.0 µm |
| Resolution3 | 0.1 µm | 0.2 µm | 0.3µm | 0.25 µm | 0.45 µm | 0.15 µm | 0.2 µm | 0.3 µm | 0.3 µm |
| Accuracy4 | 1.0 µm | 2.2 µm | 2.5 µm | 2.5 µm | 4.0 µm | 1.0 µm | 2.2 µm | 2.5 µm | 3.0 µm |
| Repeatability4 | 0.1 µm (1σ) | ||||||||
- 1. Measuring Range is the Z-range over which the performance of the sensor is linear and calibrated.
- 2. With spot size at best focus. Spot sizes for this particular laser are the full width of the spot at half maximum value (FWHM).
- 3. Using high quality specular (polished glass) surface, 1σ.
- 4. Accuracy/Repeatability of the laser on horizontal specular surfaces within the measuring range. System performance varies with machine type.
- Safety Considerations
This system is classified as a Class II laser device by IEC 825 (2001). Do not stare directly into the laser source.
