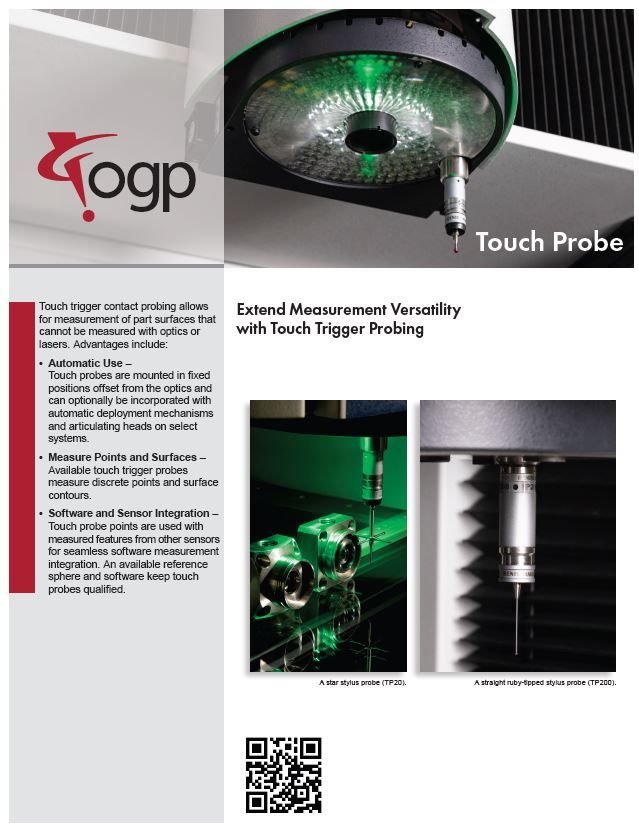

Touch Probe
Single point touch trigger probing extends measurement versatility of measurement systems from OGP
Touch Probe Sensor

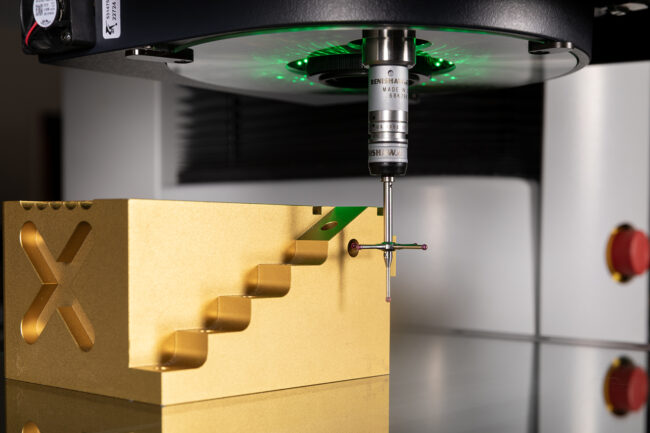

Single point touch trigger probing extends measurement versatility of measurement systems from OGP. Using a touch trigger probe, you can measure features that are difficult to image, or surface boundaries that are inaccessible to video.

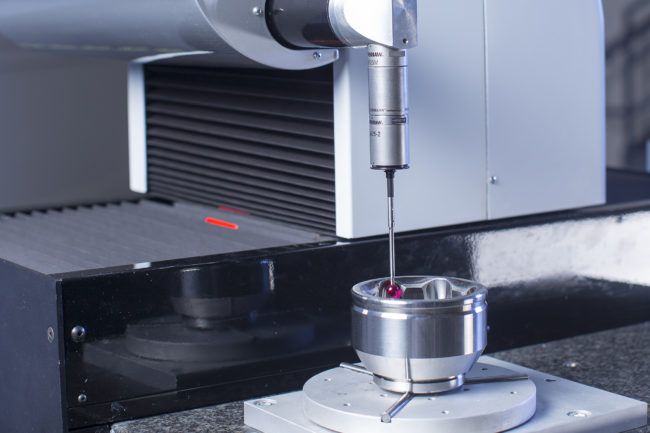

Touch probe measurements can be part of any ZONE3® or Measure-X measurement routine. A unique probe-to-optics offset calibration with an included certified reference sphere ensures that all sensors are referenced to the same coordinate system so measurements can use points from any sensor.

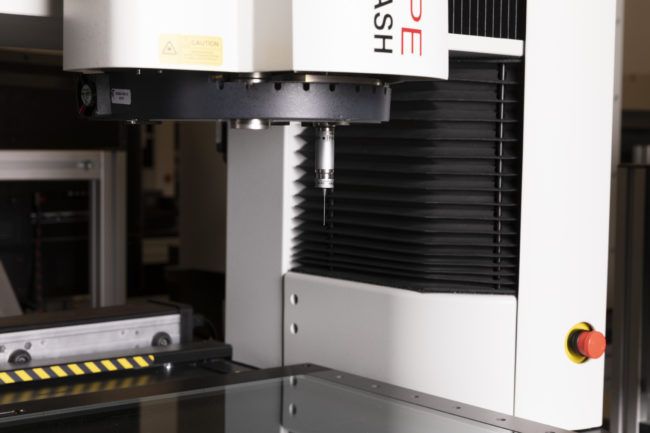

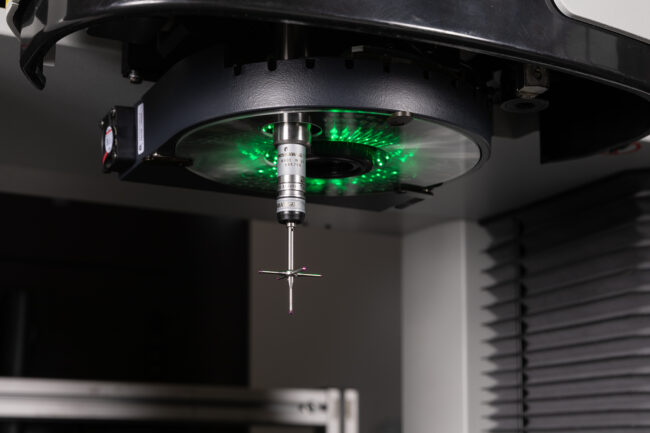

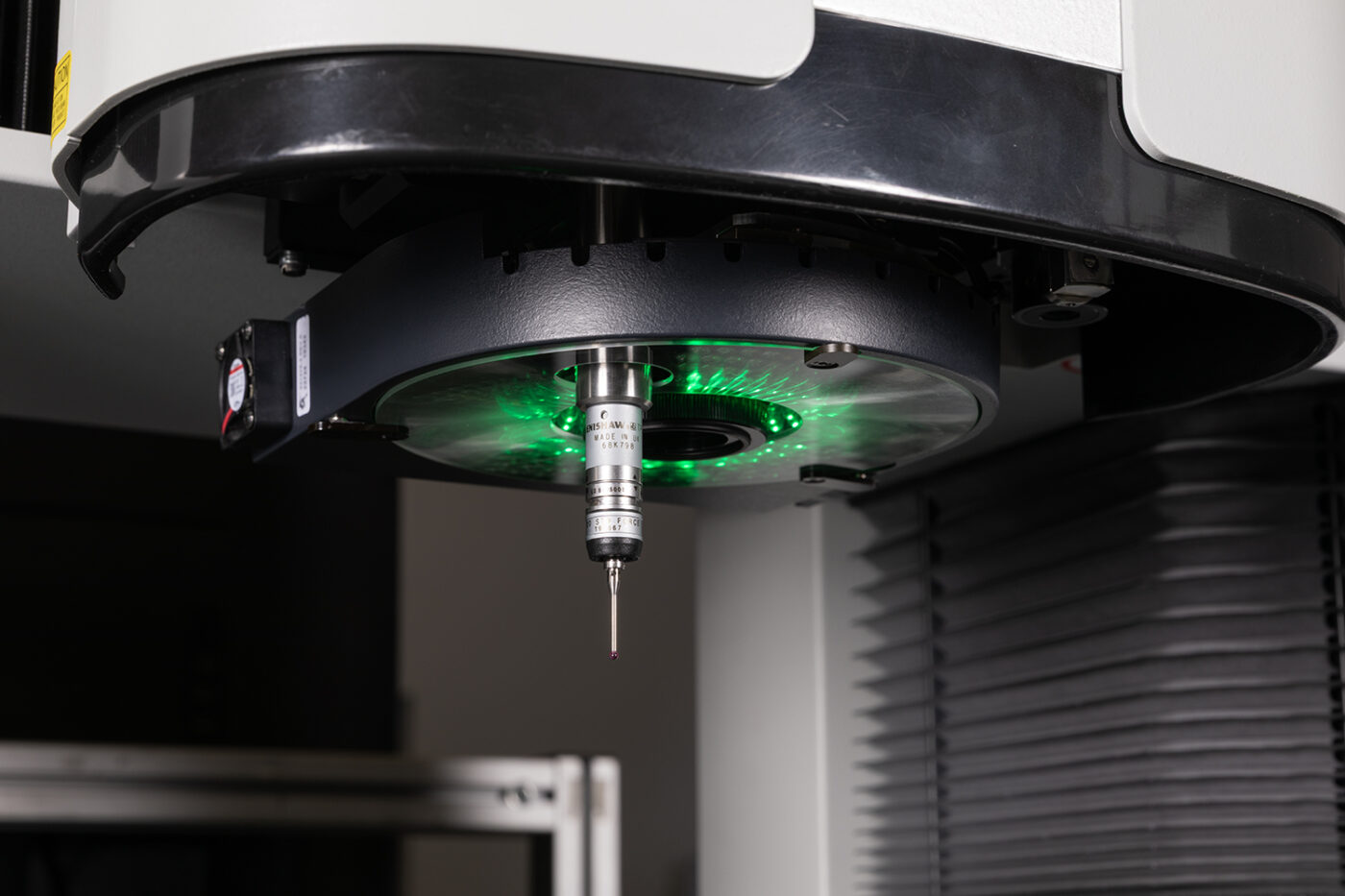

Touch probes are mounted in fixed positions offset from the optics and can optionally be incorporated with automatic deployment mechanisms and articulating heads on select systems.
Optional change racks allow for different probes to be automatically exchanged within a program without any operator intervention. Kinematic mounts allow for change racks to be taken on and off without the need to relocate afterwards.
Technical Data
Supported Touch Probes
TP20 and TP200
Mounting
Standard
Fixed position offset from the optics
Optional
Automatic deployment mechanisms and articulating heads on select systems
Change Rack
2, 4, or 6-position
| Standard | Optional | |
|---|---|---|
| Available for | SmartScope® E-Series, M-Series, and Quest™ systems | |
| Compatible Metrology Software | ZONE3® or Measure-X® | |
| Supported Touch Probes | TP20 and TP200 | |
| Mounting1 | Fixed position offset from the optics | Automatic deployment mechanisms and articulating heads on select systems |
| Change Rack(s) | 2, 4, or 6-position | |
| XYZ Frame of Reference | Freely interchange touch probe measurements and those taken by other sensors within the same measurement routine | |
| Accessories | Touch Probe Kits, Calibration Kits. Calibration Kit includes certified reference sphere, kinematic mounting base, and calibration certificate. | |
- Renishaw is a registered trademark of Renishaw plc.
- 1. Automatic deployment mechanism and articulating head requires ZONE3 software. On select systems compressed air is required. Air supply pressure: 0.55 MPa; Minimum flow capacity: 10 l/min; Air quality ISO 8573-1:2010 Class 4.3.4 or better. An air dryer kit is optionally available.
