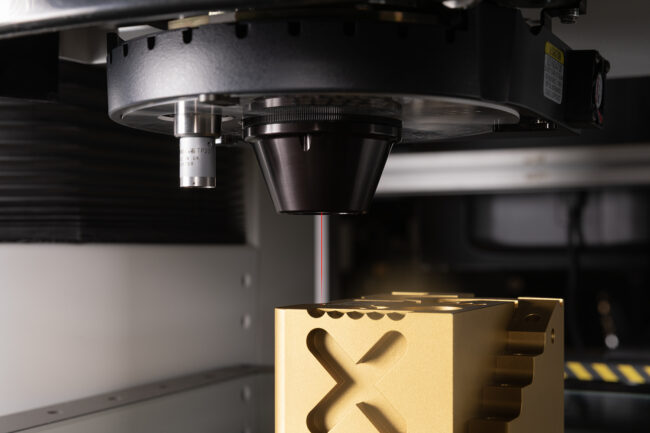

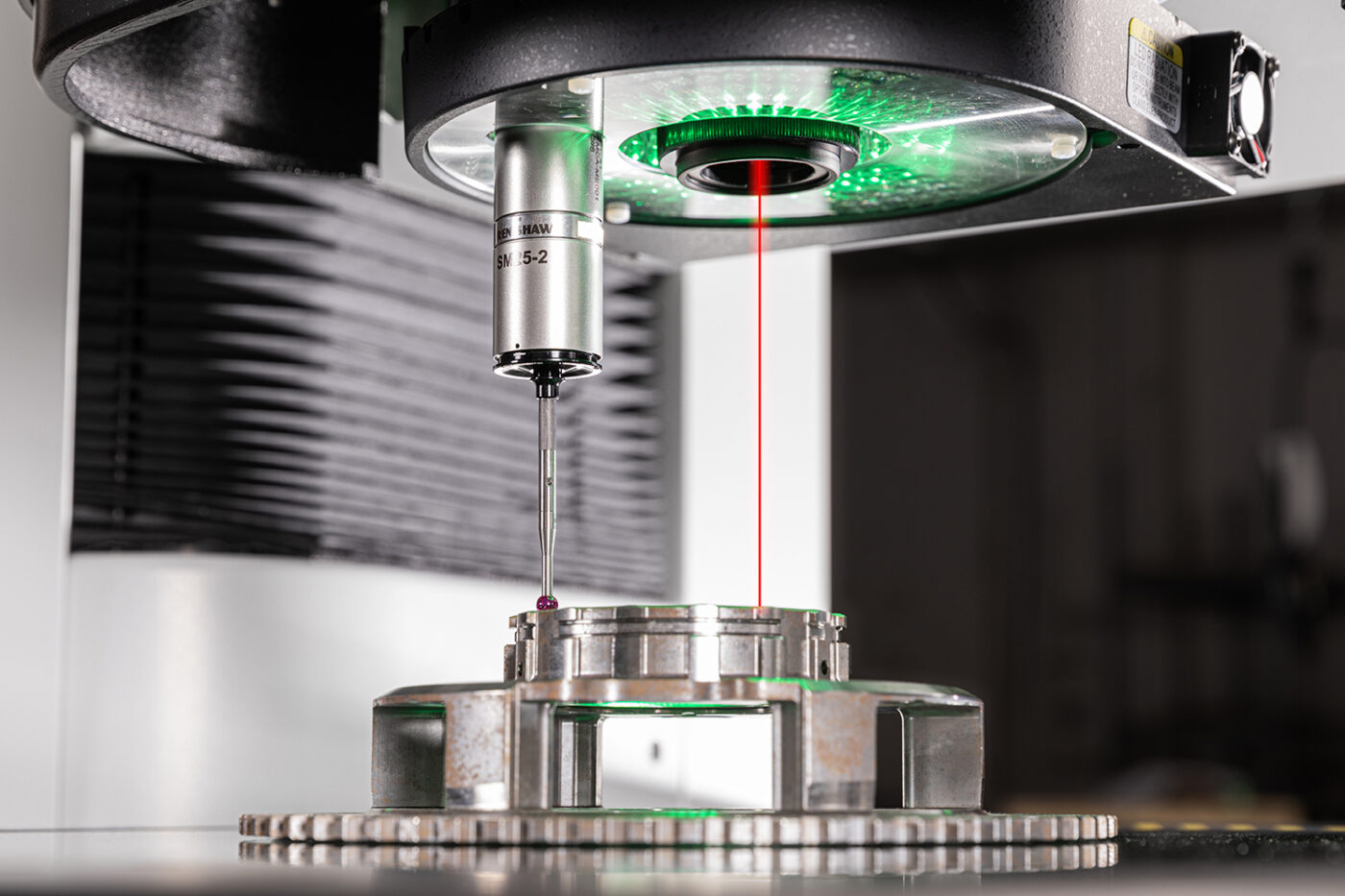

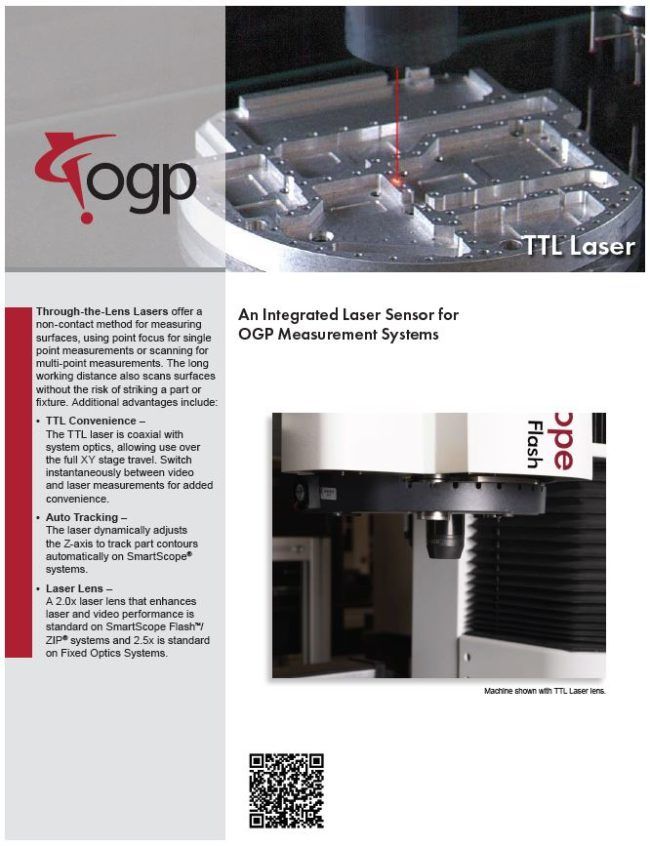

Through the Lens (TTL) Laser

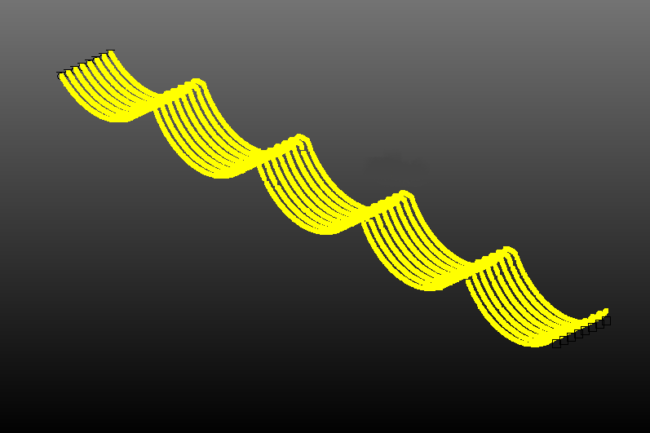

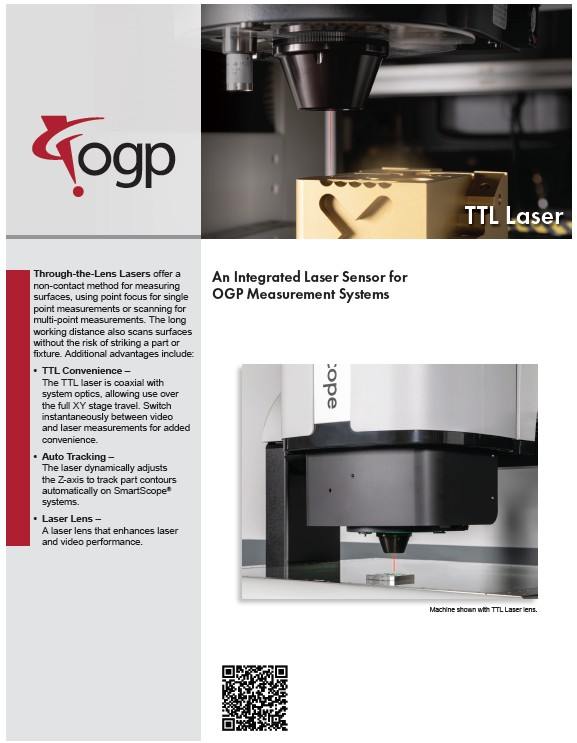

Through-the-Lens Lasers offer a non-contact method for measuring surfaces, using point focus for single-point measurements or scanning for multi-point measurements. TTL lasers offer:
TTL convenience – The TTL laser is coaxial with system optics, allowing use for measurement or as a laser pointer
Use with other sensors – Switch instantaneously between video and laser measurements
Long working distance – Scan surfaces without risk of striking a part or fixture
Auto tracking – The laser dynamically adjusts the Z-axis to track part contours automatically
Laser lens included – A laser lens that enhances laser and video performance is included
Technical Data
| Required Metrology Software | ZONE3® | |
|---|---|---|
| Available for | SmartScope M-Series | |
| Laser Lens | M 6.3 | M 2.1 |
| Working Distance | 36.0 mm | 16.0 mm |
| Measuring Range1 | 500 µm | 75 µm |
| Spot Size2 (nominal) | 7.2 x 5.5 µm | 4.0 x 3.0 µm |
| Resolution3 | 0.3 µm | 0.2 µm |
| Triangulation Angle | 22° | 50° |
- 1. Measuring Range is the Z-range over which the performance of the sensor is linear and calibrated.
- 2. With spot size at best focus.
- 3. Using high quality specular (polished glass) surface, 1σ.
- Safety Considerations
This system is classified as a Class II laser device by IEC 825 (2001). Do not stare directly into the laser source.
