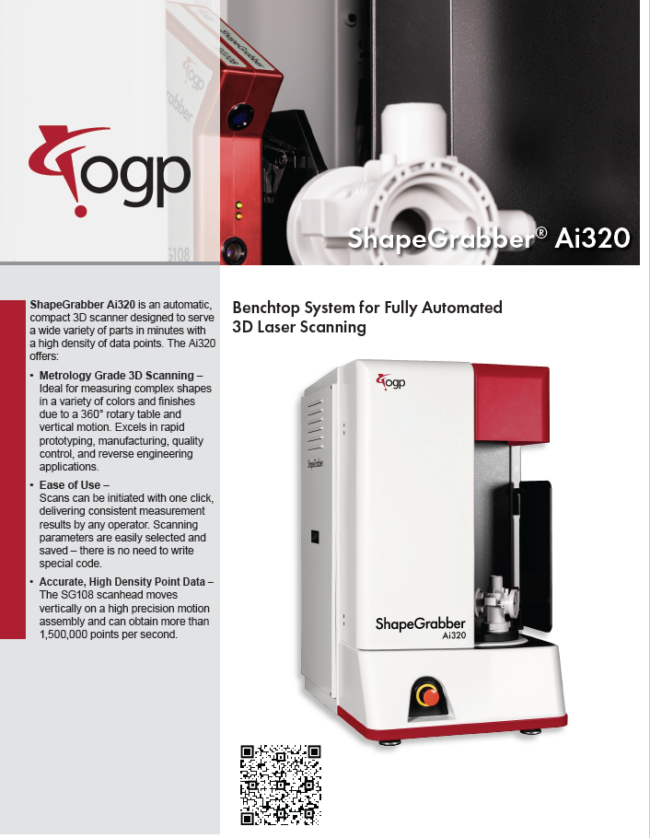

ShapeGrabber Ai320

Benchtop system for fully automated 3D laser scanning

Automated Inspection

Vertical motion and a 360° rotary table for complete surface inspection

Multiple Scan Angles

Optional 25° tilt mechanism for faster, more complete part coverage without part reorientation

Max Scan Volume (mm) Standard

300 L x 100 Ø

ShapeGrabber Ai320 is an automatic, compact 3D scanner designed to serve a wide variety of parts in minutes with a high density of data points. Ai320 offers:

Metrology Grade 3D Scanning – Ideal for measuring complex shapes in a variety of colors and finishes due to a 360° rotary table and vertical motion. Excels in rapid prototyping, manufacturing, quality control, and reverse engineering applications.

Ease of Use – Scans can be initiated with one click, delivering consistent measurement results by any operator. Scanning parameters are easily selected and saved – there is no need to write special code.

Accurate, High Density Point Data– The SG108 scanhead moves vertically on a high precision motion assembly and can obtain more than 1,500,000 points per second.

ShapeGrabber Ai320
ShapeGrabber Laser Scan
Optional 25° Tilt Mechanism for Faster, More Complete Part Coverage

Technical Data

Max Scan Volume (mm)

Standard

300 L x 100 Ø

Data Rate (pts/s)

Standard

155,000 – 1,500,000+

Scanheads

Standard Scanheads
ShapeGrabber Scanheads
