StarLite

Semi-Automatic, Compact, Workbench System

Motorized Zoom Optics

Digital megapixel color camera
coupled with a motorized zoom
lens

Rigid cast metal base and column

StarLite 150’s robust stage provides solid, repeatable performance, even in harsh shop conditions.

XYZ Travel Standard

150 x 75 x 125 mm

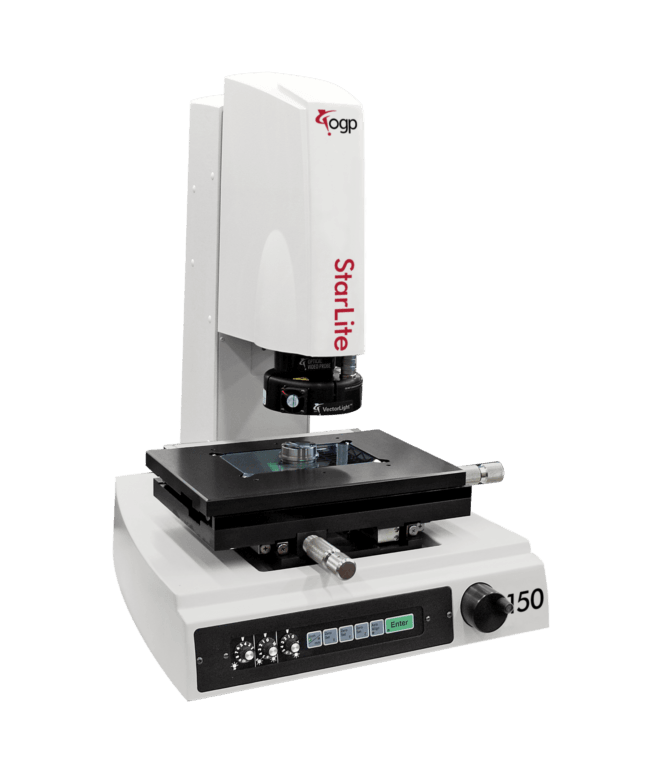

StarLite 150 is compact and reliable video measurement system combining fully automatic measurements with
easy to use manual stage motion. StarLite’s robust stage, motorized zoom optics and high resolution
digital camera provide the accuracy you expect from a high-performance metrology system. StarLite 150 offers:

  • 3-axis (X, Y, Z) measurement capability
  • Digital megapixel color camera coupled with a motorized zoom lens
  • Programmable all LED backlight, square-on surface light, and VectorLight™ programmable ring light for the ultimate lighting flexibility

Technical Data

XYZ Travel

Standard

150 x 75 x 125 mm

Optics

Standard

Motorized zoom; 1.0x lens

Optional

Lens attachements for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

Illumination

Standard

Substage LED profile, coaxial LED surface, VectorLight™ LED ring light

Software
