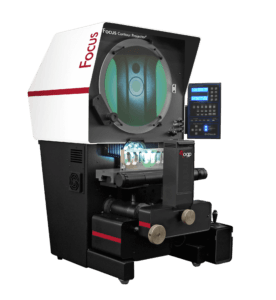

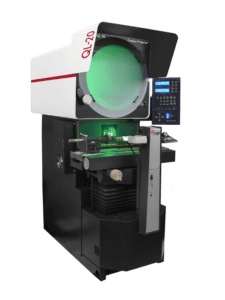

Features | Focus | QL-20 |
Screen Size (viewable) | 14" | 20" |
XY Travel | ||
Standard | 12” x 5” | 15” x 9” |
Optional | – | 15 x 10”, 18” x 9”, or 18” x 10” |
Z Focus Travel | 1.25" | 3” |
XY Drive | ||
Manual | x | – |
Motorized | * | x |
Optics | Telecentric, upright and reversed | Telecentric, upright and un-reversed |
Optical Lens | ||
Lens Mount | Standard 3-position turret | Standard: Fixed lens Optional: Motorized 5-position turret |
Lens Options | 10x, 20x, 31.25x, 50x, 100x | 10x, 20x, 31.25x, 50x, 62.5x, 100x |
Maximum Load Capacity | 45 lb | 350 lb |
Helix Angle Range | ||
Standard | +/- 6.5 degrees | – |
Optional | – | +/- 7.5 degrees |
Throat Clearance | 9" | 19” |
Illumination | ||
Profile | x | x |
Oblique | x | – |
Coaxial | x | * |
Illumination Type | LED | |
Projectron Edge Detection | * | * |
eCAD® | – | * |
VidiProbe | * | * |
Q-Check® DRO | x | x |
Software | ||
Measure-X™ Measure | ** | ** |
Measure-X™ Compare | ** | ** |
Measure-X™ Analyze | *** | *** |
OGP EVOLVE® SPC | * | * |
x– Standard ; * – Optional; ** – Included with VidiProbe; *** – Optional with VidiProbe |
