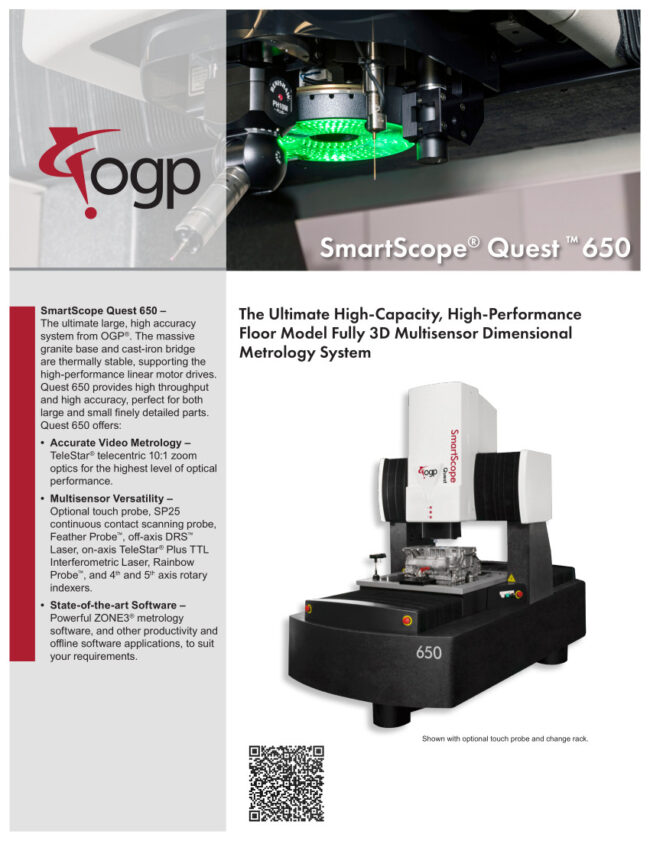

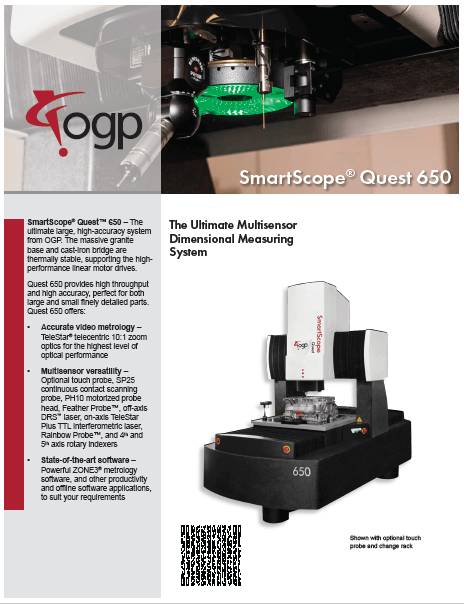

SmartScope Quest 650

The ultimate multisensor dimensional measuring system

Highly Accurate Optics

Fully telecentric and distortion-free 10X zoom lens

Designed-in Accuracy

Massive granite base and thermally stable bridge support high-performance linear motor drives

XYZ Travel Standard

610 x 660 x 400 mm

SmartScope® Quest™ 650 is the largest high-accuracy system. Its massive granite base and thermally stable Meehanite® bridge support high-performance linear motor drives.

SmartScope Quest 650 provides high throughput and high accuracy simultaneously. This system comes standard with TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance. SmartScope Quest 650 provides high accuracy movement of large parts. Quest 650 offers:

Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance

Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement

Multisensor versatility – Optional touch probe, off-axis DRS™ laser, on-axis TeleStar TTL interferometric laser, micro-probes, SP25 continuous contact scanning probe, PH10 motorized probe head, and 4th and 5th axis rotary indexers

Technical Data

XYZ Travel

Standard

610 x 660 x 400 mm

Optics

Standard

10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens

Optional

Focus Grid Projector: LED source
Replacement Lenses: 0.45x, 0.5x, 2.0x, 4.0x
Laser Lenses: 0.45x, 0.5x, 2.0x, 4.0x

Illumination

Patented high performance monochromatic substage profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
