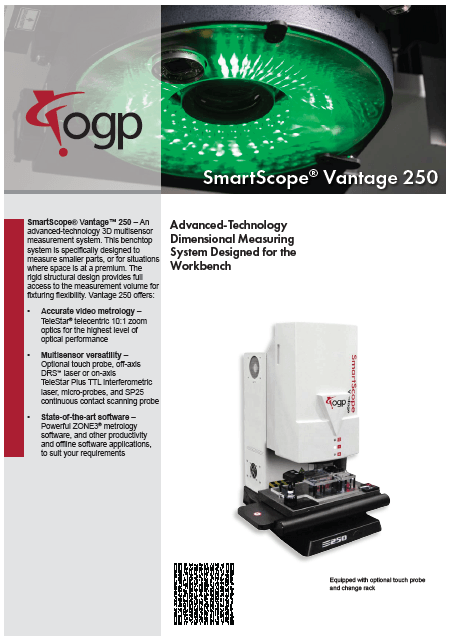

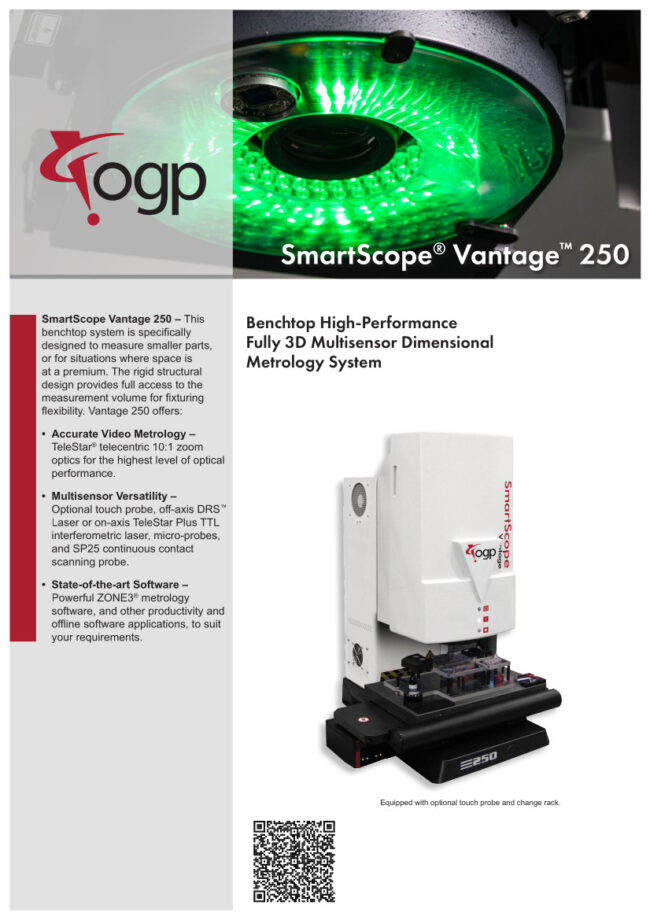

SmartScope Vantage 250
Benchtop High-Performance Fully 3D Multisensor Dimensional Metrology System
XYZ Travel
Standard: 300 x 150 x 200 mm
SmartScope® Vantage 250 is an advanced-technology 3D multisensor measurement system. This benchtop system is specifically designed to measure smaller parts, or for situations where space is at a premium. Its rigid structural design provides full access to the measurement volume for fixturing flexibility. Vantage 250 offers:
Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of
optical performance
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement
Multisensor versatility – Optional touch probe, off-axis DRS™ laser or on-axis TeleStar TTL interferometric laser, micro-probes, and SP25 continuous contact scanning probe
Technical Data
XYZ Travel
Standard
300 x 150 x 200 mm
Optics
Standard
10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens
Optional
Focus Grid Projector: LED source
Replacement Lenses: 0.5x, 2.0x, 4.0x
Laser Lenses: 0.5x, 2.0x, 4.0x
Illumination
Patented high performance substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
Sensors & Accessories
Tactile Sensors
Laser Sensors
Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 300 x 150 x 200 mm | |
| XYZ Scale Resolution | 0.1 μm | 0.05 µm including dual X scales |
| Drive System | DC servo with 4-axis control (X, Y, Z, zoom); with multifunction handheld controller | |
| Worktable | Hardcoat anodized, with fixture holes, removable stage glass, 25 kg recommended max payload | |
| Rotary Axis | Miniature Servo Rotary (MSR™ ), MicroTheta Rotary (MTR™ ) | |
| Optics* | AccuCentric® auto-compensating, fully telecentric zoom, motorized; 1x lens | Focus Grid Projector: LED source Laser Pointer: Not available with optional TTL laser Replacement / Laser Lenses: 0.5x, 2.0x, 4.0x |
| Illumination | Substage LED profile, coaxial LED surface, SmartRing™ LED ring light | Flexible SmartRing light for 0.5x lens, Tungsten Fiber-Optic Ring mounted below or in lieu of SmartRing (1x, 2x, and 4x only) |
| Metrology Camera | Monochrome digital metrology camera | |
| Field of View | 8.1 mm x 6.1 mm (low zoom) to 0.81 mm x 0.61 mm (high zoom) | 13.1 mm x 9.8 mm (0.5x lens), to 0.20 mm x 0.15 mm (4.0x lens) |
| Working Distance | 65 mm | Up to 127 mm (0.5x lens) |
| Sensor Options | Tactile: TP20 or TP200 Touch Probe, SP25 Scanning Probe, Feather Probe™ Non-Contact: TeleStar Plus Interferometric TTL laser, DRS Laser, Rainbow Probe™ |
|
| Software | • ZONE3 Express metrology software • QVI® Portal | Metrology software: ZONE3 Prime, ZONE3 Pro Productivity software: EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC) Offline software: ZONE3 |
| System Controller | Windows® based, with up-to-date processor and on board networking/communication ports | |
| Controller Options | 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 1250 W | |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C; max rate of change 0.5 °C / hour; max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XY Area Accuracy | E2 = (1.8 + 4L/1000) µm | E2 = (1.0 + 6L/1000) µm (requires optional 0.05 µm scale resolution) |
| Z Linear Accuracy | E1 = (2.5 + 5L/1000) µm | E1 = (1.5 + 5L/1000) µm (requires optional TeleStar Plus TTL Laser, DRS Laser, or touch probe) |
- Accuracy is evaluated with a QVI compensation and verification procedure where “L” is measured length in millimeters. Specifications apply within the rated environment. Accuracy specifications are verified with the imaging sensor unless otherwise specified. Standard optical specifications apply at the maximum optical magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 5 kg in the standard measuring plane. The standard measuring plane is defined as a plane that is within 25 mm of the worktable surface. Depending on load distribution, accuracy at maximum payload may be less than standard. This equipment complies with EMC directive EN IEC 61326-1, Class A. *Lenses can be manually interchanged to change magnification and working distance.
