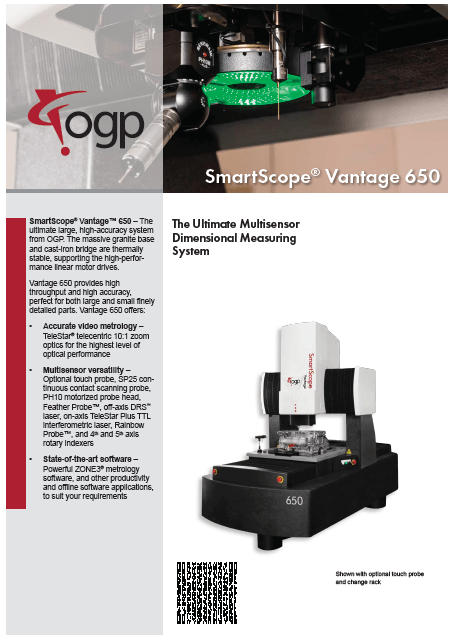

SmartScope Vantage 650
The Ultimate High-Capacity, High-Performance Floor Model Fully 3D Multisensor Dimensional Metrology System
XYZ Travel
Standard: 610 x 660 x 400 mm
SmartScope® Vantage™ 650 is the largest high-accuracy system. Its massive granite base and thermally stable Meehanite® bridge support high-performance linear motor drives.
SmartScope Vantage 650 provides high throughput and high accuracy simultaneously. This system comes standard with TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance. SmartScope Vantage 650 provides high accuracy movement of large parts. Vantage 650 offers:
Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement
Multisensor versatility – Optional touch probe, off-axis DRS™ laser, on-axis TeleStar TTL interferometric laser, micro-probes, SP25 continuous contact scanning probe, PH10 motorized probe head, and 4th and 5th axis rotary indexers
Technical Data
XYZ Travel
Standard
610 x 660 x 400 mm
Optics
Standard
10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens
Optional
Focus Grid Projector: LED source
Replacement Lenses: 0.45x, 0.5x, 2.0x, 4.0x
Laser Lenses: 0.45x, 0.5x, 2.0x, 4.0x
Illumination
Patented high performance monochromatic substage profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
Sensors & Accessories
Tactile Sensors
Laser Sensors
Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 610 mm x 660 mm x 400 mm | |
| XYZ Scale Resolution | 0.1 μm | 0.05 µm |
| Drive System | XY liquid cooled linear motor drives; Z and zoom, DC servo; multifunction handheld controller | |
| Worktable | Hardcoat anodized, with fixture holes, removable stage glass, 100 kg recommended max payload | |
| Rotary Axis | Miniature Servo Rotary (MSR™), MicroTheta Rotary (MTR™), Heavy Duty Rotary (HDR), High Precision Rotary (HPR™), Dual Rotary | |
| Optics* | AccuCentric® auto-compensating, fully telecentric zoom, motorized; 1x lens | Focus Grid Projector: LED source Laser Pointer: Not available with optional TTL Laser Replacement / Laser Lenses: 0.45x, 0.5x, 2.0x, 4.0x |
| Illumination | Substage LED profile, coaxial LED surface, SmartRing™ LED ring light | Flexible SmartRing light for 0.45x and 0.5x lenses, Tungsten Fiber-Optic Ring in lieu of SmartRing (1x lens only) |
| Metrology Camera | Monochrome digital metrology camera | |
| Field of View | 8.1 mm x 6.1 mm (low zoom) to 0.81 mm x 0.61 mm (high zoom) | 14.6 mm x 11.0 mm (0.45x lens), to 0.20 mm x 0.15 mm (4.0x lens) |
| Working Distance | 65 mm | Up to 200 mm (0.45x lens) |
| Sensor Options | Tactile: TP20 or TP200 Touch Probe, SP25 Scanning Probe, Feather Probe, PH10 motorized probe head Non-Contact: TeleStar Plus Interferometric TTL Laser, DRS Laser, Rainbow Probe |
|
| Software | • ZONE3 Express metrology software • QVI® Portal | Metrology software: ZONE3 Prime, ZONE3 Pro Productivity software: SmartFit® 3D, EVOLVE® Suite (Design, EVOLVE SPC, Manufacturing, SmartProfile® ) Offline software: ZONE3 |
| System Controller | Windows® based, with up-to-date processor and on board networking/communication ports | |
| Controller Options | 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Power Requirements | 200-240 VAC, 50/60 Hz, 1 phase, 2600 W | |
| Compressed Air Requirements | Air supply pressure: 0.55 MPa; Minimum Flow capacity: 200 l/min; Air quality ISO 8573-1:2010 Class 4.3.4 or better | Air Dryer kit |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C; max rate of change 1 °C / hour; max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XYZ Volumetric Accuracy | E3 = (1.8 + 5L/1000) µm | E3 = (1.2 + 5L/1000) µm (requires optional 0.05 µm scales) |
| XY Area Accuracy | E2 = (1.5 + 4L/1000) µm | E2 = (1.0 + 4L/1000) µm (requires optional 0.05 µm scales) |
| Z Linear Accuracy | E1 = (2.5 + 5L/1000) µm | E1 = (1.5 + 5L/1000) µm (requires optional TeleStar Plus TTL Laser, DRS Laser, or touch probe) |
- Accuracy is evaluated with a QVI verification procedure where “L” is measured length in millimeters. Specifications apply within the rated environment. Standard optical specifications apply at the maximum optical magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 10 kg in the standard measuring plane. The standard measuring plane is defined as a plane that is within 25 mm of the worktable surface. Depending on load distribution, accuracy at maximum payload may be less than standard. On-site verification of volumetric accuracy is optional. This equipment complies with EMC directive EN IEC 61326-1, Class A. *Lenses can be manually interchanged to change magnification and working distance.
Last updated: May 2023
