Lazer 200

NON-CONTACT, SELF-CONTAINED LASER METROLOGY SYSTEM

DRS™ Laser

High quality non-contact laser scans of critical part surfaces

On-Axis Video

Locate part, set datums, and choose start and stop points

XYZ Travel (mm) Standard

200 x 200 x 100

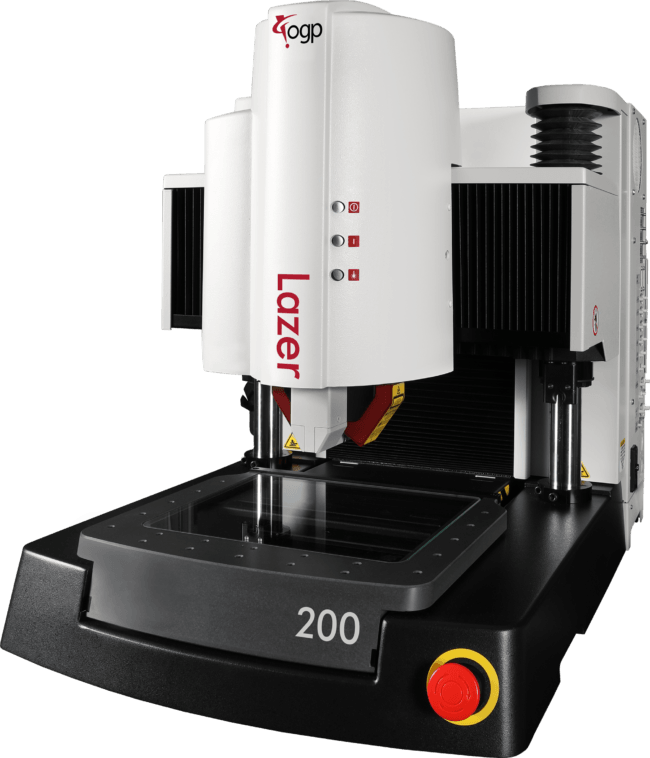

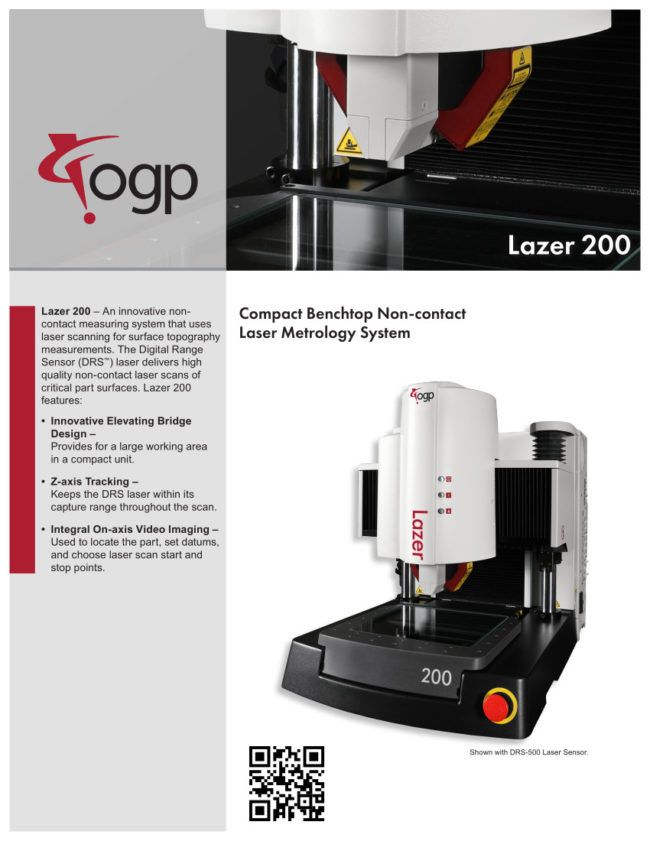

The Lazer 200 is an innovative non-contact measuring system that uses laser scanning and video support for surface topography measurements.

The Digital Range Sensor (DRS™) laser delivers high quality non-contact laser scans of critical part surfaces.

The Lazer features a mechanically innovative “elevated bridge” design that creates the most compact system of any machine with comparable travel

Chassis axial straightness and perpendicularity are machined in Z-axis travel keeps the DRS laser within its capture range throughout the scan

Integral on-axis video imaging is used to locate the part, set datums, and choose laser scan start and stop points

Technical Data

XYZ Travel (mm)

Standard

200 x 200 x 100

Illumination

Standard

Linear white LED surface, LED substage

Laser Scanning Resulution

Standard

0.125 µm

Sensors & Accessories

Laser Sensors
DRS Lasers
Accessories
Rotary Indexers
