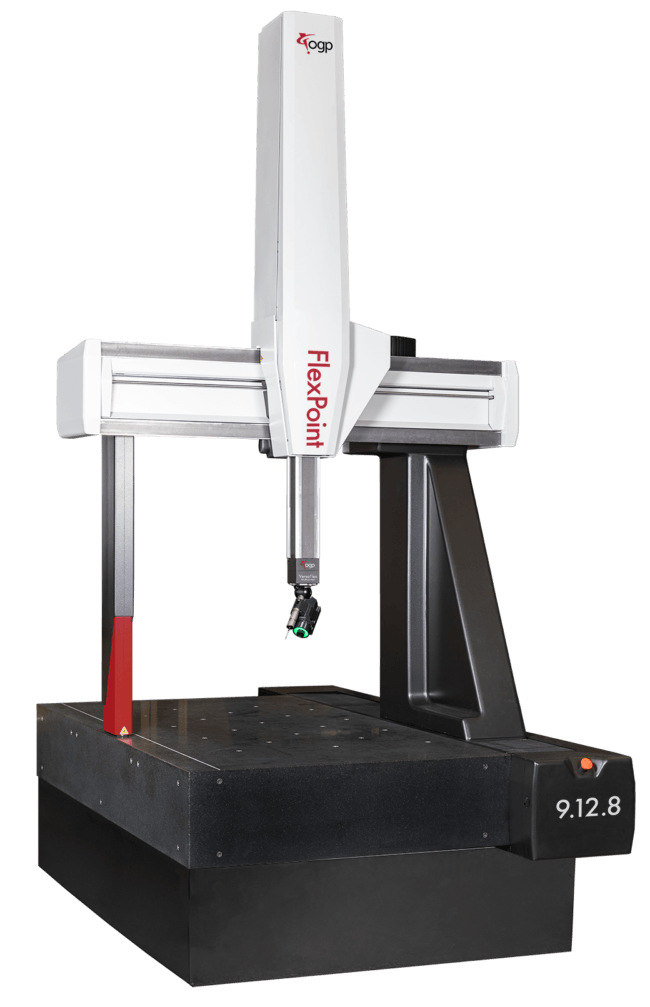

FlexPoint 7, 9 and 12-Series
A unique blend of precision, flexibility, and speed, to solve a wide variety of dimensional measurement problems for large format parts
XYZ Travel
Standard: 7-Series – 700 x 700 x 600 mm 9-Series – 900 x 1200 x 800 mm 12-Series – 1200 x 1500 x 1000 mm
FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems for large format parts.
The Multisensor Advantage – FlexPoint supports a wide range of tactile and non-contact sensors including SP25, TeleStar® Probe and SmartProbe® video sensor.
High Quality Construction – Stable transport design with carefully selected materials, rigid body members, air bearings on all axes, and active temperature compensation, to perform in shop floor environments.
Precise Compensation – Factory volumetric compensation using the Etalon® LaserTRACER system ensures the lowest possible uncertainty. In the field, machine accuracy verification can be performed according to ISO 10360.
Technical Data
XYZ Travel
Standard
7-Series – 700 x 700 x 600 mm
9-Series – 900 x 1200 x 800 mm
12-Series – 1200 x 1500 x 1000 mm
Optional
7-Series – Y axis, 1100 or 1500 mm
9-Series – Y axis, 1600 or 2000 mm
12-Series – Y axis, 2000 or 3000 mm
Optics
Fixed focal length single magnification objective lens with 12.5 x 9.5 mm field-of-view.
Illumination
Green LED oblique light with sector and intensity control
Sensors & Accessories
Laser
Optics
Accessories
| Standard | Optional | |
|---|---|---|
| Sensor Options1 | PH10MQ PLUS with VersaFlex sensor array Tactile: SP25 Scanning Probe Non-Contact: SmartProbe Video Sensor |
Non-Contact: TeleStar Probe |
| Tactile Sensor Options | SP25 scanning probe kit including SM25-2 module, SH25-2 stylus holder (x2), 3 mm x 21 mm stylus (A-5000-3553), and 5 mm x 21 mm stylus (A-5000-7630) |
3 or 6 position change rack; additional SM25-1, SM25-3, SM25-4, SM25-5 scanning modules, stylus holders, and styli |
| Optics | Fixed optical magnification with 12.5 mm x 9.5 mm field of view and digital zoom | |
| Illumination | LED ring light with sector and intensity control | |
| Camera | 5 megapixel monochrome digital metrology camera | |
| Scale Resolution | 0.1 µm | |
| Rotary Axis | Miniature Servo Rotary (MSR™ ), MicroTheta Rotary (MTR™ ), Heavy Duty Rotary (HDR) |
|
| Software2 | • ZONE3 Express metrology software • QVI® Portal |
Metrology software: ZONE3 Prime or Pro Productivity software: EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC) Offline software: ZONE3 |
| System Controller | Windows® based with up-to-date processor and onboard networking/communication ports | |
| Controller Options | Ergonomic sit/stand operator workstation | 24” flat panel LCD monitor or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) |
| Accessories | Certified 25 mm sphere, video compensation accessory kit | Air dryer kit |
| Performance and Installation | Factory volumetric compensation and verification of all standard ISO 10360 specifications; on-site installation & verification of standard ISO 10360 specifications; 8 machine and 2 workpiece temperature sensors. |
Premium Performance Package: Factory verification of all premium ISO 10360 specifications; on-site verification of premium ISO 10360 specifications; ZONE3 Prime metrology software; 6 additional machine temperature sensors. |
- 1. PEM1 extension bar (A-1076-0070) included standard for mounting of VersaFlex sensor array.
- 2. ZONE3 Prime included with optional Premium Performance Package.
System Performance and Accuracy Specifications1
| FlexPoint Model | 7-Series | 9-Series | 12-Series | |
|---|---|---|---|---|
| VersaFlex Performance | ||||
| SP25 Tactile Probe (per ISO 10360-5:2020)2,3 | ||||
| Single stylus form error | MPE(P[Form.Sph.1x25:SS:Tact]) | 2.4 µm | 2.5 µm | 3.0 µm |
| Scanning mode form error | MPE(P[Form.Sph.Scan:PP:Tact]) | 3.6 µm | 3.9 µm | 4.1 µm |
| Time for scanning mode form error | MPL( τ [Sph.Scan:PP:Tact]) | 65 sec | 65 sec | 70 sec |
| SP25 Tactile Probe Performance (per ISO 10360-2:2009)2,3,6,7 | ||||
| Standard: | ||||
| Length measurement errors | MPE(E0) | (3.0 + 5L/1000) µm | (3.5 + 5L/1000) µm | (4.0 + 5L/1000) µm |
| Repeatability of length measurement errors | MPL(R0) | 2.0 µm | 2.5 µm | 3.0 µm |
| Premium (Optional): | ||||
| Length measurement errors | MPE(E0) | (2.5 + 3L/1000) µm | (2.5 + 3L/1000) µm | (3.0 + 3L/1000) µm |
| Repeatability of length measurement errors | MPL(R0) | 2.0 µm | 2.0 µm | 2.5 µm |
| Motion Dynamics | ||||
| Velocity | CNC (3D Vector) | Max. 500 mm/s | ||
| Rated Environment | ||||
| Temperature range | 18 - 22 °C, stable to ±1 °C | |||
| Maximum rate of temperature change | 1.0 °C/h - 2.0 °C/24h | |||
| Maximum vertical temperature gradient | 1.0 °C/m | |||
| Humidity range | 30 - 80% | |||
| Ambient vibration | <500µg below 15 Hz | |||
| Safe Operating Environment | ||||
| Temperature range | 15 - 30 °C, non-condensing | |||
| System Utilities | ||||
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 900 W | |||
| Compressed Air Requirements | Air supply pressure: 0.6 MPa; Minimum flow capacity: 200 NI/min; Air quality ISO 8573-1:2010 Class 4.3.4 or better | |||
- 1. Specifications apply to thermally stable system in the rated environment, operating in accordance with the procedures in the operating manual. Accuracy applies to an evenly distributed load up to 10% of maximum workpiece weight placed within the rated measuring range. Depending on load distribution, accuracy at maximum payload may be less than standard.
- 2. Using SP25 with SM25-2 module with 3.0 mm x 21 mm A-5000-3553 stylus.
- 3. Target tip deflection of 0.2 mm, filter 50 UPR.
- 4. Where measurements are taken in a region of the sphere within a cone angle of 150°.
- 5. Specifications apply at a PH10 position of A-axis 0° and B-axis 0°.
- 6. Where L = measuring length in mm.
- 7. Artifact may be low expansion with a CTE no greater than 1 × 10-6 / °C and with a CTE expanded uncertainty (k = 2) no greater than 0.5 × 10-6 / °C.
System Dimensions
| Model | Measuring Range | Overall Dimensions | Maximum Workpiece Size | Bridge Clearance | Table Height | Min. Top Clearance | Machine Weight (kg) | Maximum Workpiece Weight** (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | W | L | H | PX | PY | PZ | BC | TH | TC | |||
| 7.7.6 | 700 | 700 | 600 | 1470 | 1630 | 2790 | 825 | 1230 | 620 | 854 | 650 | 100 | 1200 | 500 |
| 7.11.6 | 700 | 1100 | 600 | 1470 | 2190 | 2790 | 825 | 1630 | 620 | 854 | 650 | 100 | 1500 | 800 |
| 7.15.6 | 700 | 1500 | 600 | 1470 | 2600 | 2790 | 825 | 2030 | 620 | 854 | 650 | 100 | 1800 | 1000 |
| 9.12.8 | 900 | 1200 | 800 | 1700 | 2540 | 3240 | 1020 | 1980 | 820 | 1054 | 700 | 100 | 2600 | 1200 |
| 9.16.8 | 900 | 1600 | 800 | 1700 | 2980 | 3240 | 1020 | 2380 | 820 | 1054 | 700 | 100 | 3000 | 1500 |
| 9.20.8 | 900 | 2000 | 800 | 1700 | 3380 | 3240 | 1020 | 2780 | 820 | 1054 | 700 | 100 | 3400 | 1800 |
| 12.15.10 | 1200 | 1500 | 1000 | 2000 | 2980 | 3740 | 1320 | 2280 | 1020 | 1254 | 800 | 100 | 4600 | 2000 |
| 12.20.10 | 1200 | 2000 | 1000 | 2000 | 3380 | 3740 | 1320 | 2780 | 1020 | 1254 | 800 | 100 | 5600 | 2500 |
| 12.30.10 | 1200 | 3000 | 1000 | 2000 | 4500 | 3740 | 1320 | 3780 | 1020 | 1254 | 800 | 100 | 7500 | 3000 |
- * As defined in the drawing below. Actual measuring volume is dependent on selected sensor and articulation. Minimum 600 mm clearance around machine required for service access.
- ** Evenly distributed load
