XYZ Travel (mm)
Standard:: 500 x 450 x 200 mm

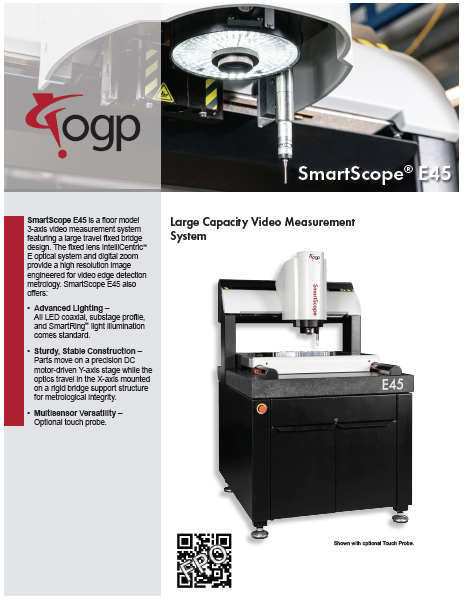

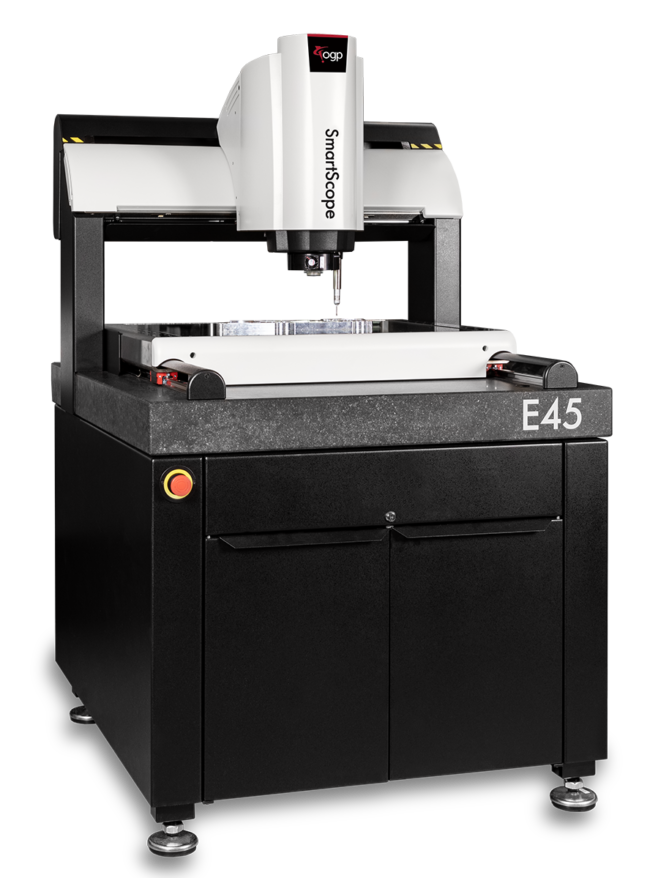

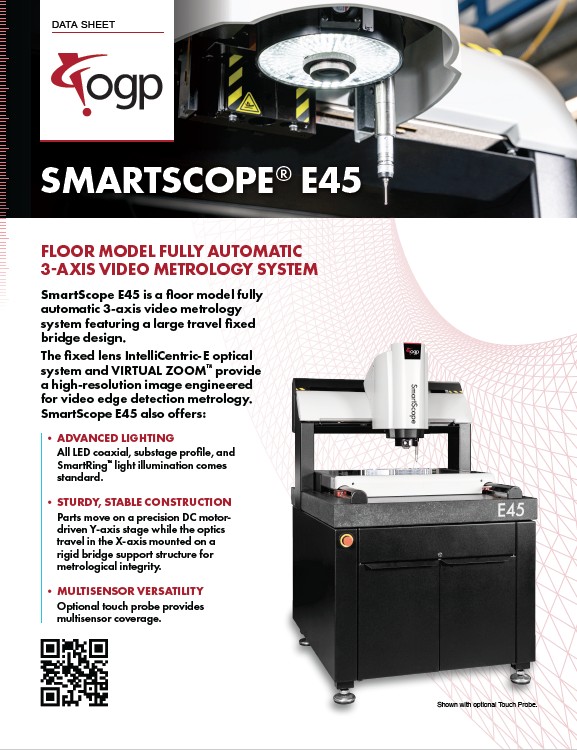

SmartScope® E45 sets the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™-E Optical System and VIRTUAL ZOOM™ provide a high resolution image engineered for video edge detection metrology.

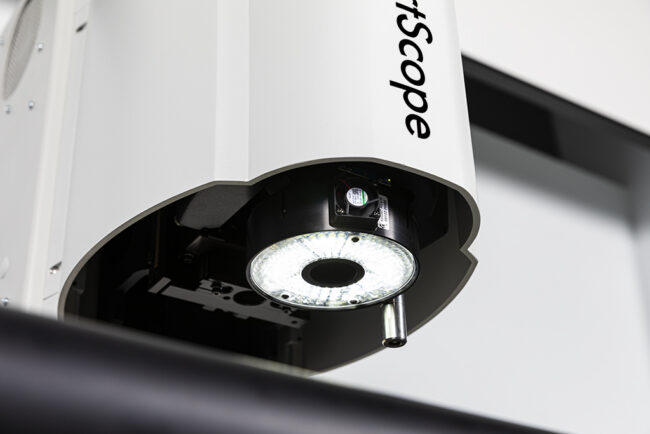

Advanced Lighting – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – Parts move on a precision DC motor-driven Y-axis stage while the optics travel in the X-axis mounted on a rigid bridge support structure for metrological integrity.

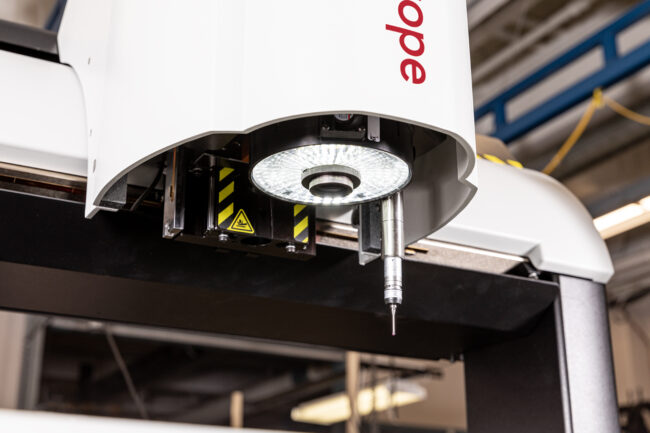

Multisensor Versatility – Optional TP-20 and TP-200 touch probes
Technical Data
XYZ Travel (mm)
Standard:
500 x 450 x 200 mm
Optional
Extended Y axis, 610 mm; extended Z axis, 300 mm
Optics
Standard
Fixed optical magnification with VIRTUAL ZOOM, E 8.10 standard lens
Optional
E 4.5 high magnification lens, E 16.20 wide field-of-view / long working distance lens
Illumination
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light
Sensors & Accessories
Tactile Sensors
Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 500 x 450 x 200 mm | Extended Y-axis: 610 mm Extended Z-axis: 300 mm |
| XYZ Scale Resolution | 0.1 μm | |
| Drive System | DC servo with 3-axis control (X, Y, Z) and 3-axis joystick controller | Multifunction handheld controller (in lieu of joystick) |
| Worktable | Nickel plated steel with fixture holes and removable stage glass; 65 kg recommended max payload | |
| Rotary Axis | Miniature Servo Rotary (MSR™ ), MicroTheta Rotary (MTR™ ) | |
| Optics1 | Fixed optical magnification with VIRTUAL ZOOM, E 8.10 standard lens | Replacement Lenses: E 16.20 Wide Field-of-View/Long Working Distance, E 4.5 High Magnification |
| Illumination | Substage LED profile, coaxial LED surface, SmartRing LED ring light | Conical SmartRing (included with E 4.5 lens) |
| Metrology Camera | 6 megapixel color digital metrology camera | |
| Field of View | 7.0 mm x 5.1 mm | E 16.20: 14.0 mm x 10.4 mm E 4.5: 3.5 mm x 2.6 mm |
| Minimum Feature Size2 | 10 µm | E 16.20: 20 µm E 4.5: 5 µm |
| Working Distance | 62 mm | E 16.20: 110 mm E 4.5: 31 mm |
| Sensor Options | Tactile: TP20 or TP200 Touch Probe | |
| Software | Measure-X metrology software, QVI® Portal | Metrology Software: ZONE3 Express, Prime, or Pro in lieu of or in addition to Measure-X Productivity Software: Measure-X Analyze, EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC) Offline Software: Measure-X, ZONE3 |
| System Controller | Windows® based with up-to-date processor and onboard networking/communication ports | High-Performance Controller |
| Controller Options | 24” flat panel LCD monitor or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Accessories | Digital I/O Automation Interface | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 700 W | |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XY Area Accuracy | E2 = (2.8 + 5L/1000) | |
| Z Linear Accuracy | E1 = (3.8 + 5L/1000) μm | E1 = (2.8 + 5L/1000) μm (requires optional E 4.5 lens) |
- Accuracy is evaluated with a QVI compensation and verification procedure where "L" is measured length in millimeters. Specifications apply within the rated environment. Standard optical specifications apply at the highest magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 10 kg in the standard measuring plane. The standard measuring plane is defined as a plane that is within 25 mm of the worktable surface. Depending on load distribution, accuracy at maximum payload may be less than standard. Factory and on-site verification of enhanced Z accuracy specifications are quoted on request.
- 1. Lenses can be manually interchanged to change magnification and working distance.
2. Based on width measurement of USAF resolution test chart in best focus at the highest magnification. For reference only.
