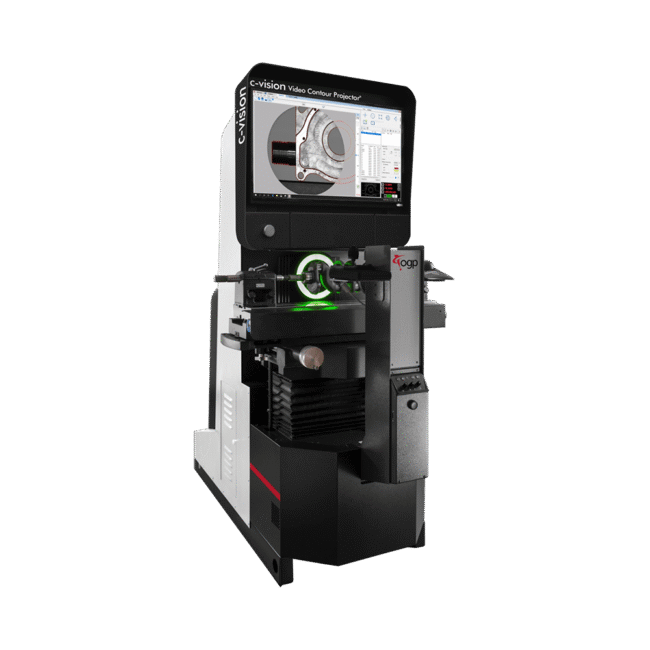

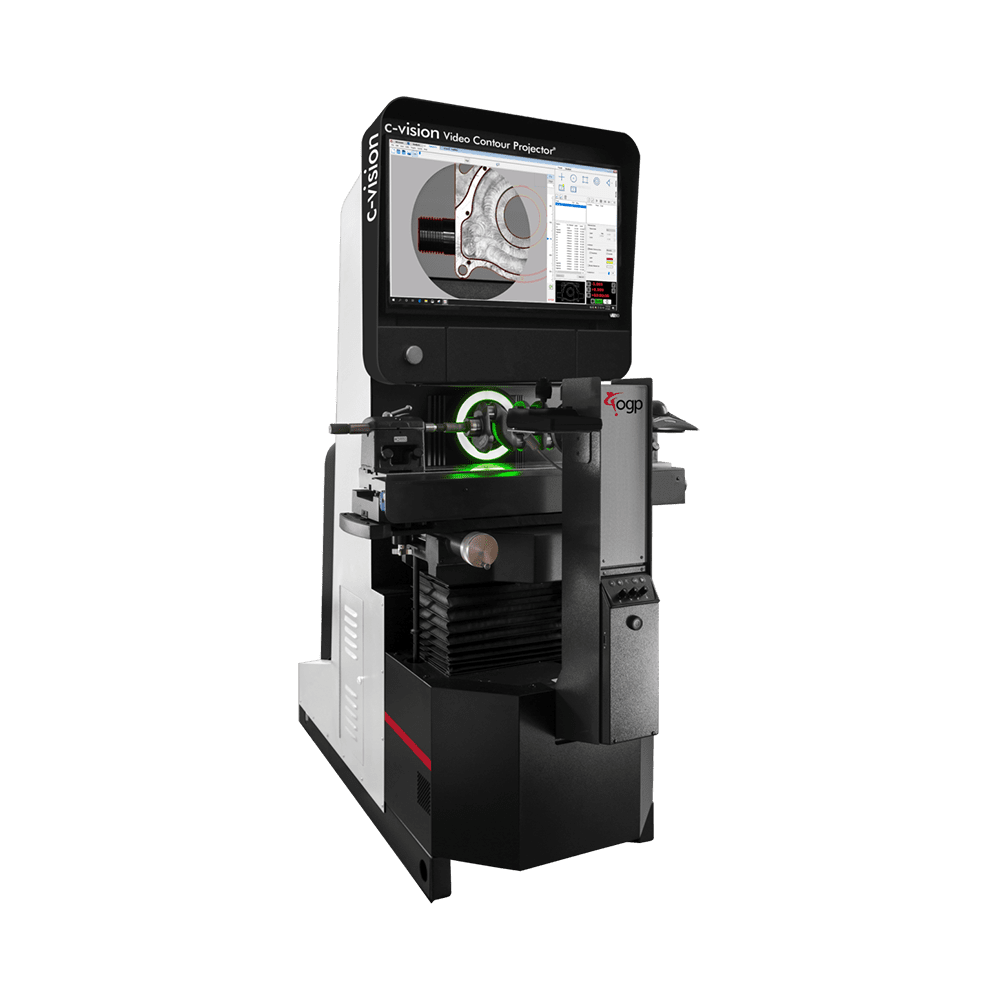

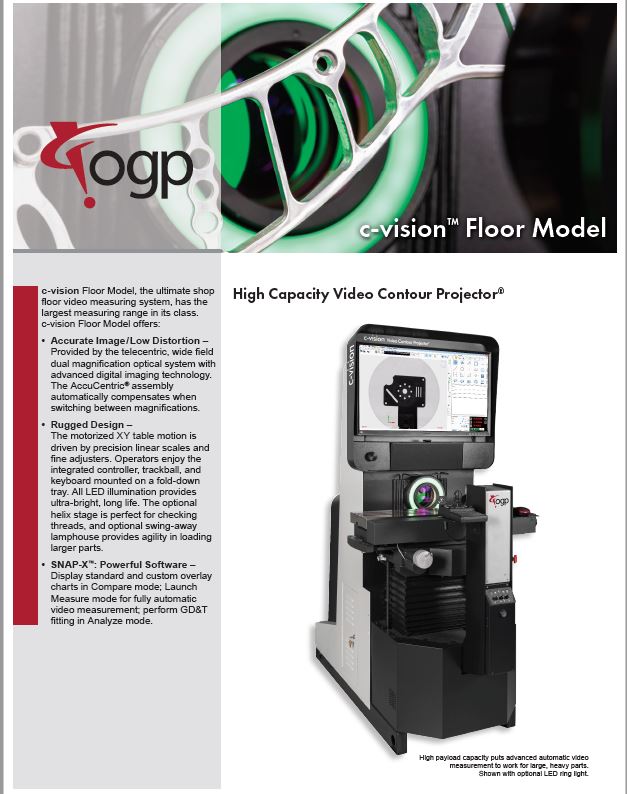

c-vision Floor Model Video Contour Projector
The ultimate, shop-floor hardened, high payload capacity video contour projector
XYZ Travel
Standard: 15” x 9” x 2”
c-vision™ Floor Model Video Contour Projector® – the ultimate shop floor measuring system. Its high payload capacity puts advanced automatic video measurement to work for large, heavy parts. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy. c-vision Floor Model offers:
Accurate Image with exceptionally low distortion over 4-inch field of view viewing area – Telecentric optics optical system with advanced digital imaging technology, dual magnification with motorized turret and up to 4 inches large field of view and 3 inch large depth of field
Shop hardened and convenient – Tough construction, high load capacity, and large viewing screen for shop floor use. Includes a large travel 15” x 9” motorized XY table motion with precision linear scales and manual fine adjusters as well as integrated controller with keyboard mounted on a convenient fold-down tray
Create and run measurement routines, perform “walk-up and measure” tasks as well as fitting the measurement data to 2D CAD for profile and GD&T analysis – Measure-X Compare virtual chart gage software displays both standard and custom overlay charts
Technical Data
XYZ Travel
Standard
15” x 9” x 2”
Optional
15” x 10” x 2”
18” x 9” x 2”
18” x 10” x 2”
Optics
Standard
Telecentric, upright and corrected image with 4-inch low mag field of view and 4X high mag lens
Optional
10X high mag lens in lieu of 4X
Illumination
Standard
Profile Light
Optional
Coaxial Light
Oblique Surface Illumination
Worktable
Standard
Motorized, heavy-duty nickel-clad cast-iron with dovetail slot
Optional
±7.5° helix angle range
Sensors & Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 15” x 9” x 2” | 15” x 10” x 2” 18” x 9” x 2” 18” x 10” x 2” |
| XY Scale Resolution | 0.00004” | 0.00002” |
| Drive System | Motorized with variable speed joystick control and manual fine adjustment | |
| Worktable | Heavy-duty nickel-clad cast-iron worktable, 32” x 8”, with three dovetail fixturing slots with 350 lb load capacity | |
| Helix Angle Range | ± 7.5° with pivoting worktable assembly and zero stop | |
| Throat Clearance | 16” | |
| Optics | Dual magnification with six field of view sizes, fully telecentric, long depth of field, upright and fully corrected image | |
| Illumination | LED profile light with continuously variable intensity | LED oblique 8-sector ring light; LED coaxial surface light |
| Magnification Lenses | Low Magnification Lens 4”Field of View (FOV) 2” Depth of Field (DOF) 6” Working Distance (WD) 4x High Magnification Lens 1” Field of View (FOV) 0.4” Depth of Field (DOF) 6”Working Distance (WD) |
10x High Magnification Lens (factory installed, in lieu of 4x lens) 0.4” Field of View (FOV) 0.08” Depth of Field (DOF) 6” Working Distance (WD) |
| Metrology Camera | Large field megapixel metrology camera | |
| Software | Measure-X Measure and Compare | Measure-X Analyze, Measure-X Offline, EVOLVE® SPC |
| System Controller | Standard system controller with networking and communication ports | |
| Controller Options | 32” flat panel LCD monitor, keyboard, 3-button mouse | Side-mounted second monitor |
| Accessories | Motorized rotary indexer; Overhead light shield; Calibration reticles; Swing away lamphouse; Rotary vise; Staging centers and V-blocks | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 1050 W | |
| Safe Operating Environment | 59-86° F, non-condensing | |
| Rated Environment | Temperature 64-72 °F, stable to ± 2 °F, max rate of change 2 °F/hour, max vertical gradient of 1.5 °F/yard; 30-80% humidity; vibration <0.001g below 15 Hz |
|
| Stage Accuracy (E2 ) | (300 + 10L) µinch | |
| Field of View Accuracy (E2 ) | Low Mag: 0.0003” High Mag 4x: 0.00016” High Mag 10x: 0.00012” |
|
- Accuracy is evaluated with a QVI® compensation and verification procedure where “L” is measured length in inches. Specifications apply within the rated environment. Standard optical specifications apply at the maximum optical magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 11 lb in the standard measuring plane. The standard measuring plane is defined as perpendicular to the optical axis within 0.02 inch, and within 0.20 inch of best focus. Depending on load distribution, accuracy at maximum payload may be less than standard.
Last updated: April 2025
