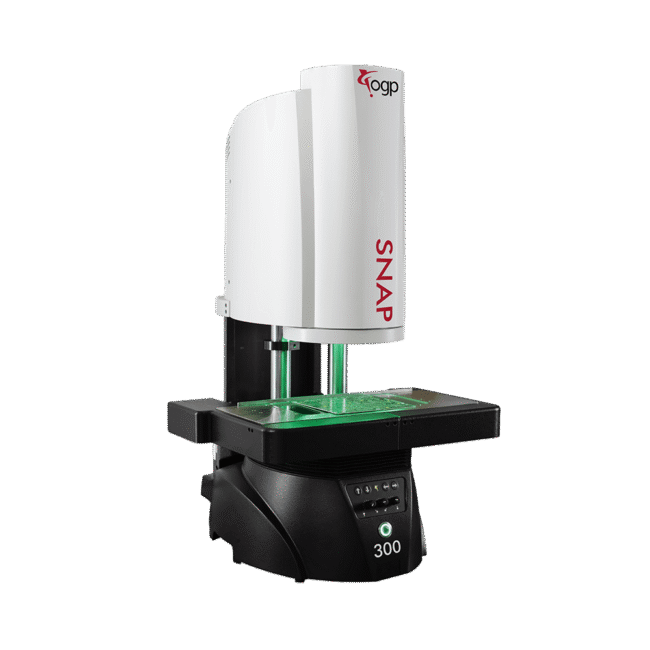

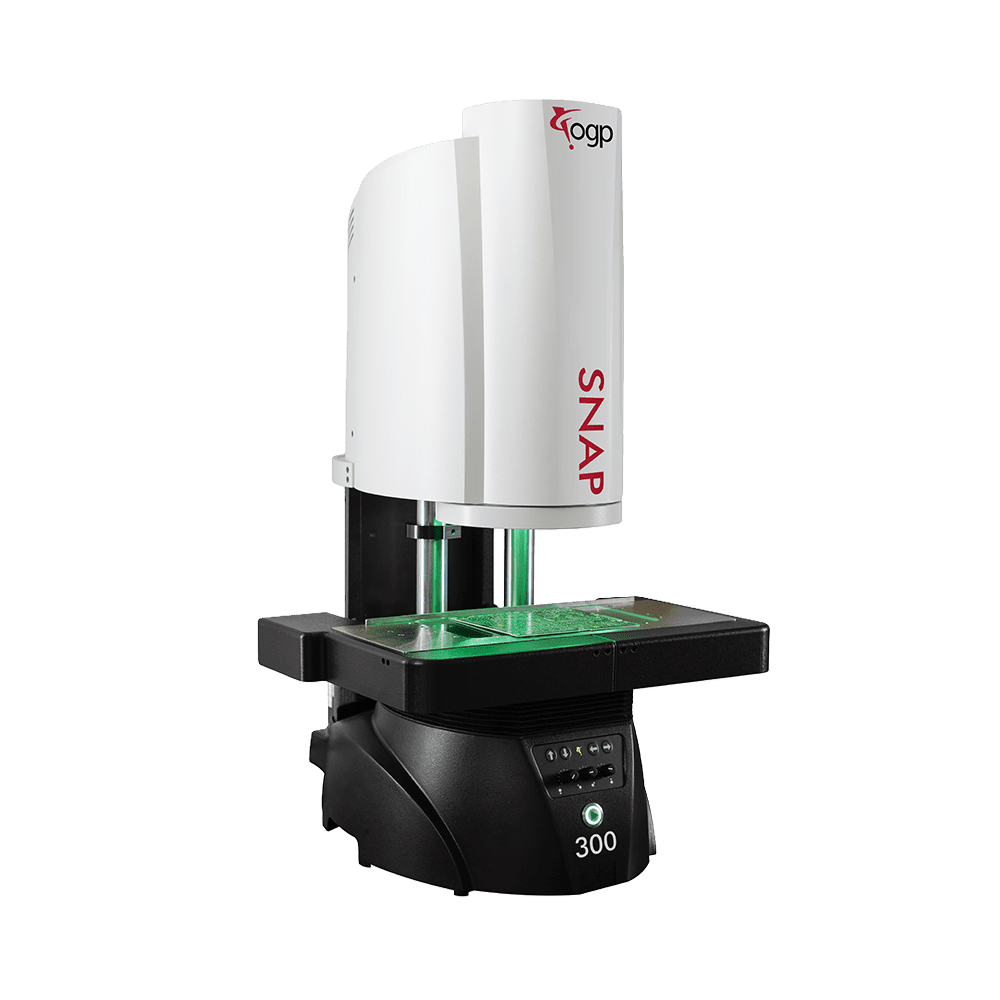

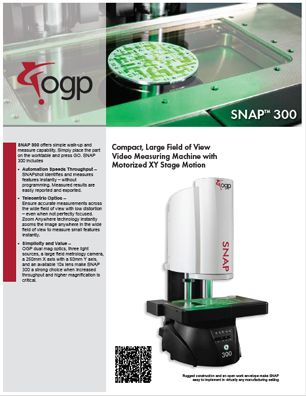

SNAP 300
Compact, Large Field of View Video Measuring Machine with Motorized XY Stage Motion
Maximum measuring range (mm)
Standard: 250 x 150 mm
SNAP™ 300 is a compact unit equipped with a Large FOV Telecentric lens and a motorized stage with a 250 x 150 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric dual magnification optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Motorized axes with up to 250 x 150 mm measuring range
- Measure-X Metrology Software
- Optional ZONE3 Metrology Software
Technical Data
Maximum measuring range (mm)
Standard
250 x 150 mm
Optics
Standard
Telecentric, dual optical magnification with 100 mm low mag field of view and 4X high magnification lens
Optional
10X high mag lens in lieu of 4X lens
Illumination
All LED monochromatic substage profile light, programmable 8 sector ring light, and coaxial through-the-lens surface light.
Sensors & Accessories
Accessories
| Standard | Optional | |
|---|---|---|
| Measuring Unit | Rigid, cast aluminum base; nickel plated worktable, with fixture holes, removable stage glass, 4 kg recommended max payload | |
| Stage | Motorized 150 mm X, 50 mm Y, and 75 mm Z axis (focus) | |
| Maximum Measuring Range (XY) | 250 mm x 150 mm | |
| Rotary Axis | Miniature Servo Rotary (MSR™ ) | |
| Optics | Telecentric, dual optical magnification with 4x high magnification lens | Telecentric, dual optical magnification 10x high magnification lens in lieu of 4x lens |
| Illumination | Substage LED profile, coaxial LED surface, and programmable 8-sector LED oblique ring light | |
| Metrology Camera | Large field megapixel metrology camera | |
| Field of View | Low Mag: 100 mm Ø | 4x High Mag: 32 mm x 32 mm | 10x High Mag: 13 mm x 13 mm |
| Max Digital Zoom | Low Mag: 42.2 mm x 42.2 mm | 4x High Mag: 10.7 mm x 10.7 mm | 10x High Mag: 4.3 mm x 4.3 mm |
| Depth of Field | Low Mag: 50 mm | 4x High Mag: 10 mm | 10x High Mag: 2 mm |
| Working Distance | Low Mag: 115 mm | 4x High Mag: 115 mm | 10x High Mag: 115 mm |
| Controls | GO button, illumination controls, push-button controls for motorized XY stage, and toggle switch for Z motion control | |
| Software | Metrology Software: Measure-X Measure and Compare | Metrology Software: ZONE3 Express, Prime or Pro in lieu of Measure-X Productivity Software: Measure-X Analyze, SmartFit® 3D, OGP® EVOLVE® Suite (Design, EVOLVE SPC, Manufacturing, SmartProfile® ) Offline Software: Measure-X or ZONE3 |
| System Controller | Compact Windows® based, with up-to-date processor and USB communication ports | Standard Windows based, with up-to-date processor and networking/communication ports (included with ZONE3) |
| Controller Options | 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400 W | |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XY FOV Accuracy (E2 ) | Low Magnification Lens: (4.0 + L/50) µm 4X High Magnification Lens: (2.0 + L/50) µm |
10x High Magnification Lens: (1.0 + L/50) µm |
| XY Area Accuracy (E2 ) | (7.0 + L/50) µm | |
- Accuracy is evaluated with a QVI verification procedure where “L” is measured length in millimeters. Specifications apply within the rated environment. Optical specifications apply at the maximum optical and digital magnification of the specified configuration. XY FOV Accuracy applies with an evenly distributed load up to 2.5 kg in the standard measuring plane. The standard measuring plane is defined as perpendicular to the optical axis within 0.5 mm, and within 5.0 mm of best focus.
Last updated: July 2023
