Standard: 62 mm x 46 mm

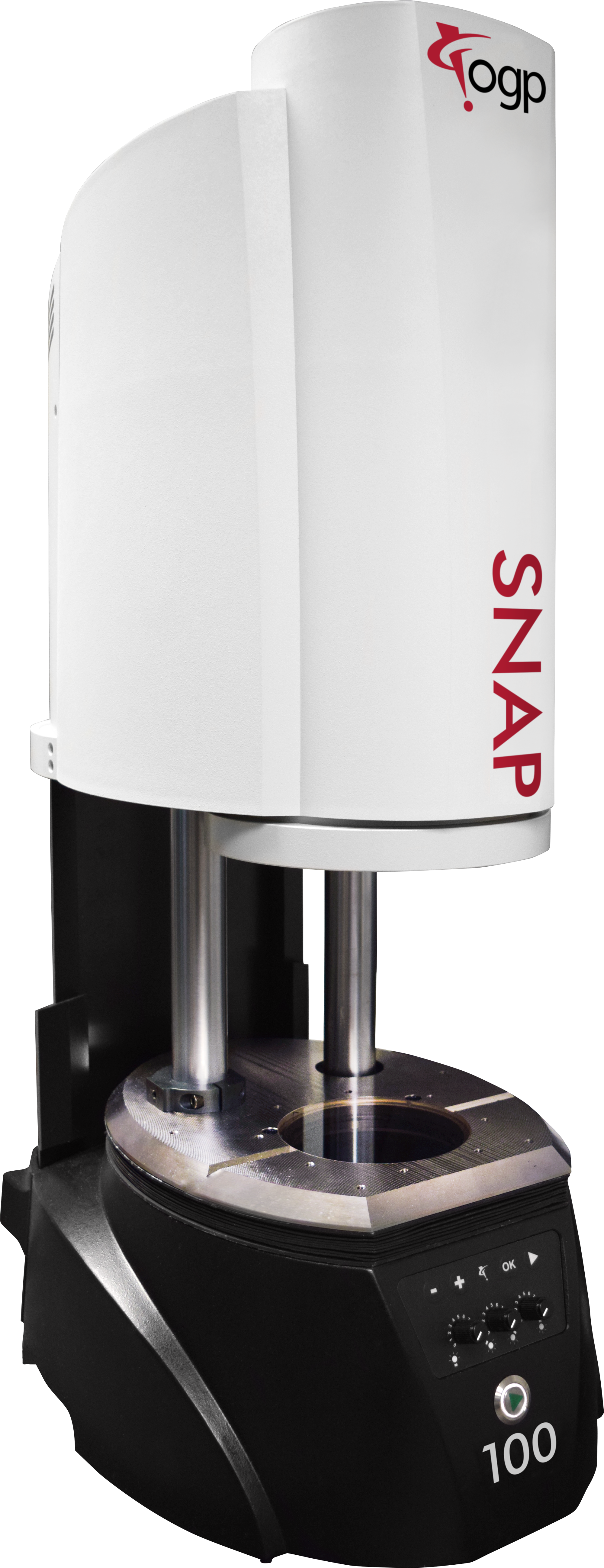

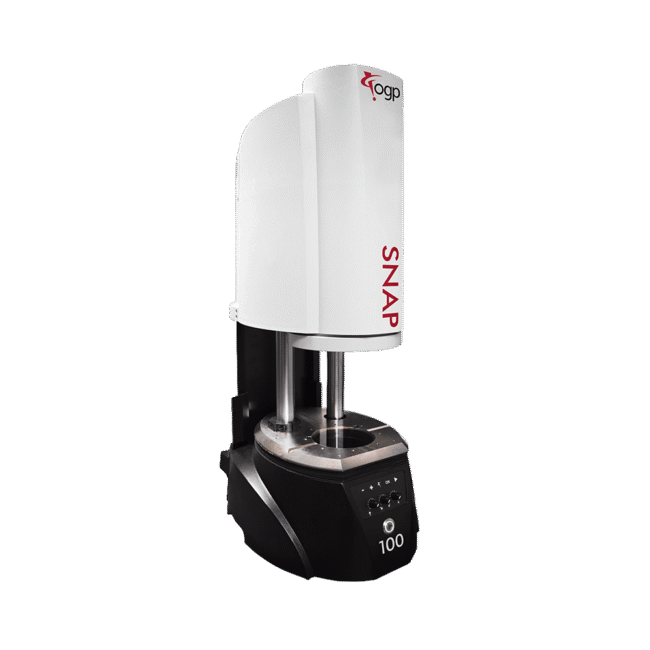

SNAP™ 100 is a compact unit equipped with a Large FOV Telecentric lens and a fixed stage with a 62 mm x 46 mm measuring area. Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Fixed stage with 62 mm x 46 mm measuring area
- Measure-X Metrology Software
- Optional ZONE3 Metrology Software
Technical Data
Max Measuring Range (mm)
Standard
62 mm x 46 mm
Optics
Telecentric, single optical magnification with 62 mm x 46 mm field of view
Illumination
All LED monochromatic substage profile light, programmable 8 sector ring light, and coaxial through-the-lens surface light.
Sensors & Accessories
Accessories
| Standard | Optional | |
|---|---|---|
| Measuring Unit | Rigid, cast aluminum base; nickel plated worktable, with fixture holes, removable stage glass, 4 kg recommended max payload | |
| Stage | Motorized, programmable 75 mm Z axis (focus) | |
| Maximum Measuring Range (XY) | 62 mm x 46 mm | |
| Rotary Axis | Miniature Servo Rotary (MSR™) | |
| Optics | Telecentric, single optical magnification | |
| Illumination | Substage LED profile, coaxial LED surface, and programmable 8-sector LED oblique ring light | |
| Metrology Camera | High density megapixel metrology camera | |
| Field of View | 62 mm x 46 mm | |
| Max Digital Zoom | 15.5 mm x 11.5 mm | |
| Depth of Field | 20 mm | |
| Working Distance | 115 mm | |
| Controls | GO button, illumination controls, and toggle switch for Z motion control | |
| Software | Metrology Software: Measure-X Measure and Compare | Metrology Software: ZONE3 Express, Prime, or Pro in lieu of Measure-X Productivity Software: Measure-X Analyze, SmartFit® 3D, OGP® EVOLVE® Suite (Design, EVOLVE SPC, Manufacturing, SmartProfile®) Offline Software: Measure-X or ZONE3 |
| System Controller | Compact Windows® based, with up-to-date processor and USB communication ports | Standard Windows based, with up-to-date processor and networking/communication ports (included with ZONE3) |
| Controller Options | 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400 W | |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XY FOV Accuracy (E2 ) | (4.0 + L/50) µm | |
- Accuracy is evaluated with a QVI verification procedure where “L” is measured length in millimeters. Specifications apply within the rated environment. Optical specifications apply at the maximum digital magnification of the specified configuration. XY FOV Accuracy applies with an evenly distributed load up to 2.5 kg in the standard measuring plane. The standard measuring plane is defined as perpendicular to the optical axis within 0.5 mm, and within 5.0 mm of best focus.
Last updated: July 2023
