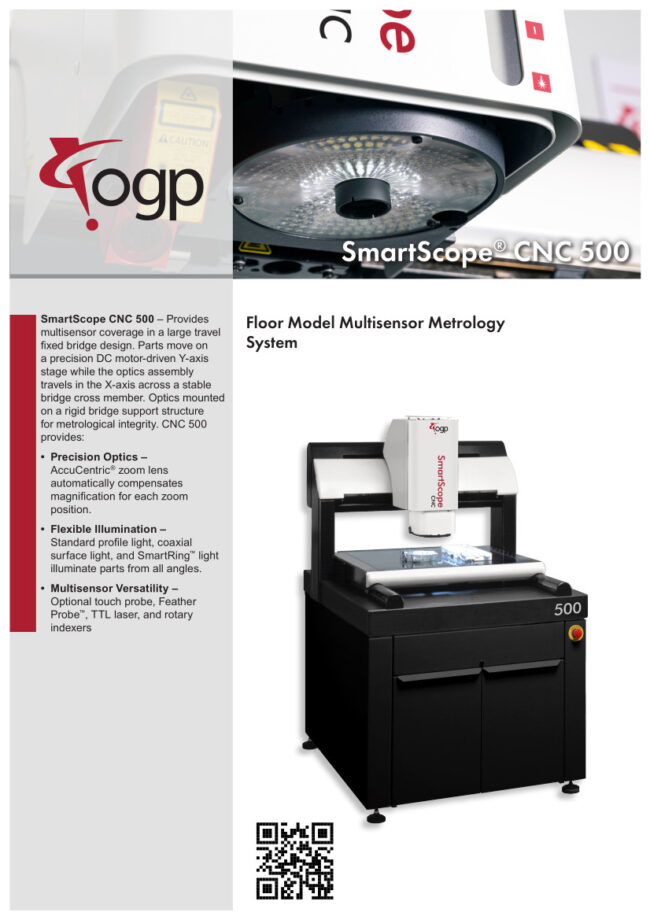

SmartScope CNC 500

Large Capacity Multisensor Dimensional Measuring System

Measurement Stability

Optics mounted on a rigid bridge support structure for metrological integrity

Precision Optics

High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

XYZ Travel (mm) Standard

500 x 450 x 200

More XYZ travel info >

The SmartScope® CNC 500 is the perfect large capacity 3D multisensor measurement system. It offers all the great CNC features and performance in a large travel bridge-design system. Parts move on a precision DC motor-driven Y-axis stage while the optics assembly travels in the X-axis across a stable bridge cross member.

Measurement stability –Optics mounted on a rigid bridge support structure for metrological integrity

Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles

Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors

Technical Data

XYZ Travel (mm)

Standard

500 x 450 x 200

Optional

Extended Y: 610 mm
Extended Z: 300 mm

Optics

Standard

AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional

Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

Illumination

Standard

Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional

Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment
