SmartScope Flash & CNC

Versatile “All-in-One” 3D Multisensor Measurement System Built to Handle a Wide Variety of Measurement Tasks

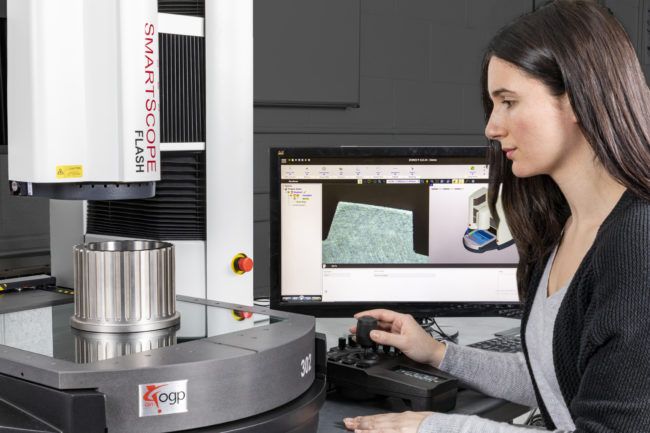

SmartScope® Flash™ 3D Multisensor Measurement Systems are versatile “all-in-one” multisensor coordinate measuring systems built to handle a wide variety of measurement tasks. The Flash product line offers the largest range of XYZ machine travels, from 200 x 200 x 150 mm to 650 x 1200 x 400 mm, as well as models with expansive XY travels up to 1500 x 2000 mm, to easily accommodate very large parts.

A 12:1 zoom metrology lens features patented AccuCentric® that auto-compensates itself after every magnification change. Flash offers a range of innovative illumination sources for video measurements. SmartRing™ light is standard for the ultimate flexibility in surface illumination. All LED illumination including backlight, ring light and coaxial surface light-and an optional grid protector for focusing on low contrast images.

SmartScope Flash can be configured as an economical yet capable multisensor metrology system, with numerous combinations of touch probes, scanning probes, micro-probes, and lasers. ZONE3® 3D CAD-based metrology software makes every Flash model a powerful video measuring system.

SmartScope Flash systems feature an ideal price-to-performance ratio and are extremely popular, with thousands in service worldwide. SmartScope Flash systems are the best choice in automatic general-purpose, coordinate measuring with multisensor dimensional measurement.

Flash branded systems are sold in North America while Flash CNC and CNC systems are found outside North America.

Benefit
Feature
Automatically Compensate Magnification for Each Zoom Position AccuCentric® motorized zoom lens
Illumination to Measure the Most Challenging Parts from All AnglesStandard profile light, coaxial surface light, and SmartRing™ light
Efficient, Accurate MeasurementsAbility to combine optical, laser and tactile sensor
Ability to Bring Mirror-polished and Transparent Parts into FocusOptional grid projector
3D CapabilityZONE3 3D metrology software allows for 3D and CAD-based measurement with all sensors
