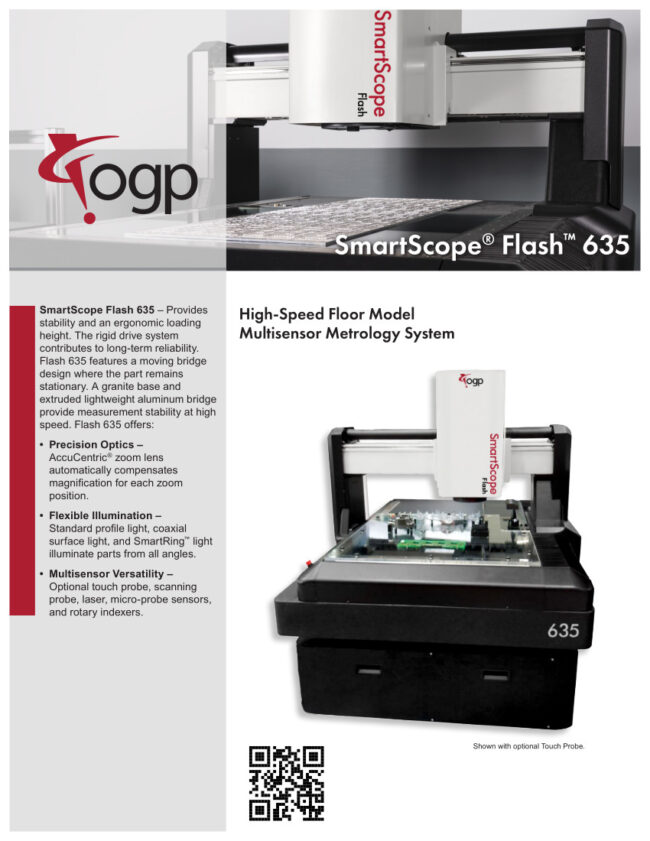

SmartScope Flash 635

High-speed multisensor dimensional measurement system for large parts

Built-in Measurement Stability

A granite base and extruded aluminum bridge provide a rigid, orthogonal structure for measurement stability

Precision Optics

High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

XYZ Travel (mm) Standard

635 x 635 x 200

SmartScope® Flash 635 is a high-speed 3D multisensor dimensional measuring system for large parts that provides measurement speed and stability. A granite base and extruded, lightweight aluminum bridge provide a rigid orthogonal structure for measurement stability. While the instrument head moves in the X, Y, and Z axes, the part being measured remains stationary. Flash 635 also has:

Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

High speed enhances productivity – High acceleration and velocity in all three measurement axes

High reliability transport – Rigid drive system contributes to long-term reliability

Multisensor versatility – Optional non-contact sensors and touch probes

Technical Data

XYZ Travel (mm)

Standard

635 x 635 x 200

Optics

Standard

AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional

Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

Illumination

Standard

LED numerical aperture matching substage, LED coaxial TTL surface, 8 sector / 8 ring SmartRing™ LED (white)

Optional

Flexible SmartRing light for long working distance optical configurations
Red or green SmartRing light
