SmartScope Quest 250

Advanced-technology dimensional measuring system with a compact footprint

Highly Accurate Optics

Fully telecentric and distortion-free 10X zoom lens

Designed-in Accuracy

A heavy-duty cast base with Y-axis center drive assures metrological stability

XYZ Travel Standard

300 x 150 x 200 mm

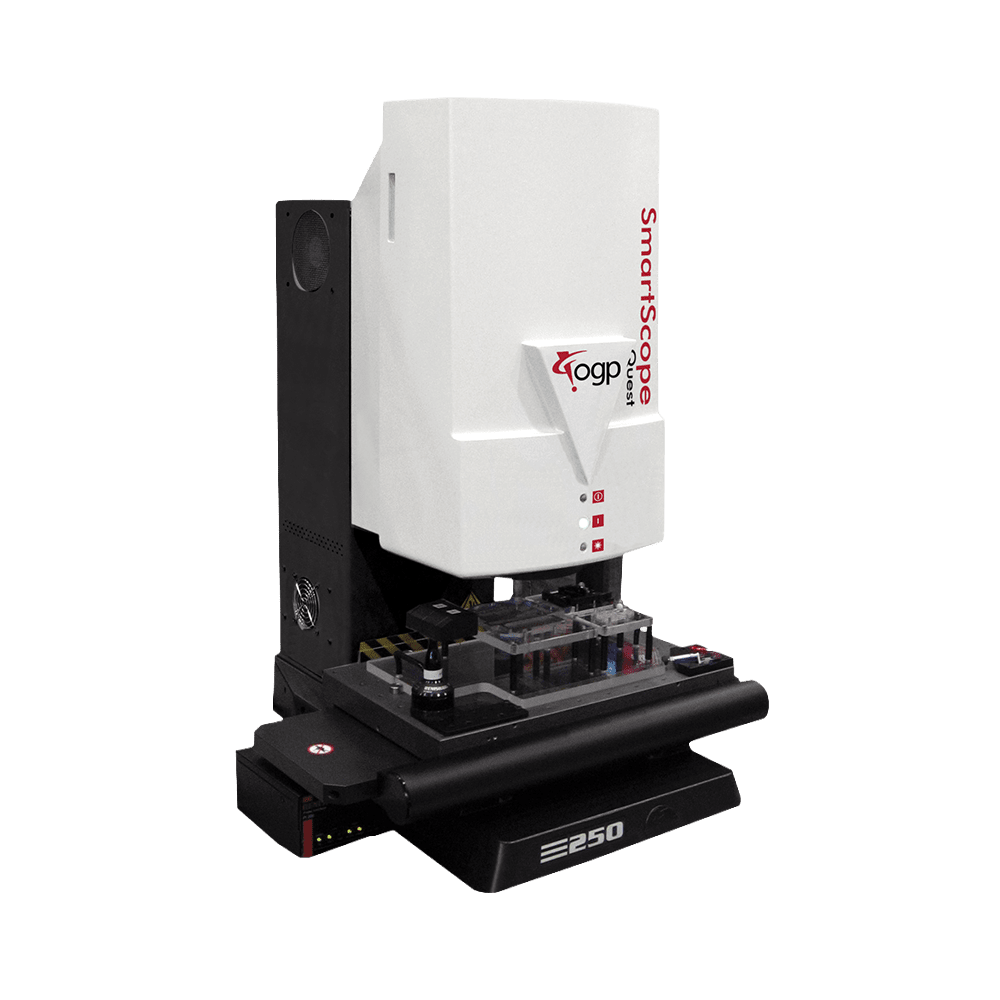

SmartScope® Quest™ 250 is an advanced-technology 3D multisensor measurement system. This benchtop system is specifically designed to measure smaller parts, or for situations where space is at a premium. Its rigid structural design provides full access to the measurement volume for fixturing flexibility. Quest 250 offers:

Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance

Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement

Multisensor versatility – Optional touch probe, off-axis DRS™ laser or on-axis TeleStar TTL interferometric laser, micro-probes, and SP25 continuous contact scanning probe

Technical Data

XYZ Travel

Standard

300 x 150 x 200 mm

Optics

Standard

10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens

Optional

Focus Grid Projector: LED source
Replacement Lenses: 0.5x, 2.0x, 4.0x
Laser Lenses: 0.5x, 2.0x, 4.0x

Illumination

Patented high performance substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
