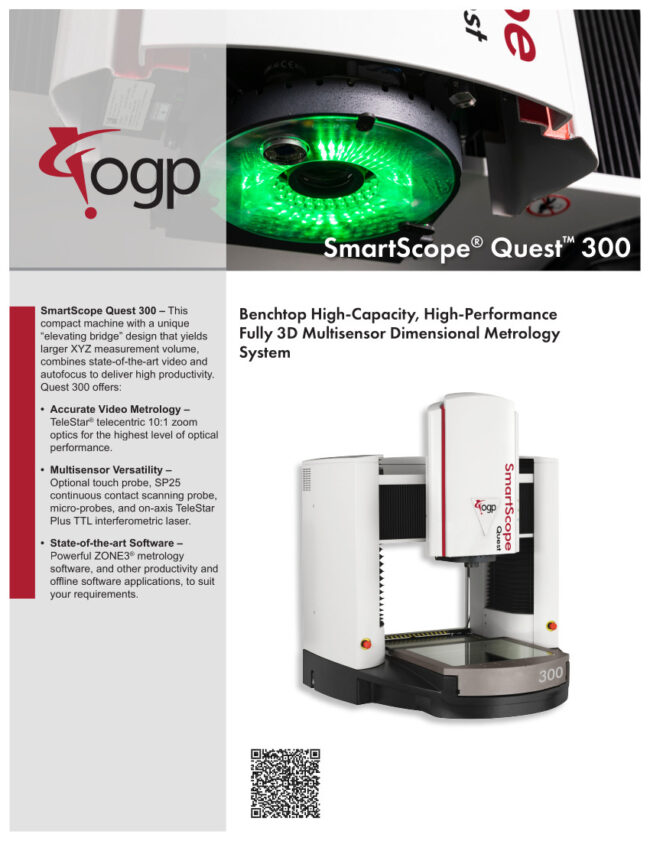

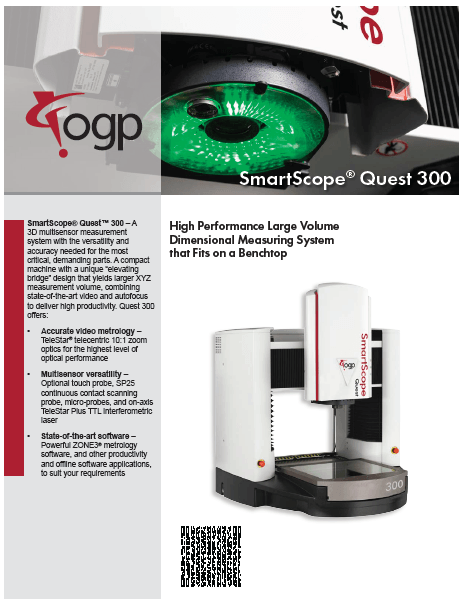

SmartScope Quest 300
Benchtop High-Capacity, High-Performance Fully 3D Multisensor Dimensional Metrology System
XYZ Travel
Standard: 300 x 300 x 250 mm
SmartScope® Quest™ 300 offers 3D multisensor measurement versatility and accuracy needed for the most critical, demanding parts. A compact machine with an unique “elevating bridge” design that yields large XYZ measurement volume to accommodate large parts, it combines state-of-the-art video and autofocus to deliver high productivity. Quest 300 offers:
Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement
Excellent scanning probe performance – An air-bearing Z-axis motion system provides friction free motion and stiffness
Multisensor versatility – Optional touch probe, on-axis TeleStar TTL interferometric laser, micro-probes, and SP25 continuous contact scanning probe
Technical Data
XYZ Travel
Standard
300 x 300 x 250 mm
Optics
Standard
10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens
Optional
Focus Grid Projector: LED source
Replacement Lenses: 0.5x, 2.0x, 4.0x
Laser Lenses: 0.5x, 2.0x, 4.0x
Illumination
Patented LED numeric matching substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
Sensors & Accessories
Tactile Sensors
Laser Sensors
Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 300 x 300 x 250 mm | |
| XYZ Scale Resolution | 0.1 μm, including dual Z-axis scales | 0.05 µm |
| Drive System | DC servo with 4-axis control (X, Y, Z, zoom); air bearing Z axis; with multifunction handheld controller | |
| Worktable | Hardcoat anodized, with fixture holes, removable stage glass, 30 kg recommended max payload | |
| Rotary Axis | Miniature Servo Rotary (MSR™), MicroTheta Rotary (MTR™), Dual MTR/MSR | |
| Optics* | AccuCentric® auto-compensating, fully telecentric zoom, motorized; 1x lens |
Focus Grid Projector: LED source Laser Pointer: Not available with optional TTL Laser Replacement / Laser Lenses: 0.5x, 2.0x, 4.0x |
| Illumination | Substage LED profile, coaxial LED surface, SmartRing™ LED ring light |
Flexible SmartRing light for 0.5x lens |
| Metrology Camera | Monochrome digital metrology camera | |
| Field of View | 8.1 mm x 6.1 mm (low zoom) to 0.81 mm x 0.61 mm (high zoom) |
13.1 mm x 9.8 mm (0.5x lens), to 0.20 mm x 0.15 mm (4.0x lens) |
| Working Distance | 65 mm | Up to 127 mm (0.5x lens) |
| Sensor Options | Tactile: TP20 or TP200 Touch Probe, SP25 Scanning Probe, Feather Probe™ Non-Contact: TeleStar Plus Interferometric TTL Laser |
|
| Software | • ZONE3 metrology software • QVI® Portal |
Metrology software: ZONE3 Prime, ZONE3 Pro Productivity software: EVOLVE® Suite (Design, Manufacturing, SmartProfile®,SPC) Offline software: ZONE3 |
| System Controller | Windows® based, with up-to-date processor and on board networking/communication ports | |
| Controller Options | 24” flat panel LCD monitor, keyboard, 3-button mouse | Dual 24” flat panel LCD monitors |
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 900 W | |
|---|---|---|
| Compressed Air Requirements | Air supply pressure: 0.45 MPa; Minimum flow capacity: 32 l/min; Air quality ISO 8573-1:2010 Class 4.3.4 or better | Air dryer kit |
| Safe Operating Environment | 15-30 °C, non-condensing | |
| Rated Environment | Temperature 18-22 °C, stable to ± 1 °C; max rate of change 0.5 °C / hour; max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz | |
| XYZ Volumetric Accuracy | E3 = (3.0 + 5L/1000) µm | |
| XY Area Accuracy | E2 = (1.5 + 5L/1000) µm | |
| Z Linear Accuracy | E1 = (2.5 + 5L/1000) µm | E1 = (2.0 + 5L/1000) µm (requires optional TeleStar Plus TTL Laser, or Touch Probe) |
- Accuracy is evaluated with a QVI compensation and verification procedure where "L" is measured length in millimeters. Specifications apply within the rated environment. Accuracy specifications are verified with the imaging sensor unless otherwise specified. Standard optical specifications apply at the maximum optical magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 5 kg in the standard measuring plane. The standard measuring plane is defined as a plane that is within 25 mm of the worktable surface. Depending on load distribution, accuracy at maximum payload may be less than standard. On-site verification of volumetric accuracy is optional.
*Lenses can be manually interchanged to change magnification and working distance.
Last updated: September 2024
