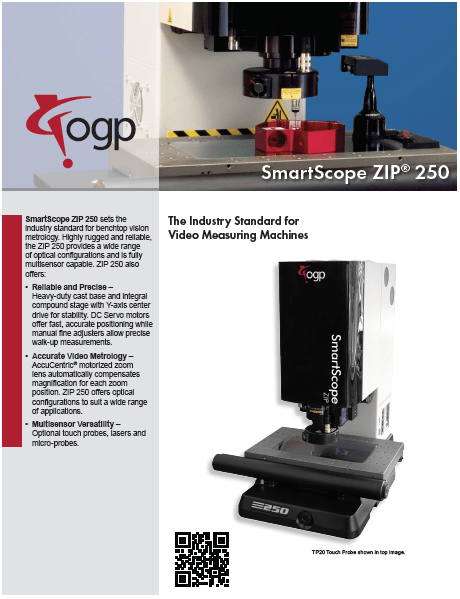

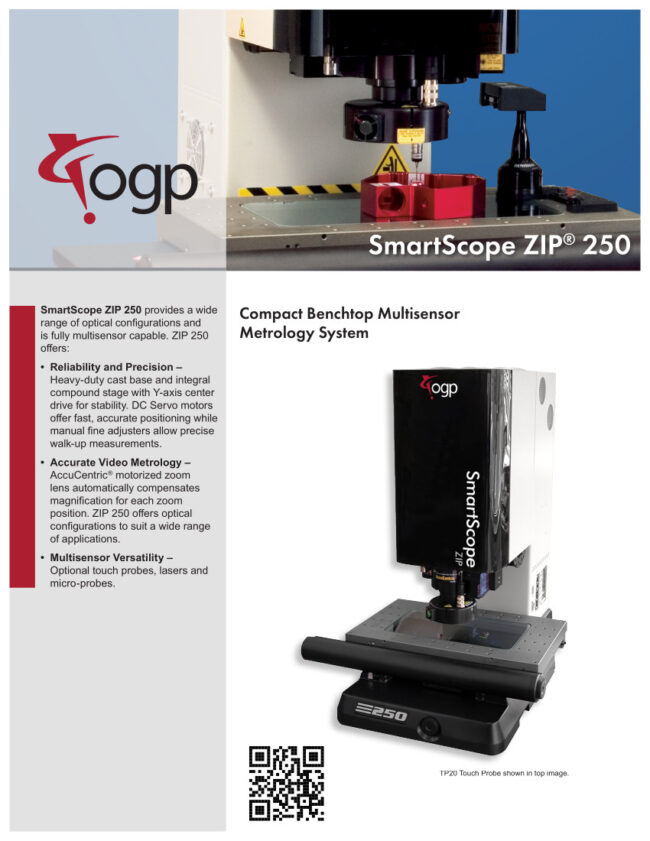

SmartScope ZIP 250

The Industry Standard for Video Measuring Machines

Optical Versatility

Numerous lens and lighting options to solve a range of applications

Reliable & Precise

Heavy-duty cast base and integral compound stage with Y-axis center drive for stability

XYZ Travel (mm) Standard

North America: 300 x 150 x 200
International: 250 x 150 x 200

More XYZ travel info >

SmartScope ZIP® 250 sets a high standard in benchtop metrology. This durable system features fast stage speed for maximum throughput and short cycle times, without sacrificing accuracy. A heavy duty cast base with Y-axis center drive assures metrological stability. ZIP 250 also offers:

Accurate video metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position

Reliable & Precise – Heavy-duty cast base and integral compound stage with Y-axis center drive for stability

Multisensor versatility – Optional touch probes, lasers and micro-probes

Technical Data

XYZ Travel (mm)

Standard

North America: 300 x 150 x 200
International: 250 x 150 x 200

Optional

International: Extended X axis, 300

Optics

Standard

AccuCentric® auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional

Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

Illumination

Standard

Substage LED profile (green), coaxial LED surface (white), SmartRing LED ring light (white)

Optional

High performance all green LED illumination, tungsten illumination for coaxial and ring light, infrared illumination for coaxial and ring light
Ring lights: VuLight™ with multiple angles of incidence; Fiber Optic Ring mounted below, integrated with, or in lieu of SmartRing light
