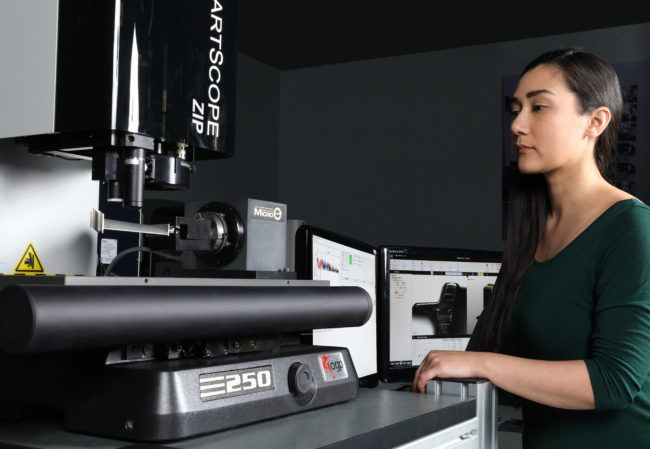

SmartScope® ZIP® systems offer superior optical performance and a range of machine travels to deliver reliable performance. SmartScope ZIP models feature the proven performance of AccuCentric® autocompensating 7:1 zoom optics. Multiple illumination sources – including monochromatic substage LED profile, white LED TTL surface, SmartRing™ white LED ring light, and optional VuLight™ oblique illuminator – are available to illuminate your toughest measurement challenges.
SmartScope ZIP systems are available in a range of XYZ measurement volumes, from 250 x 150 x 200 mm to 800 x 820 x 300 mm.
All ZIP models excel at video measurement and multisensor versatility for the highest productivity. ZIP HR offers advanced imaging and illumination through a 5.5X zoom optical system with up to 60:1 digital/optical magnification and a programmable ring light (PRL) that provides the ability to automatically change the angle of incidence.
|Automatically Compensate Magnification for Each Zoom Position||AccuCentric® motorized zoom|
|Multiple Angles of Incidence for Full Part Coverage||All LED illumination including backlight, ring light, and coaxial surface light|
|Efficient, Accurate Measurements||Ability to combine optical, laser and tactile sensor|
|Ability to Bring Mirror-Polished and Transparent Parts into Focus||Optional grid projector|
|3D Capability||ZONE3 metrology software allows for 3D and CAD-based measurement with all sensors|
