SmartScope ZIP 635

High Speed Multisensor Measuring System for Large Parts

Optical Versatility

Numerous lens and lighting options to solve a range of applications

Built-in Measurement Stability

A granite base and extruded, lightweight aluminum bridge provide a rigid, orthogonal structure for stability

XYZ Travel (mm) Standard

635 x 635 x 200

More XYZ travel info >

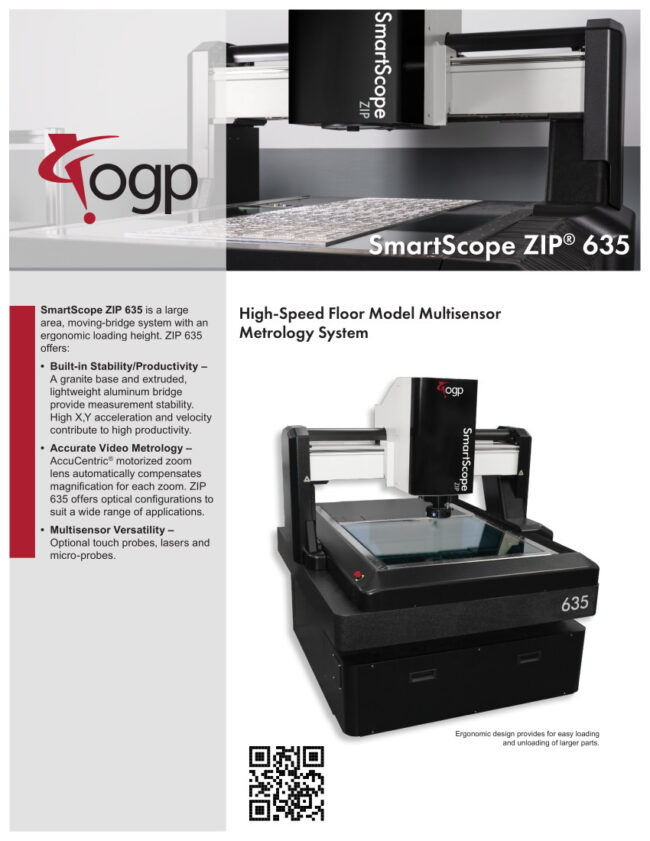

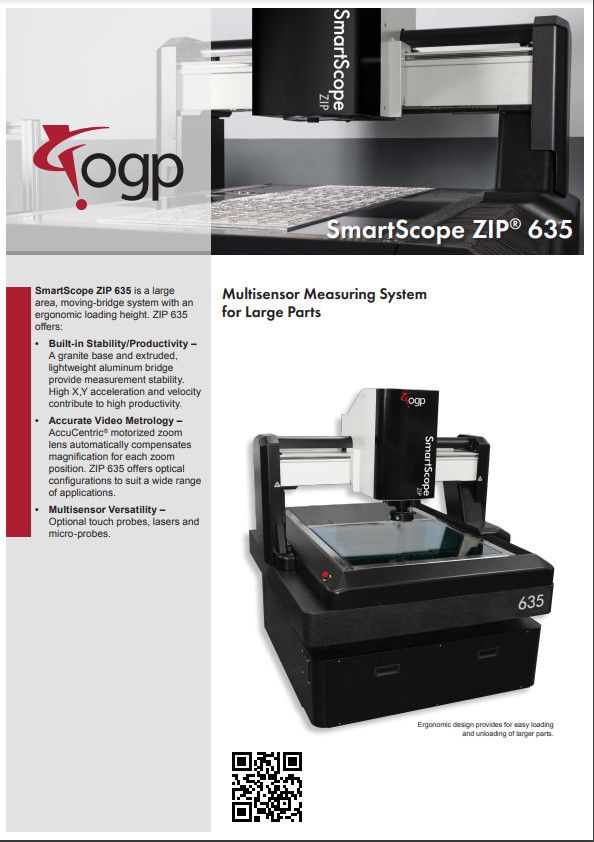

SmartScope ZIP® 635 is a floor model metrology system offering high speed multisensor measurement of large parts. Its high acceleration and velocity in all three measurement axes contribute to measurement productivity, while its granite base and extruded, lightweight aluminum bridge provide a rigid platform for built-in measurement stability. ZIP 635 offers:

Accurate Video Metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position

Built-in Stability – A granite base and extruded aluminum bridge provide a rigid, orthogonal structure for measurement stability

High Speed – High acceleration and velocity in all three measurement axes

High Reliability – Rigid drive system contributes to long-term reliability

Multisensor Versatility – Optional non-contact sensors and touch probes

Technical Data

XYZ Travel (mm)

Standard

635 x 635 x 200

Optional

Extended Y axis, 850

Optics

Standard

AccuCentric® auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional

Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

Illumination

Standard

Substage LED profile (green), coaxial LED surface (white), SmartRing LED ring light (white)

Optional

High performance all green LED illumination, tungsten illumination for coaxial and ring light, infrared illumination for coaxial and ring light
Ring lights: VuLight™ with multiple angles of incidence; Fiber Optic Ring mounted below, integrated with, or in lieu of SmartRing light
