SmartScope ZIP 300

High Accuracy Multisensor Metrology System

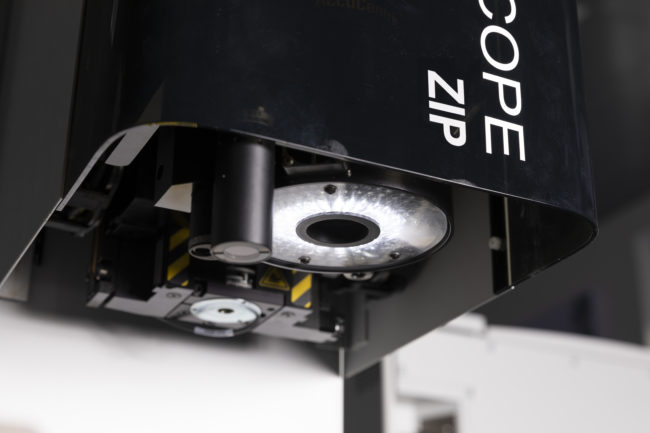

Optical Versatility

Numerous lens and lighting options to solve a range of applications

Built-in Measurement Stability

A granite support structure ensures vibration isolation and measurement stability

XYZ Travel (mm) Standard

300 x 300 x 200

More XYZ travel info >

SmartScope ZIP® 300 is a fast, accurate floor model metrology system offering a combination of hardware performance, optical capability, and ease-of-use. A rigid cast iron base ensures stability and metrological accuracy. SmartScope ZIP 300 is also available with an optional 300 mm of Z-axis travel. ZIP 300 also offers:

Accurate video metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position

Measurement stability is built-in – A granite support structure ensures vibration isolation and measurement stability

Multisensor versatility – Optional touch probes, lasers and micro-probes

Technical Data

XYZ Travel (mm)

Standard

300 x 300 x 200

Optional

Extended Z axis, 300

Optics

Standard

AccuCentric® auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional

Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

Illumination

Standard

Substage LED profile (green), coaxial LED surface (white), SmartRing LED ring light (white)

Optional

High performance all green LED illumination, tungsten illumination for coaxial and ring light, infrared illumination for coaxial and ring light
Ring lights: VuLight™ with multiple angles of incidence; Fiber Optic Ring mounted below, integrated with, or in lieu of SmartRing light
