c-vision Lite Video Contour Projector

Easy-to-use shop floor measuring system that fits on a workbench

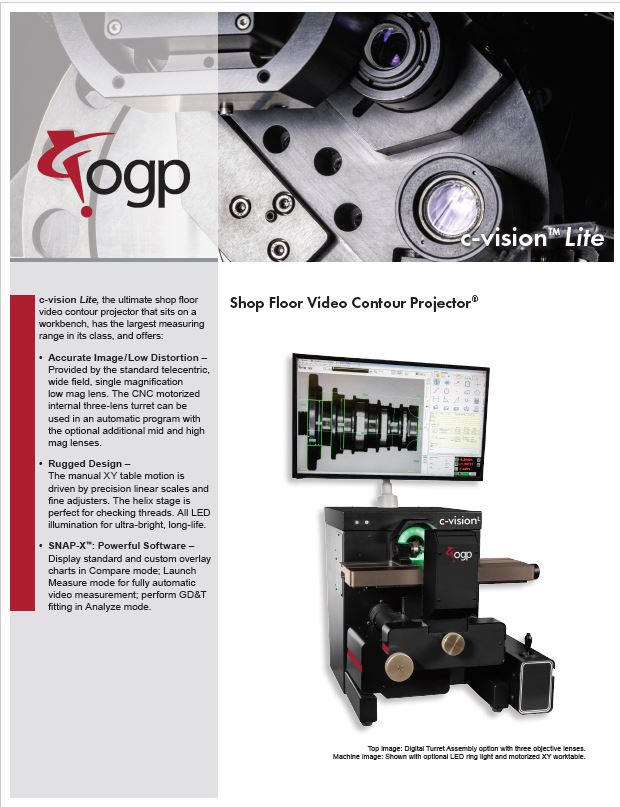

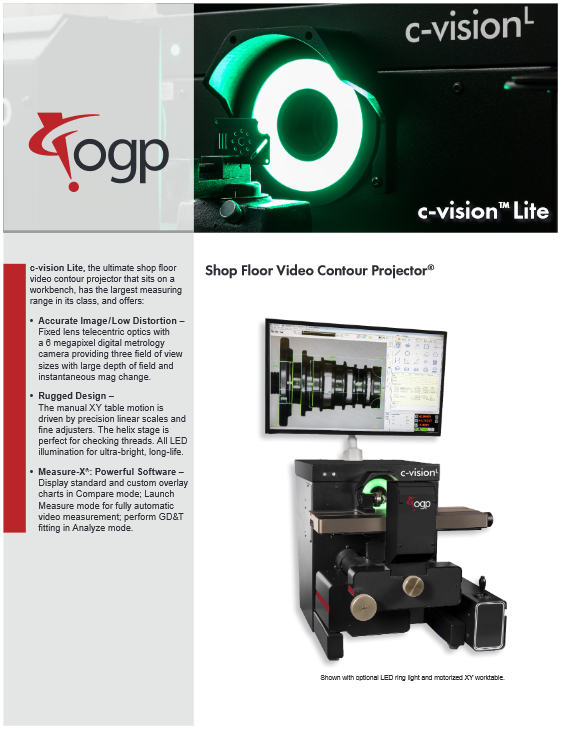

Download Datasheet

Overview Technical Data Videos Downloads

XY Travel

Standard: 12” x 5” x 1.25”

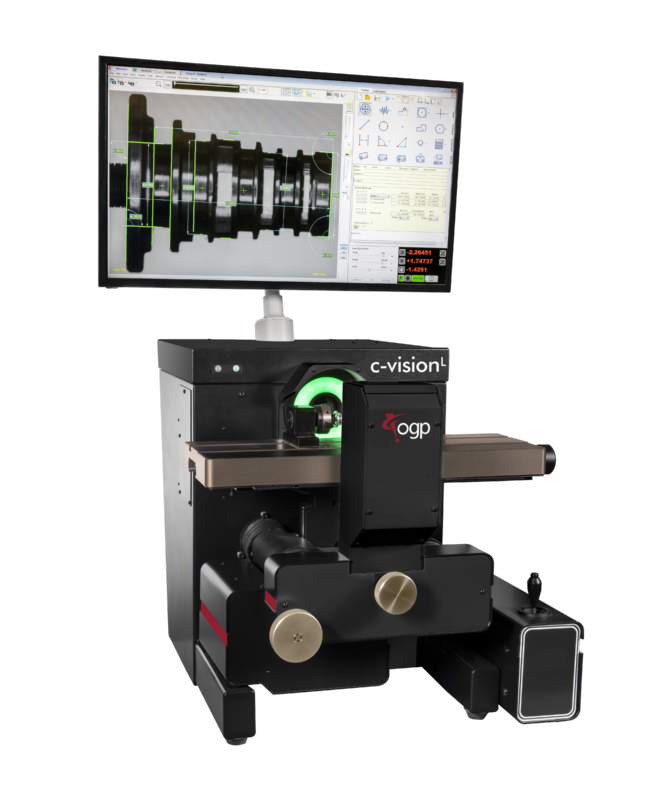

c-vision™ Lite is an easy-to-use benchtop video contour projector. This rugged horizontal optical comparator features a compact footprint that uses very little floor space. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy. The c-vision Lite offers:

Accurate Image with exceptionally low distortion over entire 2-inch field of view area – Telecentric fixed optics with digital zoom and large depth of field

Shop hardened and convenient benchtop – Heavy-duty worktable supporting up to 45 pounds and easy to use interface. Motorized XY table with precision linear scales and fine adjusters.

Display standard and custom overlay charts – Using Measure-X™ Software in Compare mode

Fully automatic video measurement – Available using Measure-X Software in Measure mode

Technical Data

XY Travel

Standard

12” x 5” x 1.25”

Optics

Telecentric, upright and corrected image with 2-inch field of view and digital zoom

Illumination

Standard

Profile Light

Optional

Oblique Surface Illumination

Worktable

Motorized, hard coat anodized aluminum with dovetail slot and ±6.5° helix angle range

Sensors & Accessories

Optical Comparator Fixtures Rotary Indexers

Full Specifications
	Standard	Optional
XYZ Travel	12” x 5” x 1.25”
XY Scale Resolution	0.00004”	0.00002”
Drive System	Motorized with variable speed joystick control and manual fine adjustment
Worktable	Hard coat anodized aluminum worktable, 16” x 5”, with dovetail fixturing slot with 45 lb load capacity
Helix Angle Range	± 6.5° with pivoting worktable assembly and zero stop
Throat Clearance	10.0”
Optics	Fixed magnification with three field of view sizes, fully telecentric, long depth of field, upright and fully corrected image
Illumination	LED profile light with continuously variable intensity	LED oblique 8-sector ring light
Magnification	Low Magnification 1.88” Field of View (FOV) 1.6” Depth of Field (DOF) 4” Working Distance (WD) Medium Magnification 1.13” Field of View (FOV) 1.2” Depth of Field (DOF) 4” Working Distance (WD) High Magnification 0.47” Field of View (FOV) 1.0” Depth of Field (DOF) 4” Working Distance (WD)
Metrology Camera	6 megapixel digital metrology camera
Software	Measure-X Measure and Compare	Measure-X Analyze, Measure-X Offline, EVOLVE® SPC
System Controller	Windows® based, with up-to-date processor and onboard network/communication ports
Controller Options	32” flat panel LCD monitor, keyboard, 3-button mouse
Accessories		Motorized rotary indexer; Calibration reticles; Machine stand; Rotary vise; Staging centers and V-blocks
Power Requirements	100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400 W
Safe Operating Environment	59-86 °F, non-condensing
Rated Environment	Temperature 64-72 °F, stable at ± 2 °F, max rate of change 2 °F/hour, max vertical gradient 1.5 °F/yard; 30-80% humidity; vibration <0.001g below 15 Hz
Field of View Accuracy (E₂ )	Low Mag: 0.0004” Med Mag: 0.0003” High Mag: 0.0002”
Stage Accuracy (E₂ )	(500+10L) µinch

Accuracy is evaluated with a QVI® compensation and verification procedure where “L” is measured length in inches. Specifications apply within the rated environment. XY Accuracy applies with an evenly distributed load up to 11 lb in the standard measuring plane. The standard measuring plane is defined as perpendicular to the optical axis within 0.02 inch, and within 0.20 inch of best focus. Depending on load distribution, accuracy at maximum payload may be less than standard.
