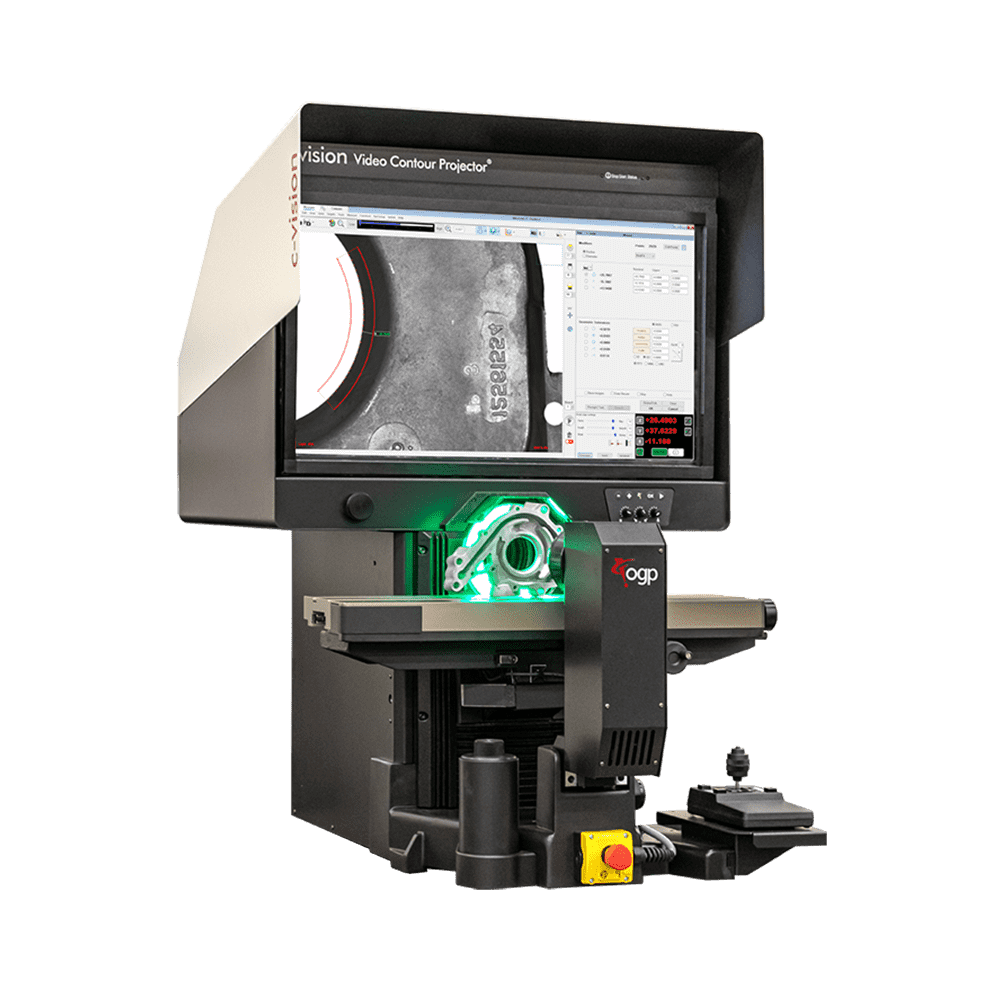

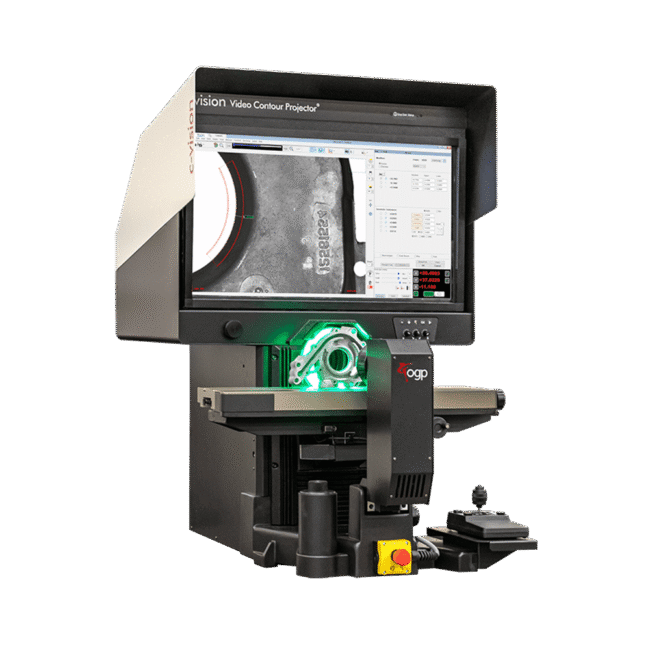

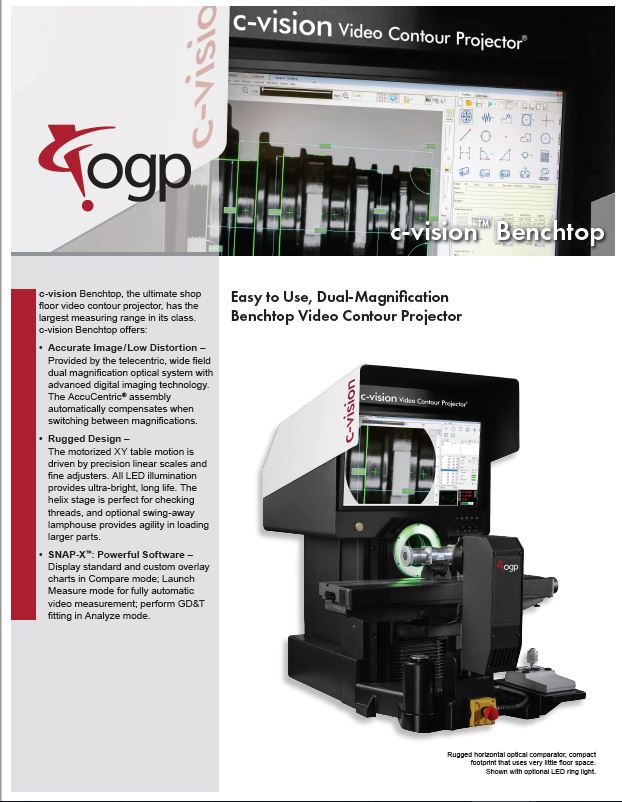

c-vision Benchtop Video Contour Projector
An easy to use, dual-magnification benchtop video contour projector
XY Travel
Standard: 15” x 6” x 2”
c-vision™ Benchtop Video Contour Projector® is an easy to use, dual-magnification benchtop video contour projector. This rugged horizontal optical comparator features a compact footprint that uses very little floor space. Its rugged design and 60 lb load capacity put advanced automatic video measurement capability to work right where it is needed. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy. c-vision Benchtop provides:
Accurate Image with exceptionally low distortion over entire 3-inch viewing area – Telecentric dual magnification optical system with advanced digital imaging technology
Shop hardened and convenient benchtop – High payload capacity, easy to use interface. Motorized XY table motion with precision linear scales and manual fine adjusters
Display both standard and custom overlay charts – Measure-X™ Compare software
Technical Data
XY Travel
Standard
15” x 6” x 2”
Optional
18” x 6” x 2”
Optics
Telecentric, upright and corrected image with 3-inch low mag field of view and 4X high mag lens
Illumination
Standard
Profile Light
Optional
Coaxial Light
Oblique Surface Illumination
Worktable
Motorized, hard coat anodized aluminum with dovetail slot and ±7.5° helix angle range
Sensors & Accessories
| Standard | Optional | |
|---|---|---|
| XYZ Travel | 15” x 6” x 2” | 18” x 6” x 2” |
| XY Scale Resolution | 0.00004” | 0.00002” |
| Drive System | Motorized with variable speed joystick control and manual fine adjustment | |
| Worktable | Hard coat anodized aluminum worktable, 20” x 5”, with dovetail fixturing slot with 65 lb load capacity | |
| Helix Angle Range | ± 7.5° with pivoting worktable assembly and zero stop | |
| Throat Clearance | 10” | |
| Optics | Dual magnification with six field of view sizes, fully telecentric, long depth of field, upright and fully corrected image | |
| Illumination | LED profile light with continuously variable intensity | LED oblique 8-sector ring light; LED coaxial surface light |
| Magnification Lenses | Low Magnification Lens 3”Field of View (FOV) 0.75” Depth of Field (DOF) 4” Working Distance (WD) 4x High Magnification Lens 0.75” Field of View (FOV) 0.2” Depth of Field (DOF) 4” Working Distance (WD) |
|
| Metrology Camera | High density megapixel metrology camera | |
| Software | Measure-X Measure and Compare | Measure-X Analyze, Measure-X Offline, EVOLVE® SPC |
| System Controller | Standard system controller with networking and communication ports | |
| Controller Options | 32” flat panel LCD monitor, keyboard, 3-button mouse | Side-mounted second monitor |
| Accessories | Motorized rotary indexer; Overhead light shield; Calibration reticles; Swing away lamphouse; Machine stand; Rotary vise; Staging centers and V-blocks |
|
| Power Requirements | 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 800 W | |
| Safe Operating Environment | 59°-86° F, non-condensing | |
| Rated Environment | Temperature 64°-72 °F, stable at ± 2 °F/hour, max vertical gradient of 1.5 °F/yard; 30%-80% humidity; vibration <0.001g below 15 Hz | |
| Stage Accuracy (E2 ) | (300 + 10L) µinch | |
| Field of View Accuracy (E2 ) | Low Mag: 0.0003” High Mag 4x: 0.00016” |
|
- Accuracy is evaluated with a QVI® compensation and verification procedure where “L” is measured length in inches. Specifications apply within the rated environment. Standard optical specifications apply at the maximum optical magnification of the standard configuration. XY Accuracy applies with an evenly distributed load up to 11 lb in the standard measuring plane. The standard measuring plane is defined as perpendicular to the optical axis within 0.02 inch, and within 0.20 inch of best focus. Depending on load distribution, accuracy at maximum payload may be less than standard.
