Cobra 2D

Portable laser scanning system

DRS™ Laser

High quality non-contact laser scans of critical part surfaces

Scan Length & Z-axis Adjustment Range Standard

Scan length – X-axis NA, Y-axis 50 mm
Z-axis adjustment range – 50 mm

Non-Contact Profiling

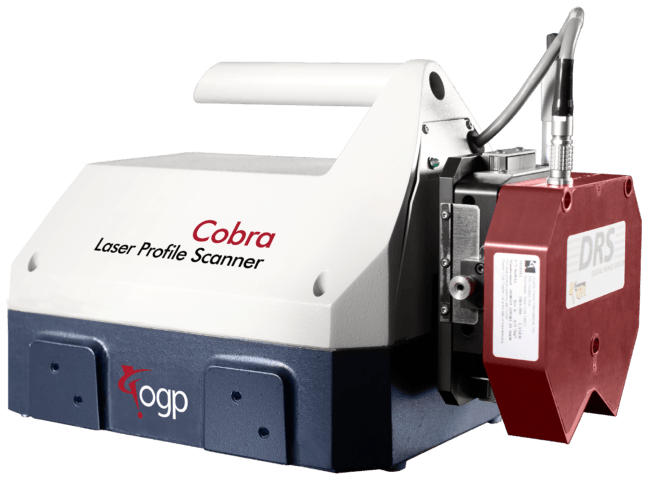

Cobra™ 2D is a portable laser scanning system that provides high resolution linear profiles. Because Cobra uses low power laser light, it is ideal for fragile or pliable parts that have critical surface contours. Cobra is quick and allows easy measurement of height, length, slope, and radius. Cobra 2D measures surface height while scanning along its Y-axis

Accurate surface profiles – Cobra™ provides accurate surface height information as its lowpower laser scans over a surface

Selectable laser sensors – Available DRS™ lasers offer a range of resolutions and standoff distances to satisfy a variety of applications

Real-Time Imaging – Optional video camera for on-axis imaging of the part being measured. See the laser spot pass over the surface of the part as it is measured. On-axis LED surface illumination under 15x magnification for perfect image contrast, adjustable through Scan-X

Technical Data

Scan Length & Z-axis Adjustment Range

Standard

Scan length – X-axis NA, Y-axis 50 mm
Z-axis adjustment range – 50 mm

Laser Scanning Resolution

Standard

0.125 µm

Scanning Speed

Standard

5 mm / sec. at 30 µm spacing on a specular surface

Software

Sensors & Accessories

Laser Sensors
DRS Lasers
