ShapeGrabber Ai820

Large capacity fully automated 3D laser scanning

Automated Inspection

Vertical and optional horizontal motion and a 360° rotary table for complete surface inspection

Multiple Scan Heads

Two scan heads can optionally be used to collect data in combination

Max Scan Volume (mm) Standard Vertical Axis

750 L x 415 Ø

More XYZ travel info >

Shapegrabber Ai820 is a floor model 3D scanner designed to serve a wide variety of parts in minutes with a high density of data points. Ai820 offers:

  • Metrology Grade 3D Scanning – Ideal for measuring complex shapes in a variety of colors, and finishes. Excels in rapid prototyping, manufacturing, quality control, and reverse engineering applications.
  • Ease of Use – Scans can be initiated with one click, delivering consistent measurement results by any operator. Scanning parameters are easily selected and saved – there is no need to write special code.
  • Accurate, High Density Point Data – SG408 scanheads can be fitted to the standard vertical measurement axis and an optional horizontal axis and can be used individually or in combination to collect data. Each scanhead can obtain more than 1,500,000 points per second.

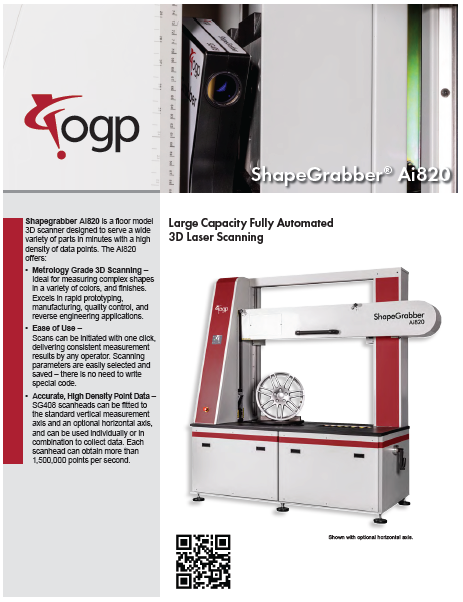

ShapeGrabber Ai820
Laser Scan Shown on ShapeGrabber Ai620

Technical Data

Max Scan Volume (mm)

Standard Vertical Axis

750 L x 415 Ø

Optional Horizontal Axis

1200 x 355 x 415 mm

Data Rate (pts/s)

Standard

155,000 – 1,500,000+

Scanheads
