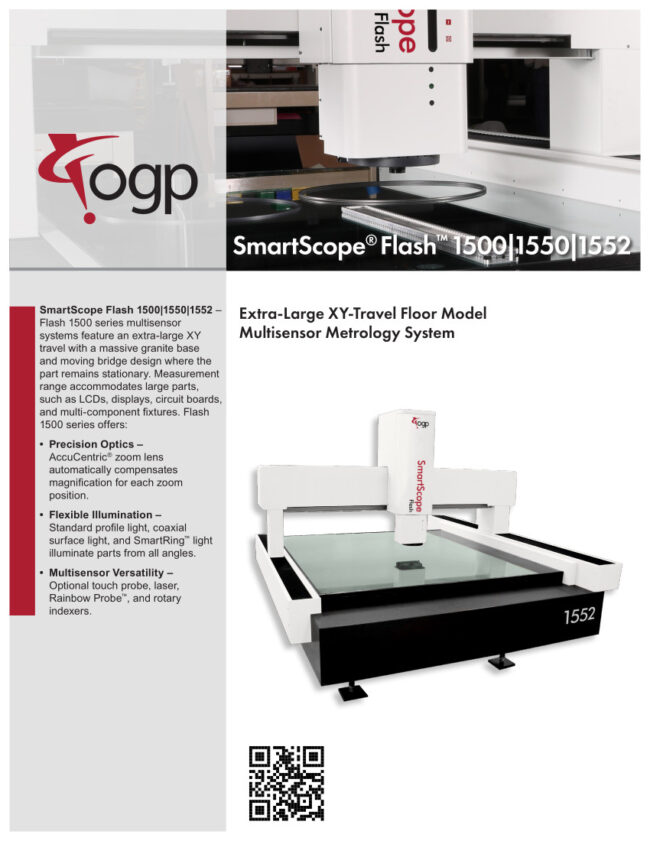

SmartScope Flash 1550 | 1552

Extra-large XY-travel 3D multisensor measurement system

Open Work Area

Optics mounted on a moving bridge — part remains stationary and easily accessible

Precision Optics

High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

XYZ Travel (mm) Standard

1550: 1240 x 1500 x 200
1552: 1500 x 1500 x 200

More XYZ travel info >

SmartScope® Flash™ 1550 | 1552 is a floor model 3D multisensor measurement machine with an extended X axis where the instrument head moves in the X axis across a steel bridge while the entire bridge moves on parallel tracks in the Y axis. The large measurement range of the Flash 1550 accommodates large parts, such as LCDs, plasma displays, circuit boards, and multi-component fixtures.
Open work area – Optics mounted on a moving bridge — part remains stationary and easily accessible

Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position

Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement

Multisensor versatility – Optional touch probe and laser sensors

Technical Data

XYZ Travel (mm)

Standard

1550: 1240 x 1500 x 200
1552: 1500 x 1500 x 200

Optional

1550 or 1552: Extended Y axis, 1800 or 2000

Optics

Standard

AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional

Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

Illumination

Standard

LED numerical aperture matching substage, LED coaxial TTL surface, 8 sector / 8 ring SmartRing™ LED (white)

Optional

Flexible SmartRing light for long working distance optical configurations
Red or green SmartRing light
