SmartScope ZIP 800

Large Travel Multisensor Measurement System

Optical Versatility

Numerous lens and lighting options to solve a range of applications

Designed-In Accuracy

Solid granite bridge design yields extremely accurate results

XYZ Travel (mm) Standard

800 x 820 x 200

More XYZ travel info >

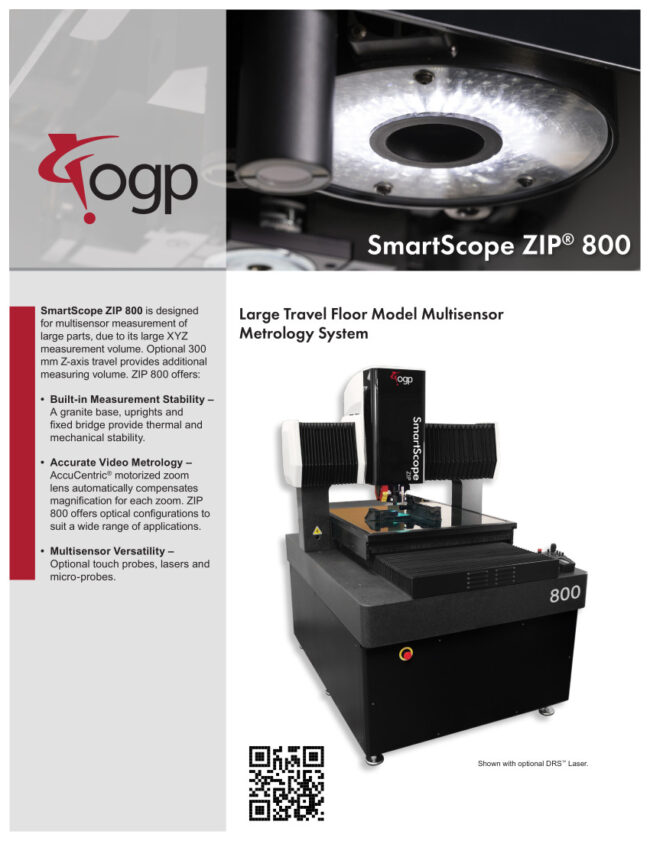

SmartScope ZIP® 800 is a floor model metrology system offering multisensor measurement of large parts, due to its large XYZ measurement volume. Measurement stability is built-in with ZIP 800, since its granite base and bridge provide a rigid, orthogonal base for accurate measurements. SmartScope ZIP 800 is also available with an optional 300 mm of Z-axis travel. ZIP 800 also offers:

Accurate Video Metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position

Built-in Measurement Stability – A granite base and bridge provide a rigid, orthogonal structure for measurement stability

Measure Large Parts – Large measurement volume

Multisensor Versatility – Optional non-contact sensors, touch probes, and micro-probes

Technical Data

XYZ Travel (mm)

Standard

800 x 820 x 200

Optional

Extended Z axis, 300

Optics

Standard

AccuCentric® auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional

Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

Illumination

Standard

Substage LED profile (green), coaxial LED surface (white), SmartRing LED ring light (white)

Optional

High performance all green LED illumination, tungsten illumination for coaxial and ring light, infrared illumination for coaxial and ring light
Ring lights: VuLight™ with multiple angles of incidence; Fiber Optic Ring mounted below, integrated with, or in lieu of SmartRing light
