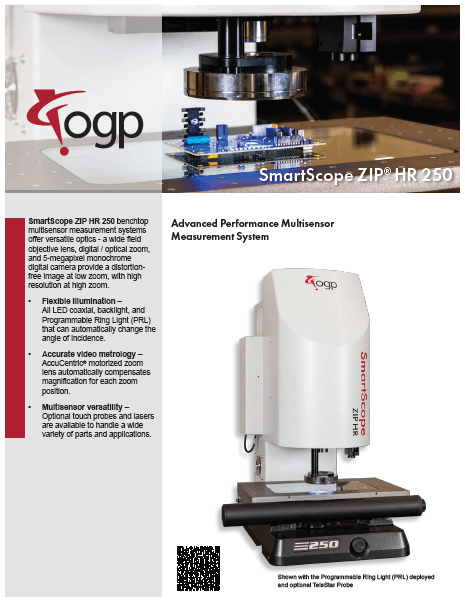

SmartScope ZIP HR 250

Advanced Performance Multisensor Measurement System

Reliable & Precise

Heavy-duty cast base and integral compound stage with Y-axis center drive for stability

Flexible Illumination

PRL allows for automatic change of angle of incidence

XYZ Travel (mm) Standard

North America: 300 x 150 x 200
International: 250 x 150 x 200

More XYZ travel info >

SmartScope ZIP® HR 250 combines a wide field objective lens, digital zoom, and 5-megapixel monochrome digital camera, providing a distortion-free image at low zoom, with high resolution at high zoom.

ZIP HR 250 features a 5.5X zoom optical system with up to 60:1 digital/optical magnification. The AccuCentric® auto-compensates the optics after every magnification change.

All green LED coaxial, substage profile, and Programmable Ring Light (PRL) illumination is standard.

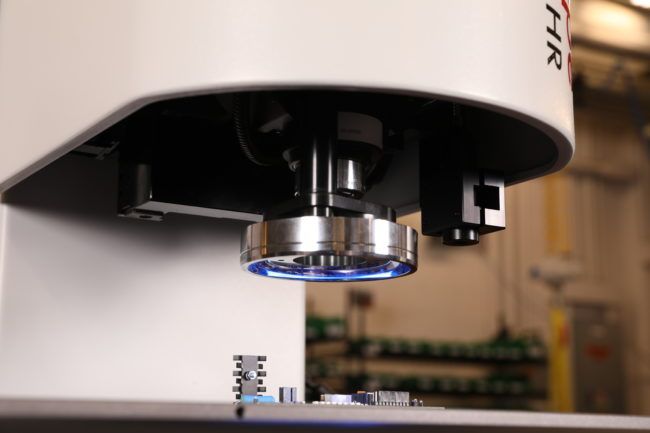

In addition to programmable intensity and direction of illumination, the PRL offers the ability to automatically change the angle of incidence.

ZONE3® is the exclusive metrology software on SmartScope ZIP HR systems.

Optional multicolor (R/G/B) PRL with motorized angle of incidence adjustment

Technical Data

XYZ Travel (mm)

Standard

North America: 300 x 150 x 200
International: 250 x 150 x 200

Optional

International: Extended X axis, 300

Optics

Standard

AccuCentric® auto-compensating motorized optical zoom; digital zoom; 1X and 2X interchangeable objective lenses

Optional

Focus Grid Projector: LED source
Laser Adapter: Allows for field retrofit of TTL laser. Includes Laser Pointer
Replacement Lens: 5X

Illumination

Standard

Substage LED profile (green), coaxial LED surface (green), PRL with motorized angle of incidence adjustment (green)

Optional

Multicolor (R/G/B) PRL with motorized angle of incidence adjustment,
SmartRing LED ring light in lieu of PRL,
Tungsten Fiber-Optic ring light mounted below SmartRing light (for use with 2X and 5X lens only)

Software
